SIP WELDMATE® PRO 200A DV ARC/TIG Inverter Welder

05691

SIP WELDMATE® PRO 200A DV ARC/TIG Inverter WelderSIP WELDMATE® PRO 200A DV ARC/TIG Inverter WelderSIP WELDMATE® PRO 200A DV ARC/TIG Inverter WelderSIP WELDMATE® PRO 200A DV ARC/TIG Inverter WelderSIP WELDMATE® PRO 200A DV ARC/TIG Inverter WelderSIP WELDMATE® PRO 200A DV ARC/TIG Inverter WelderSIP WELDMATE® PRO 200A DV ARC/TIG Inverter WelderSIP WELDMATE® PRO 200A DV ARC/TIG Inverter WelderSIP WELDMATE® PRO 200A DV ARC/TIG Inverter WelderSIP WELDMATE® PRO 200A DV ARC/TIG Inverter WelderSIP WELDMATE® PRO 200A DV ARC/TIG Inverter WelderSIP WELDMATE® PRO 200A DV ARC/TIG Inverter WelderSIP WELDMATE® PRO 200A DV ARC/TIG Inverter WelderSIP WELDMATE® PRO 200A DV ARC/TIG Inverter WelderSIP WELDMATE® PRO 200A DV ARC/TIG Inverter WelderSIP WELDMATE® PRO 200A DV ARC/TIG Inverter Welder
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.

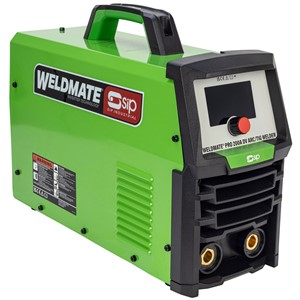

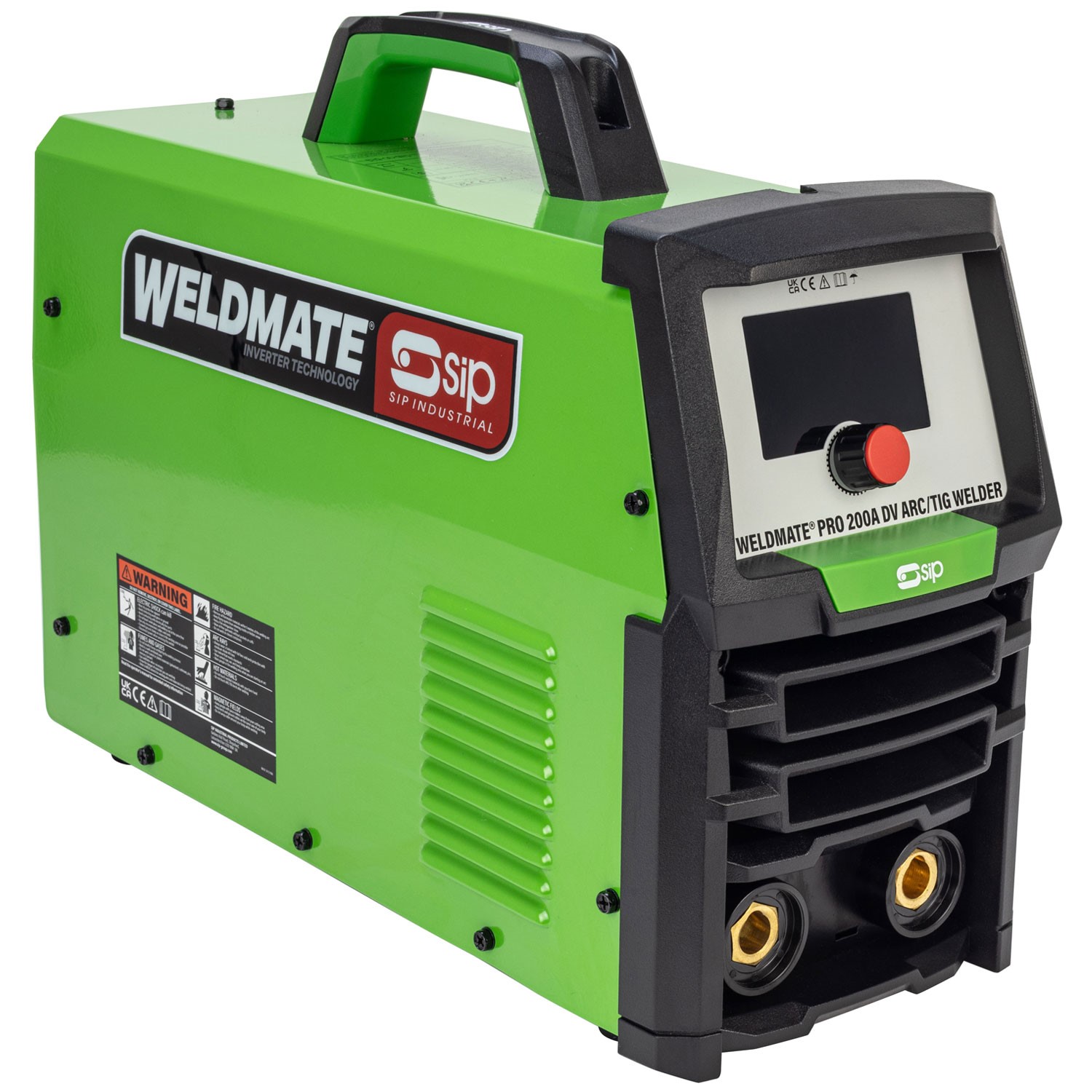

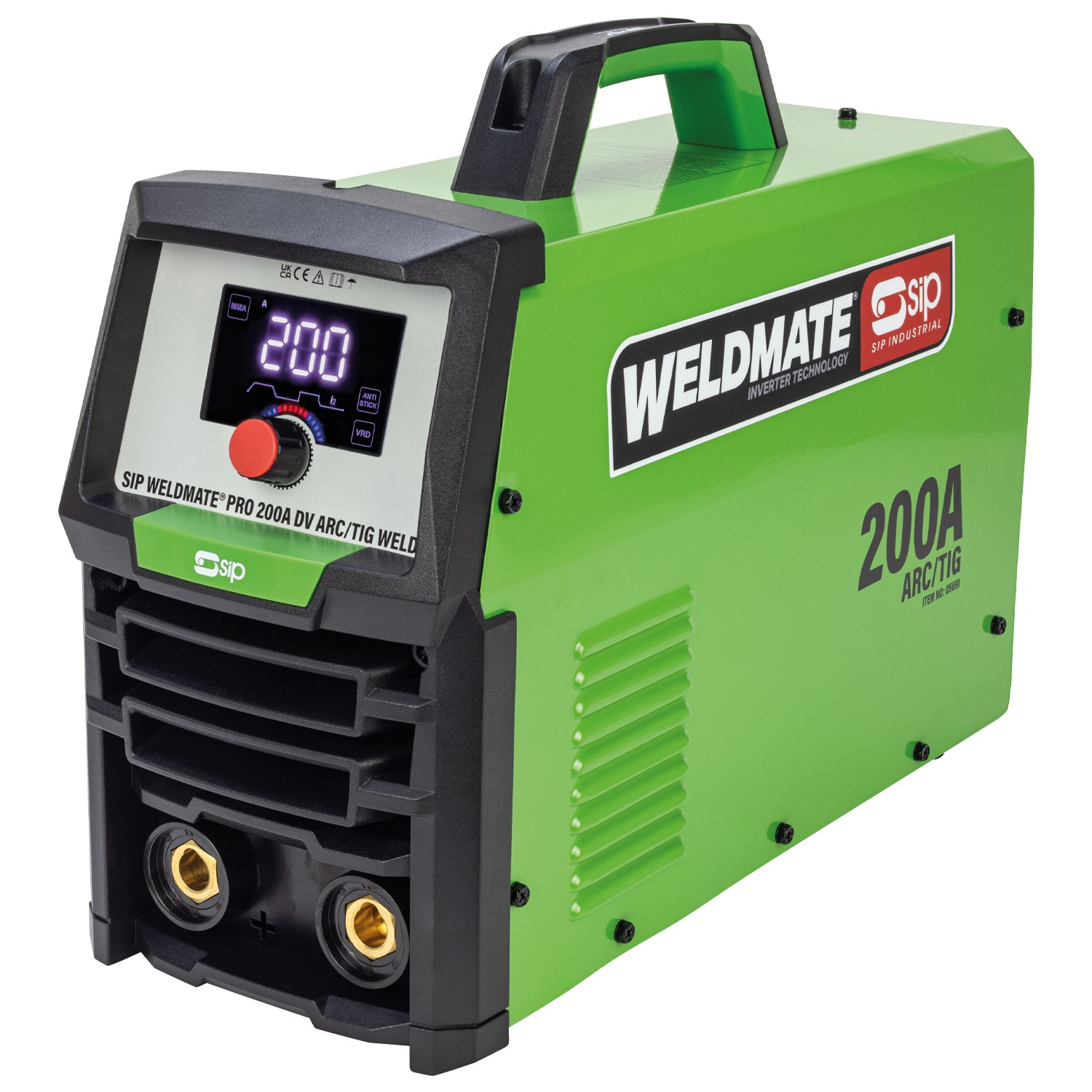

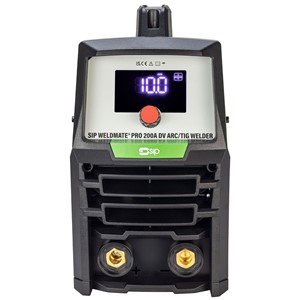

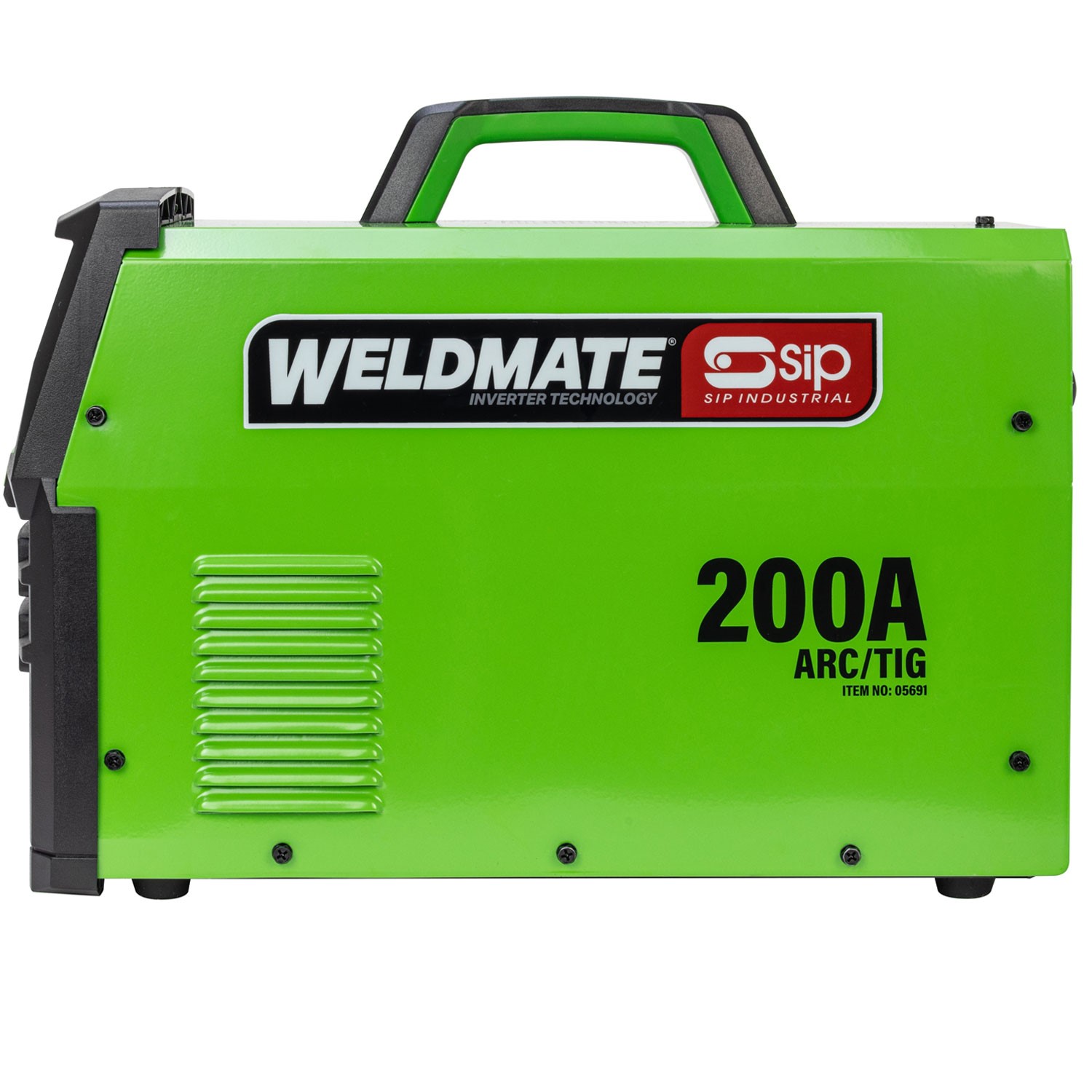

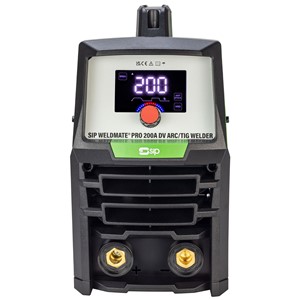

The SIP WELDMATE® PRO 200A DV ARC/TIG Inverter Welder is a dual process inverter welder with dual voltage functionality. Ideal for use in professional fabrication workshops and onsite environments, this welder can be powered from either a 230v/16A or 110v/16A supply.

Powerful, compact and lightweight, this inverter welder also features Synergic Control which adjusts the welding current output according to the electrode diameter or welding material thickness selected for optimal penetration and bead formation.

Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.

KEY FEATURES

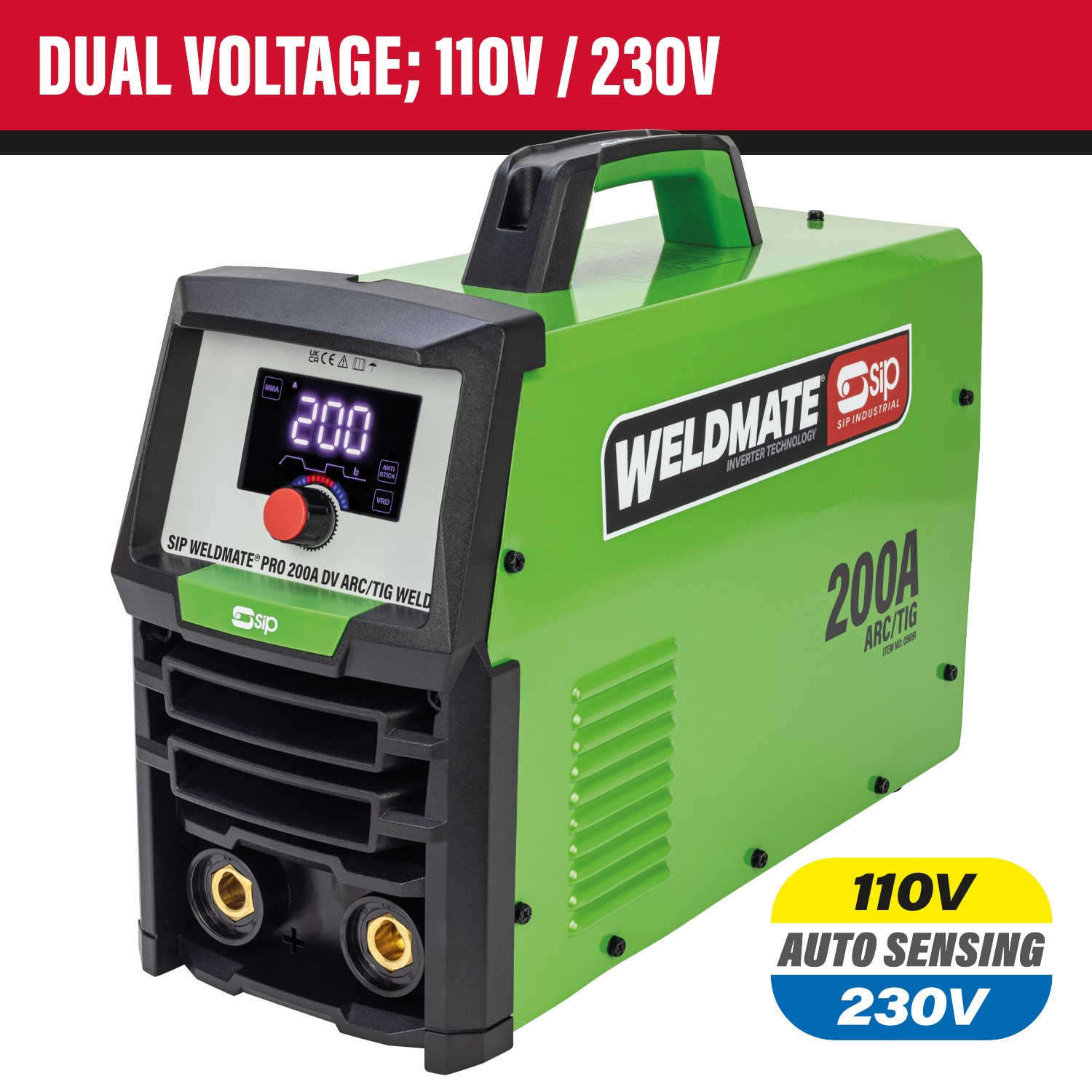

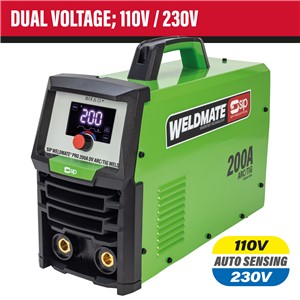

  •  Dual process ARC/TIG welder with 230v and 110v supply outputs
  •  Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)

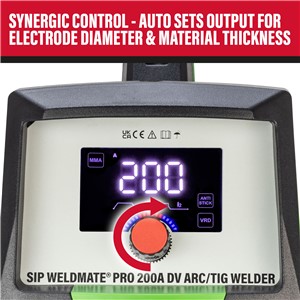

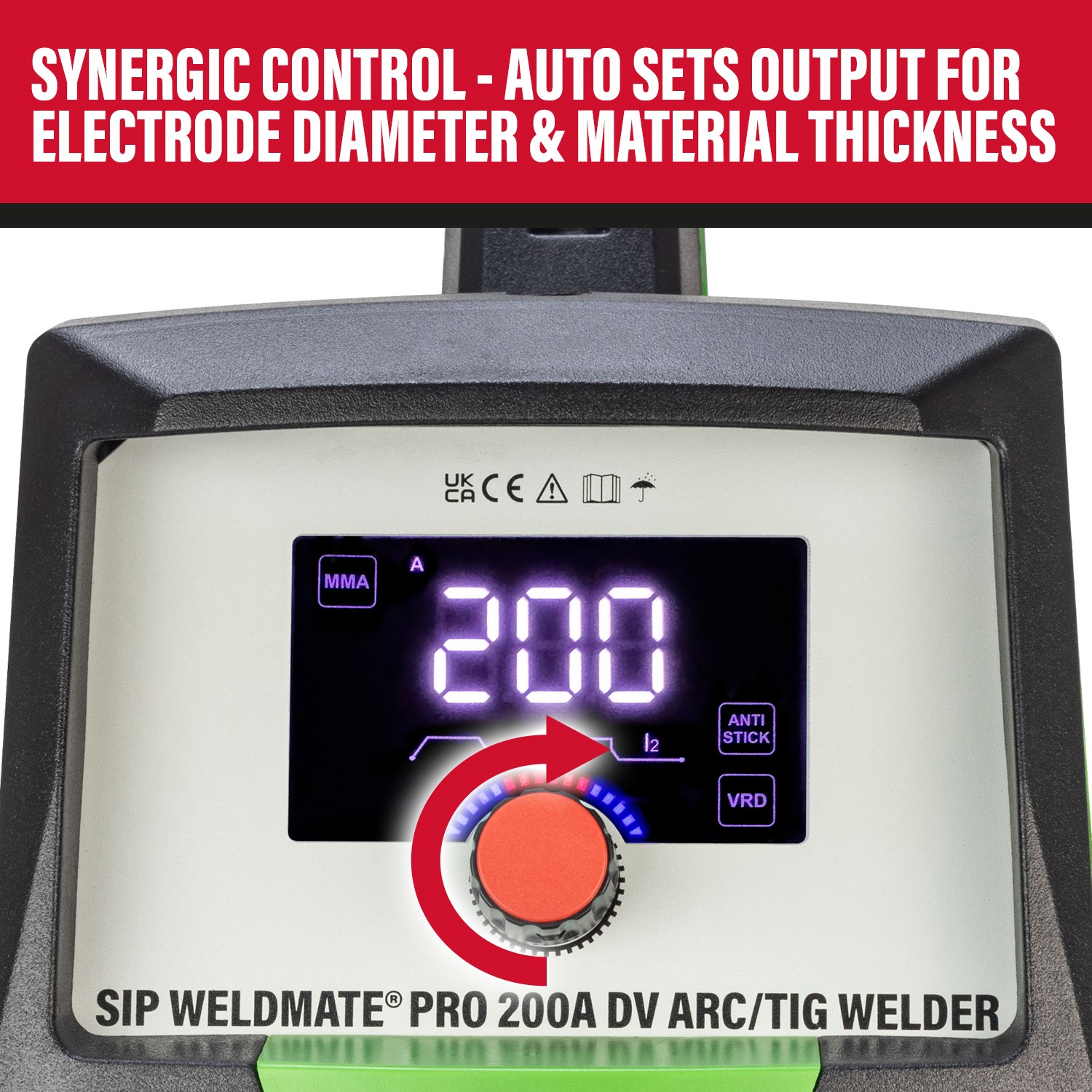

  •  Synergic control auto sets output for electrode diameter and material thickness
  •  Infinitely variable dial offers a smoother stepless output adjustment

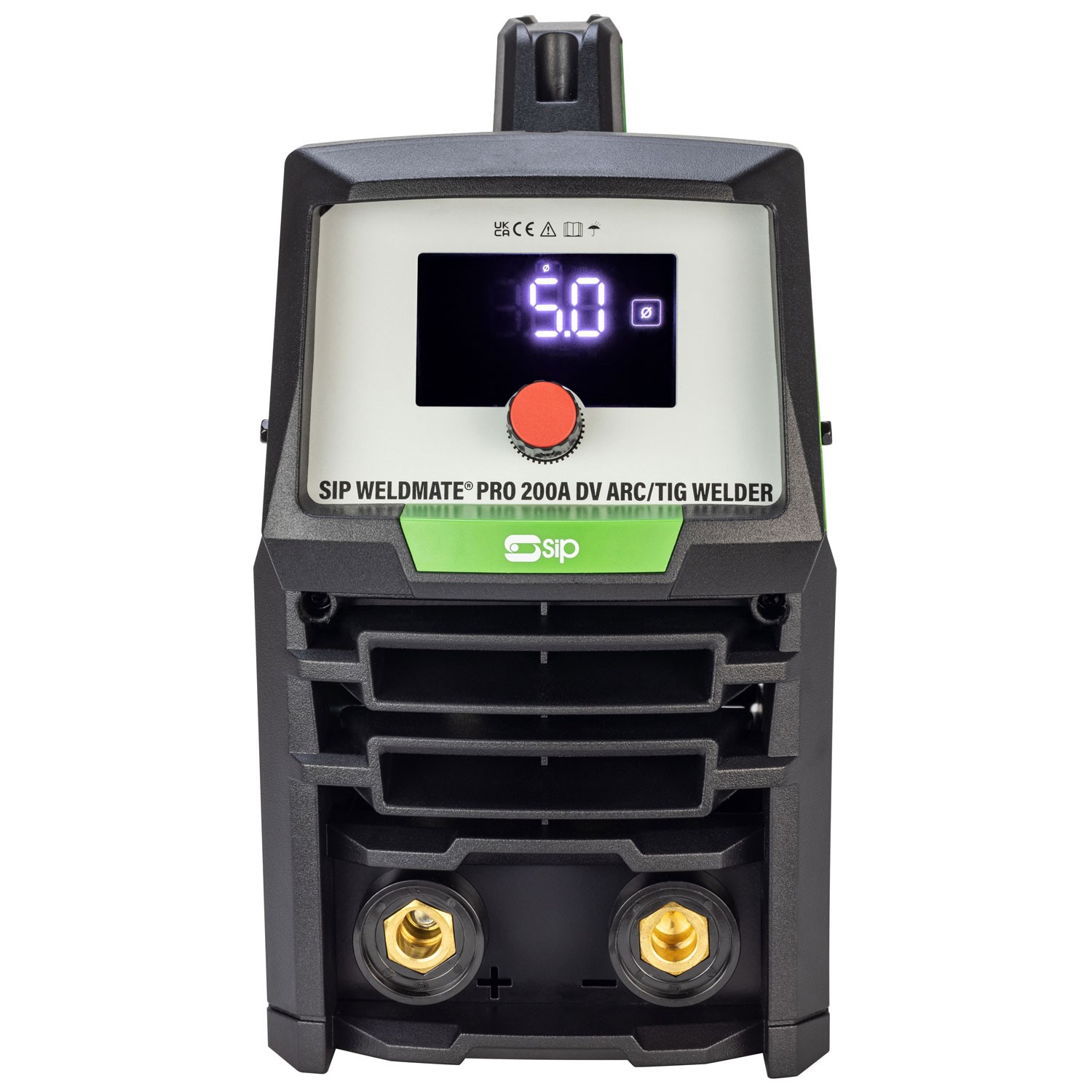

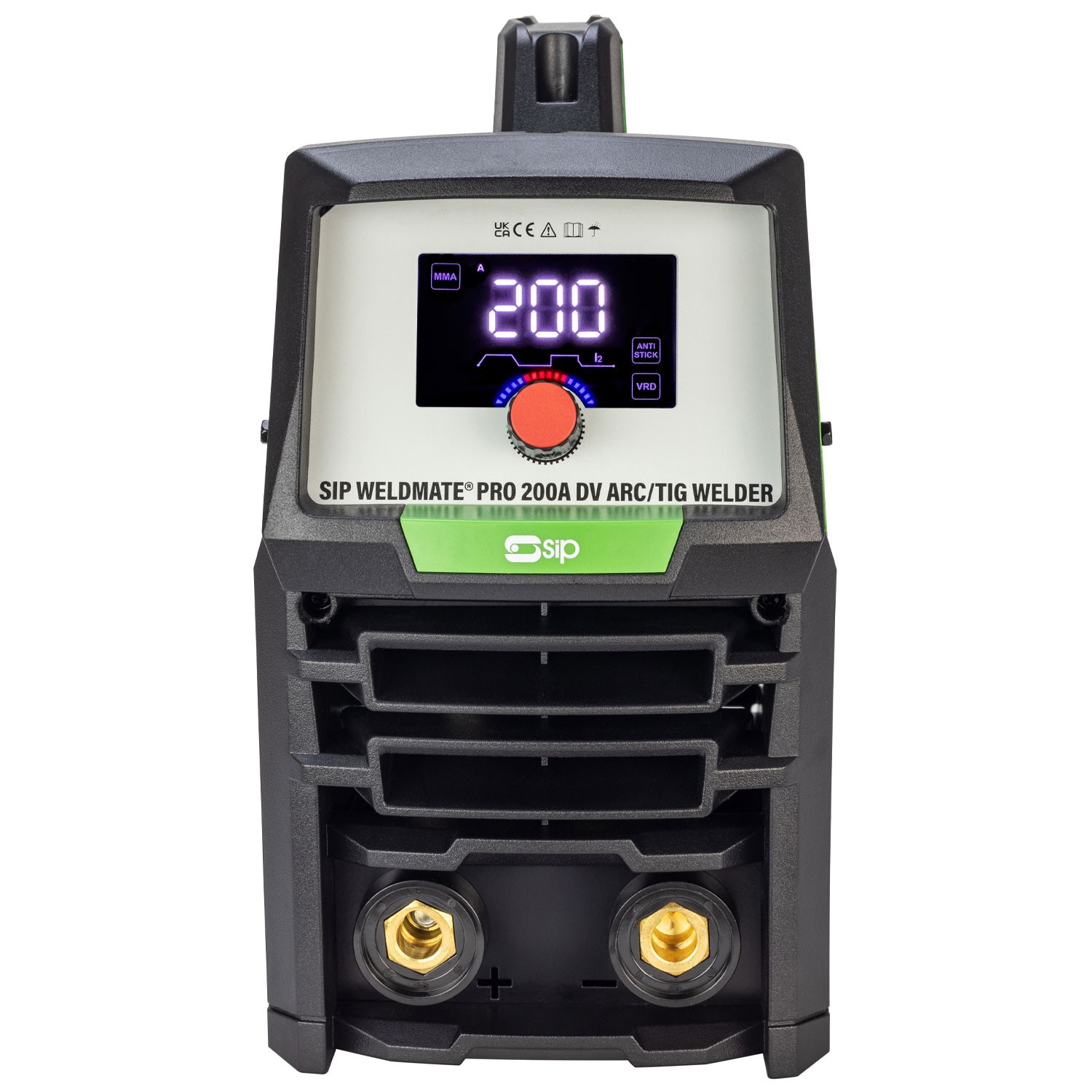

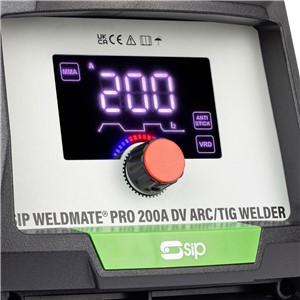

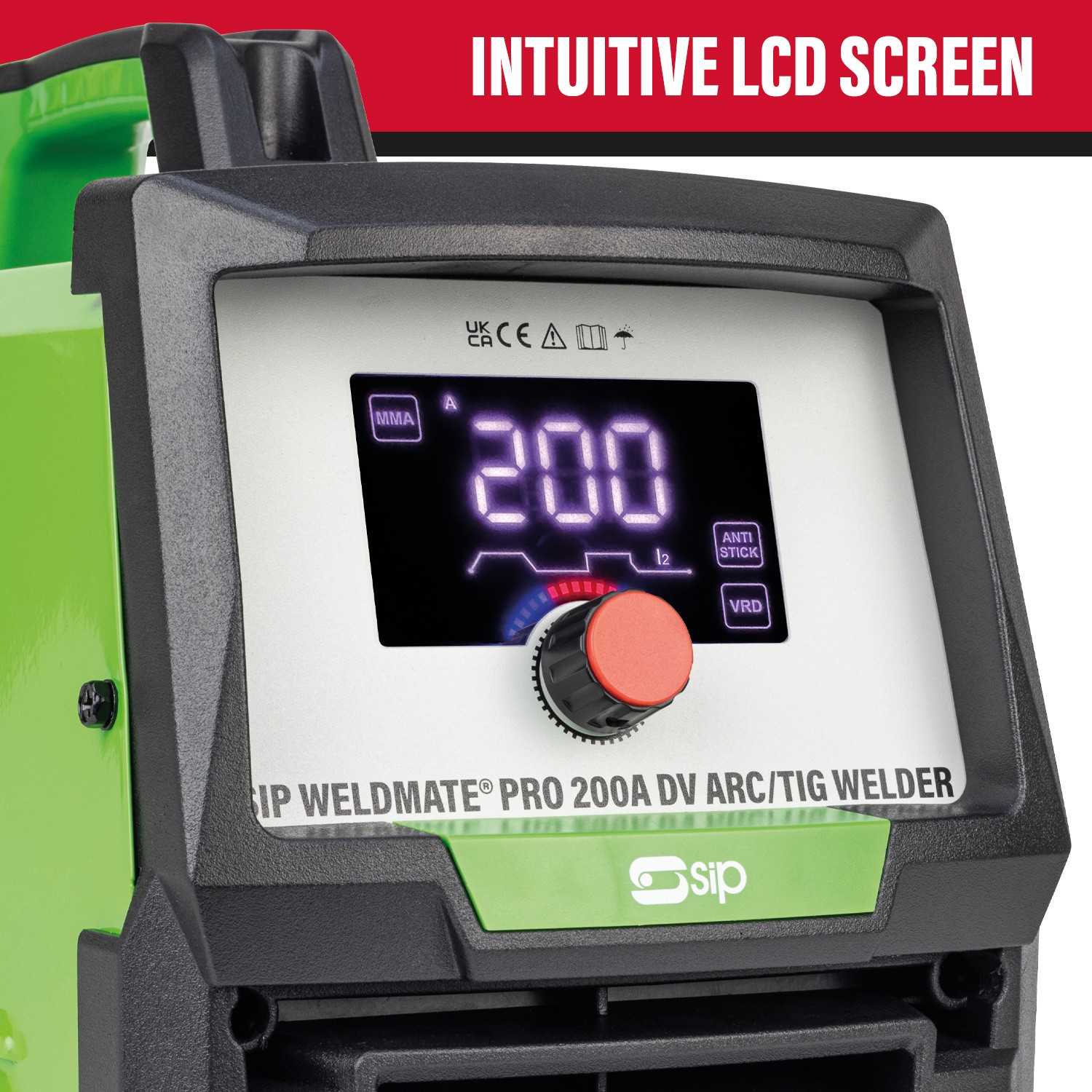

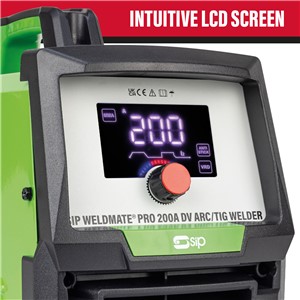

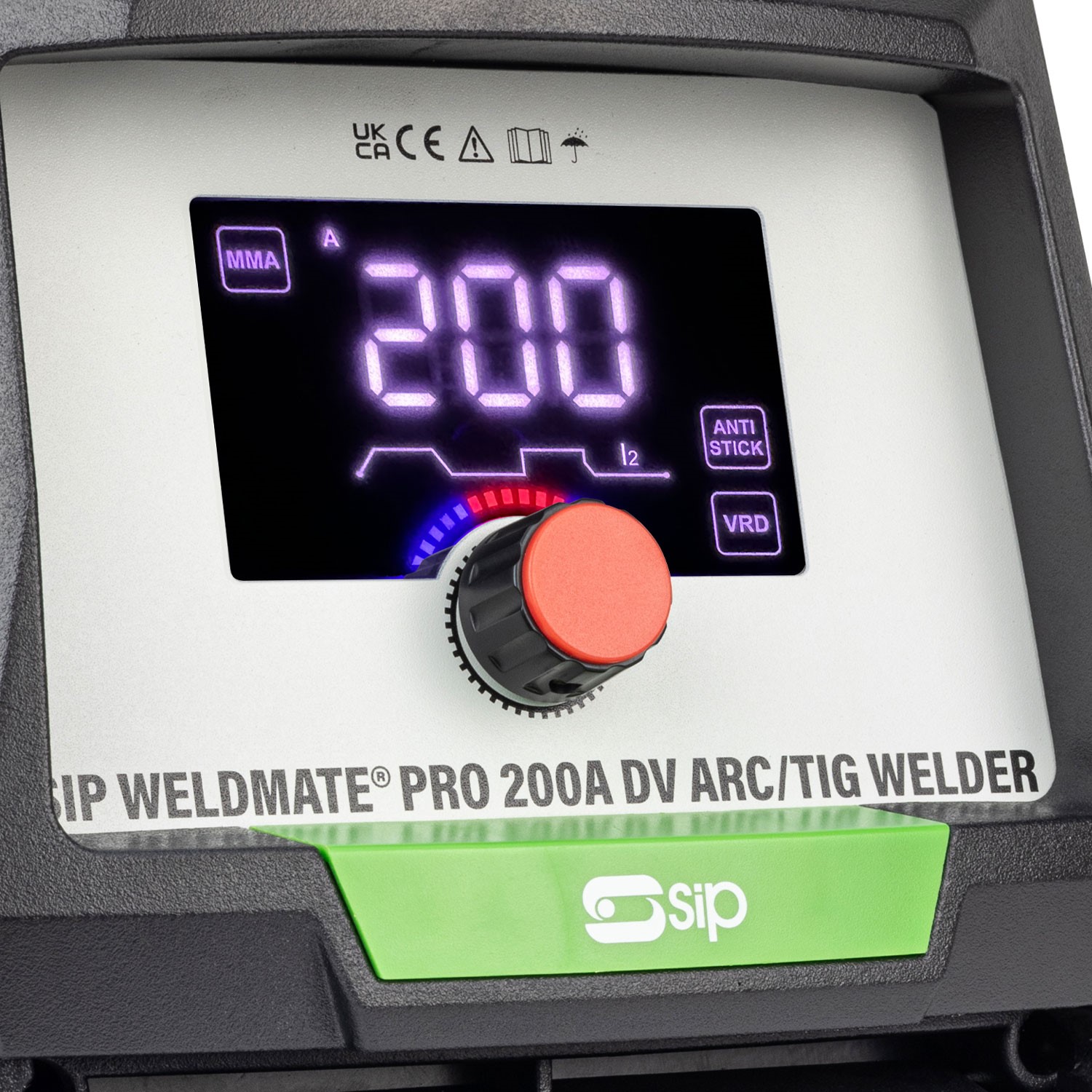

  •  Intuitive LCD screen for setting output and selecting welding functions

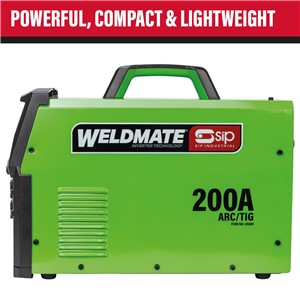

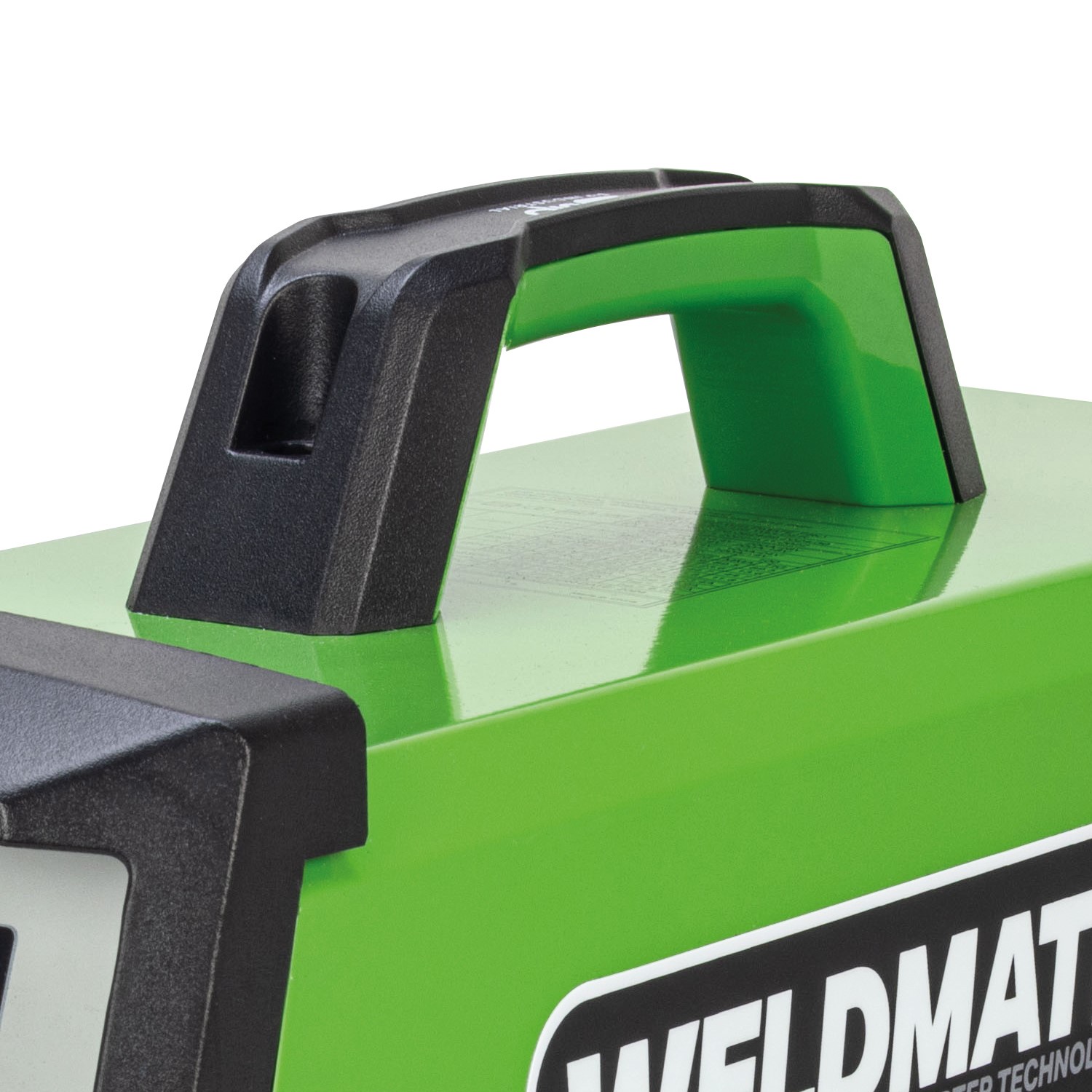

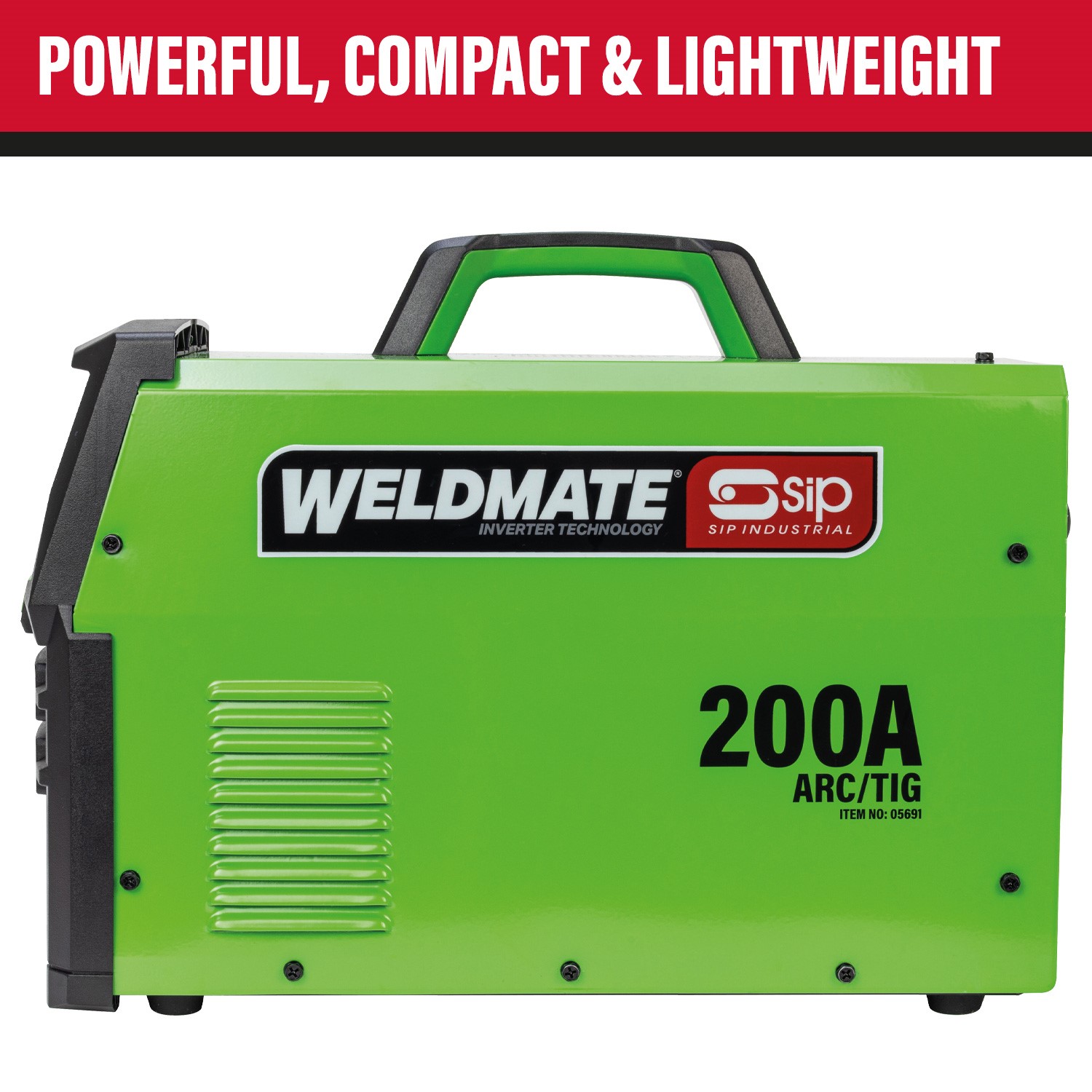

  •  Compact and lightweight design for easy work area movement

   SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP WELDMATE® PRO 200A DV ARC/TIG Inverter Welder is a dual process inverter welder with dual voltage functionality. Ideal for use in professional fabrication workshops and onsite environments, this welder can be powered from either a 230v/16A or 110v/16A supply.

Powerful, compact and lightweight, this inverter welder also features Synergic Control which adjusts the welding current output according to the electrode diameter or welding material thickness selected for optimal penetration and bead formation.

Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.

Applications & uses: Ideal for use in professional fabrication workshops and onsite environments. Suitable for ARC/TIG welding. Ideal for mild steel, stainless steels and dissimilar steels.

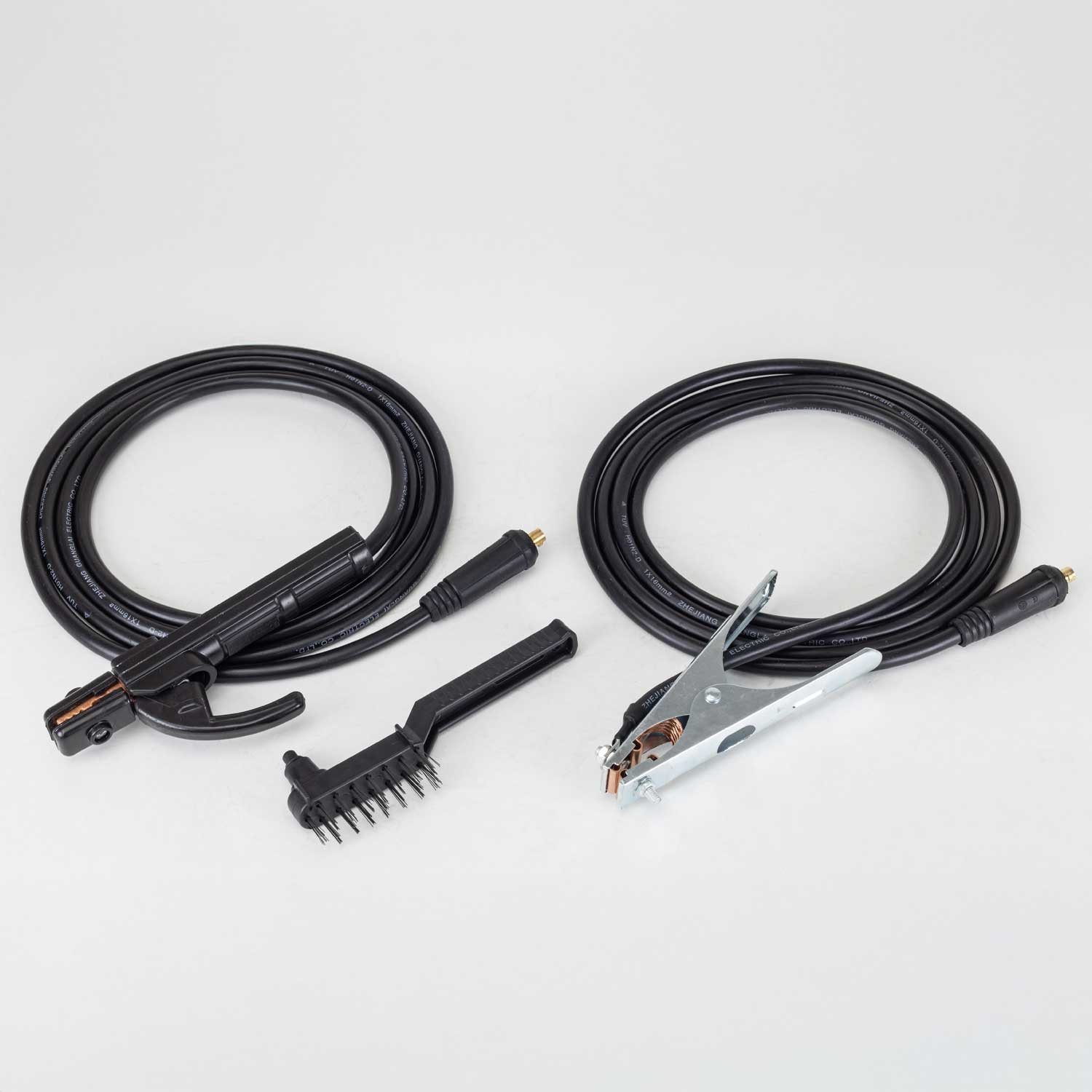

What's in the box?: 1x SIP WELDMATE® PRO 200A DV ARC/TIG Inverter Welder (230v/16A, 110v/16A), 1x 3mtr electrode lead, 1x 3mtr earth lead, 1x welding hammer/brush. TIG torch sold separately (Item 08206A recommended).

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification 2



COMES WITH A 2 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL SIP MACHINES!

SIP products offer exceptional durability, reliability, and heavy-duty performance. All of our machines are underpinned by the SIP 2-Year Standard Silver Warranty*. In addition to this, we offer a service-based Gold Warranty that extends your cover for a further 2 years when purchased.

All SIP Premium Partner Brands offer comprehensive warranties of their own!

*Excludes accessories and consumables.

FIND OUT MORE

Technical Information

ITEM NO. 05691
Input Supply: 230v (16A) / 110v (16A)
Welding Process: ARC TIG
230v 110v 230v 110v
Output Current: 10A - 200A 10A - 100A 10A - 200A 10A - 100A
Output Voltage: 20.4v - 28v 20.4v - 24v 20.4v - 28v 20.4v - 24v
Duty Cycle @ 20°C: 200A @ 40% 100A @ 20% 200A @ 40% 100A @ 20%
Welding Material Thickness: 1.5mm - 10.5mm (mild steel) (230v) / 1.5mm - 5.5mm (mild steel) (110v)
Protection / Insulation F
Net Weight: 8.2kg
Gross Weight: 9.5kg
Product Dimensions: 310(H) x 170(W) x 410mm(D)
Packaged Dimensions: 380(H) x 290(W) x 460mm(D)
