SIP Pneumatic Coil Spring Compressor

03661

SIP Pneumatic Coil Spring Compressor03661SIP Pneumatic Coil Spring CompressorSIP Pneumatic Coil Spring CompressorSIP Pneumatic Coil Spring CompressorSIP Pneumatic Coil Spring Compressor
03661
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.

The SIP Pneumatic Coil Spring Compressor prioritises operator safety first and foremost, incorporating a selection of robust and reliable safety components to ensure minimal risk of harm should a coil spring become dislodged or damaged while under load.

Increased user safety does not compromise the powerful 2400kg compression achieved by its dual pneumatic rams. This compressor is perfect for garages and workshops.

KEY FEATURES

  •  Powerful 2400kg compression via dual pneumatic rams
  •  Triple bar safety cage; no operation without locked cage
  •  Retention cable with steel carabiners for added safety
  •  Patented coil spring claw designs for secure holding
  •  Movable footplate for robust contact under spring
  •  Ideal for cars, SUVs, vans and smaller vehicles

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP Pneumatic Coil Spring Compressor prioritises user safety first and foremost, incorporating a selection of robust and reliable safety components to ensure minimal risk of harm should a coil spring become dislodged or damaged while under load.

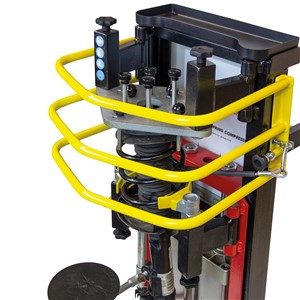

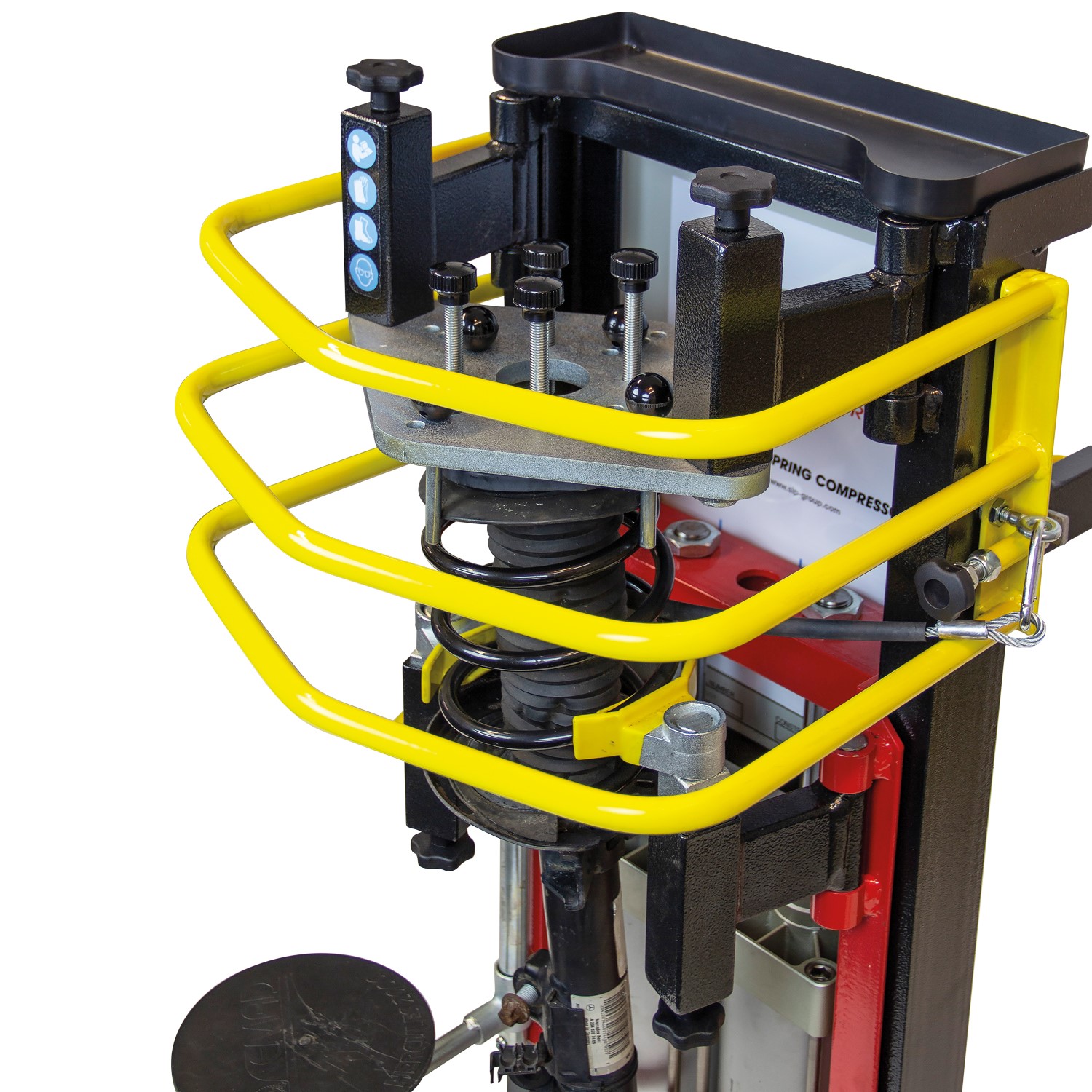

A heavy-duty triple bar safety cage can be lowered and locked into position. Without the safety cage put down into place, this spring compressor will not operate.

As an added layer of security around the spring, the frame of the compressor is built with a retention cable and steel carabiners which can be hooked into place.

The combination of patented coil spring claws and a movable footplate underneath the spring provide secure and reliable load contact before, during and after compression.

These safety features do not compromise the powerful 2400kg spring compression this compressor can offer, which is achieved by dual integrated pneumatic rams.

Perfect for garages and workshops, and suitable for a variety of cars, SUVs and vans.

  • Powerful 2400kg compression via dual heavy-duty pneumatic rams
  • No operation until triple bar safety cage is locked and lowered
  • Retention cable with steel carabiners for added layer of safety
  • Patented coil spring claw designs for secure spring load contact
  • Movable footplate for improved contact underneath coil spring

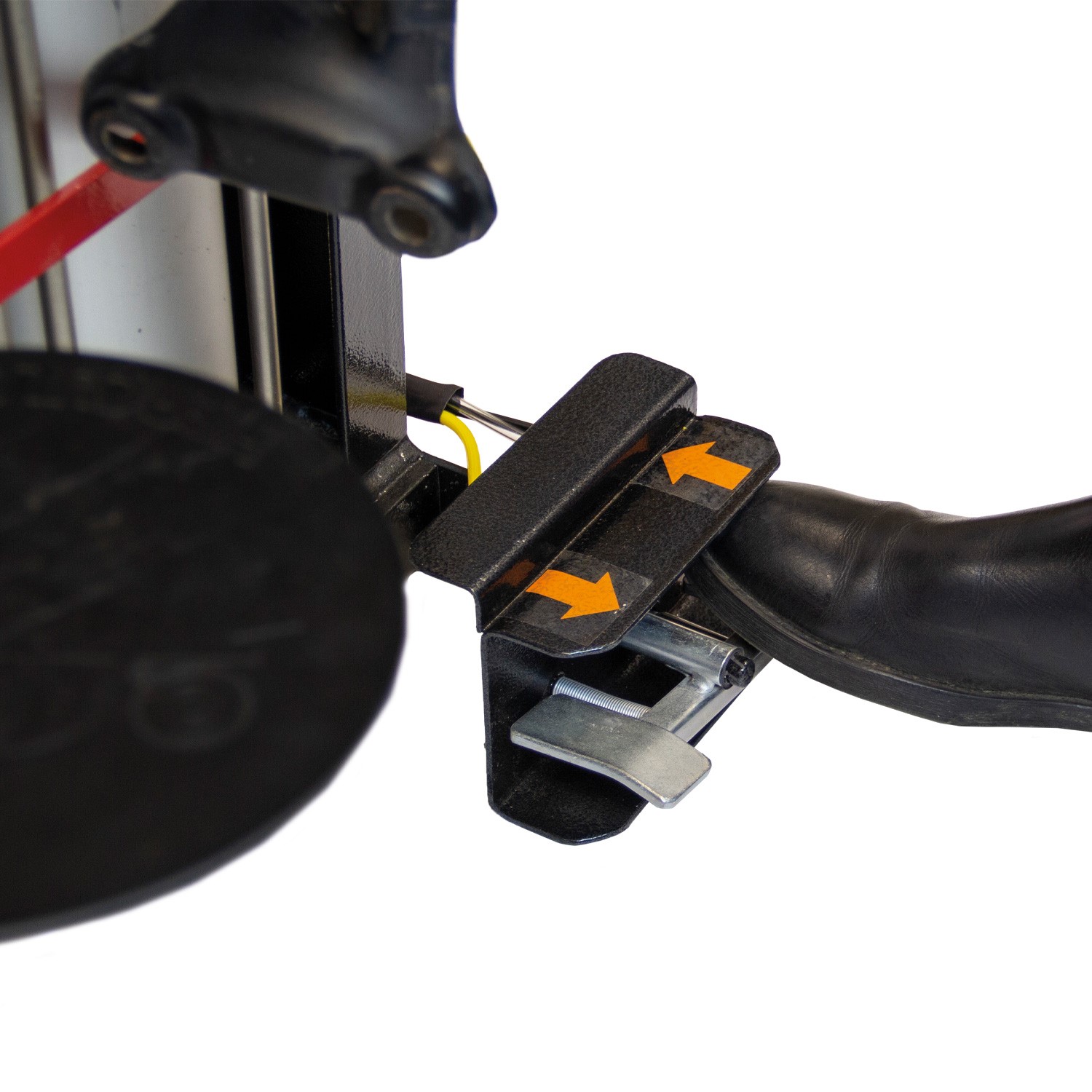

  • Integrated foot pedal for simple and easy compression
  • Perfect for cars, SUVs, vans, and other small vehicles
  • SIP 2-Year Standard Silver Warranty
  • Manufactured in Italy

Product Video



Technical Information

ITEM NO. 03661
Max. Compression: 2400kg (5291lb)
Air Inlet Pressure: 73psi (5bar) - 145psi (10bar)
Air Inlet: 1/4" BSP (Female)
Net Weight: 66.50kg
Gross Weight: 70.00kg
Product Dimensions:
Packaged Dimensions: 300(H) x 540(W) x 1330mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE

Warranty Information



COMES WITH A 2 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL SIP MACHINES!

SIP products offer exceptional durability, reliability, and heavy-duty performance. All of our machines are underpinned by the SIP 2-Year Standard Silver Warranty*. In addition to this, we offer a service-based Gold Warranty that extends your cover for a further 2 years when purchased.

All SIP Premium Partner Brands offer comprehensive warranties of their own!

*Excludes accessories and consumables.
