SIP ISBD15/500 Industrial Electric Compressor

06297

Click on image to enlarge

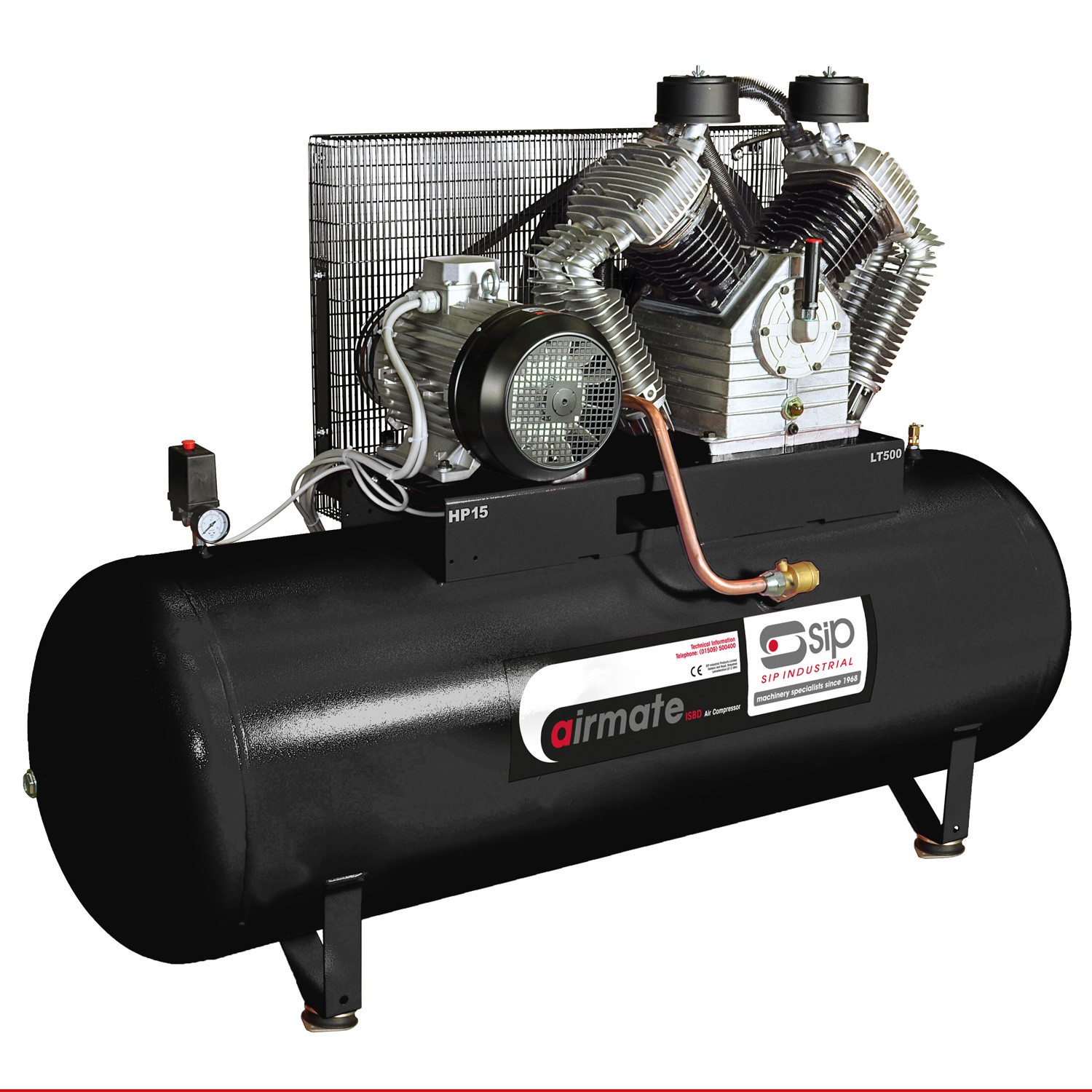

SIP ISBD15/500 Industrial Electric Compressor

06297

The SIP ISBD15/500 500ltr Industrial Electric Compressor is a powerful belt-driven workhorse compressor built to last and designed for consistently high performance plus superior compressed air production. Fitted with large interstage coolers, this compressor provides cooler air ideal for a variety of demanding environments.

A must-have premium compressor for heavy-duty industrial applications.

KEY FEATURES

Oil-lubricated industrial-grade belt-driven compressor
Smooth V-Twin pump for optimum efficiency and performance
Large interstage coolers for cooler air and reduced moisture
Long-stroke cast iron cylinders for slower running and longer life
SIP 10-Year Anti-Corrosion Receiver Warranty

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP ISBD15/500 500ltr Industrial Electric Compressor is a powerful belt-driven workhorse compressor built for hard-wearing durability and designed for consistently high performance, plus superior compressed air production perfect for a large range of demanding industrial applications.

Large interstage coolers provide high-quality, cooler air with reduced moisture and better pump temperature control. Meanwhile, an industrial-grade 3-phase motor ensures heavy-duty operation at all times, as do the long-stroke cast iron cylinders.

Each ISBD15/500 Industrial Electric Compressor comes with an SIP 10-Year Anti-Corrosion Receiver Warranty as standard for added peace-of-mind.

Oil-lubricated belt-driven compressor with 400v 3-PHASE motor
Heavy-duty smooth V-Twin pump for optimum efficiency and performance
Large interstage coolers for high-quality, cooler air, reduced moisture and pump temperature control
Long-stroke cast iron cylinders for slower running and increased pump life
Robust valve plate with individual valves for efficient performance
Supplied with heavy-duty anti-vibration mounts
Star Delta starter reduces current during motor starting
SIP 10-Year Anti-Corrosion Receiver Warranty
SIP 2-Year Standard Silver Warranty
Manufactured in Italy

Technical Information

ITEM NO.	06297
Input Supply:	400v (32A) 3-PHASE
Motor Power:	15hp (11.2kW)
Receiver Size:	500ltr
Piston Displacement:	61.50CFM (1744ltr/min)
Free Air Delivery (FAD):	40.70CFM (1153ltr/min)
Max. Air Pressure:	160psi (11bar)
Working Speed:	1200rpm
No. of Cylinders:	4 cylinders
No. of Stages:	2 stages
Net Weight:	313.00kg
Gross Weight:	350.00kg
Product Dimensions:
Packaged Dimensions:	1680(H) x 2270(W) x 860mm(D)
