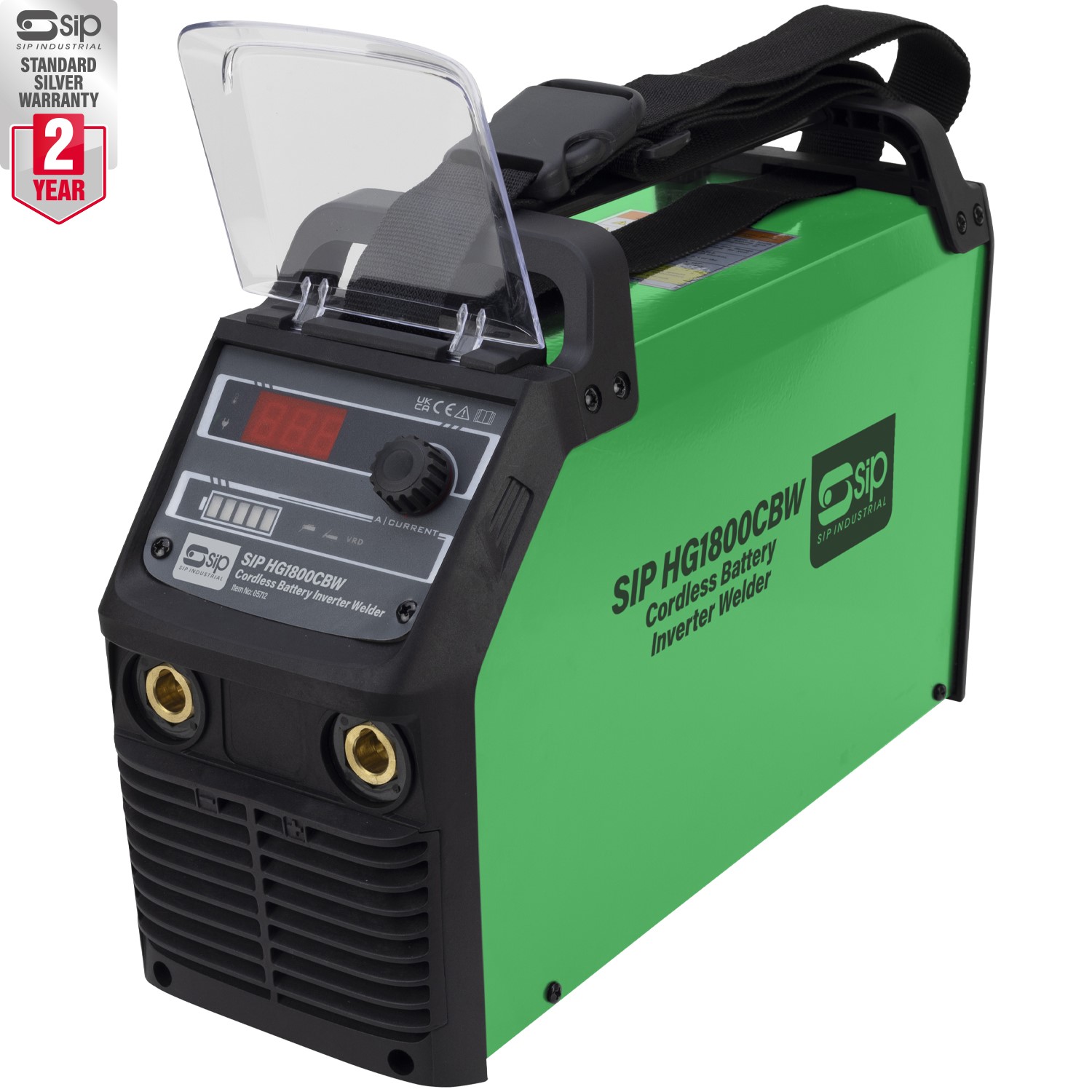

SIP HG1800CBW Battery-Powered Inverter Welder

05712

Click on image to enlarge

SIP HG1800CBW Battery-Powered Inverter Welder

05712

The SIP HG1800CBW Cordless Battery Inverter Welder provides portable and accurate welding wherever and whenever you need it, bringing both portability and performance through a lightweight and compact battery-powered design. Suitable for MMA (ARC) and TIG welding applications.

Perfect for welding in environments including on-site, construction and agricultural use where mains supplies are not available.

KEY FEATURES

3 modes for MMA (ARC), MMA (ARC) with VRD and Lift TIG welding
Easy-to-read digital display with power monitor and indicator
Latest inverter technology with integrated Lithium-Ion battery
Produces high-quality ARC and TIG welding for a single charge
Heavy-duty casing and display visor for high durability
Ideal for environments with no mains electrical supply

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP HG1800CBW Cordless Battery Inverter Welder provides portable and accurate welding wherever and whenever you need it, bringing both portability and performance through a lightweight and compact battery-powered design. Suitable for MMA (ARC) and TIG welding applications.

Perfect for welding in environments including on-site, construction and agricultural use where mains supplies are not available.

Supplied with 3mtr 25mm² electrode lead, Earth lead, and over-shoulder carry strap.

Applications & uses: Ideal for environments including on-site, construction and agriculture where mains supplies are not available.

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification 2

3 WELDING MODES

MMA (ARC), MMA (ARC) with VRD, and Lift TIG welding modes.

DIGITAL DISPLAY

Easy-to-read digital display with battery power monitor and indicator.

INVERTER TECHNOLOGY

Built with the latest inverter technology and Lithium-Ion battery pack.

QUALITY WELDING

High-quality ARC and TIG welds from a single charge.

HIGH DURABILITY

Manufactured with heavy-duty casing and visor.

COMPACT DESIGN

Lightweight for simple portability in demanding environments.

AUTONOMOUS WELDING

Welds 20x 2.5mm, 14x 3.2mm and 6x 4mm rods.

FAST CHARGING

Fully recharged in as a little as 1.5hrs.

Technical Information

ITEM NO.	05712
Battery Type:	Lithium-Ion* *Ensure a discharge/recharge cycle is performed every 3 months. Always keep welder battery above 50% charge when not in use.
Battery Capacity:	740Wh
Charger Voltage:	230v AC +/- 10%
Charging Time:	1.5hrs
Battery Output Voltage:	74v
Charging Current:	8A
Welding Current Range:	10A - 180A (MMA) / 10A - 150A (TIG)
Duty Cycle:	180A @ 10% / 130A @ 20% / 60A @ 100%
Net Weight:	11.60kg
Gross Weight:	13.00kg
Product Dimensions:	280(H) x 150(W) x 440mm(D)
Packaged Dimensions	450(H) x 280(W) x 550mm(D)

Welding Rod / Ø Electrode:	2.5mm x 300mm	3.2mm x 350mm	4mm x 450mm
Welding Capability (on full charge):	20 rods @ 85A	14 rods @ 115A	6 rods @ 160A
