SIP Bench Morticer

01942

Click on image to enlarge

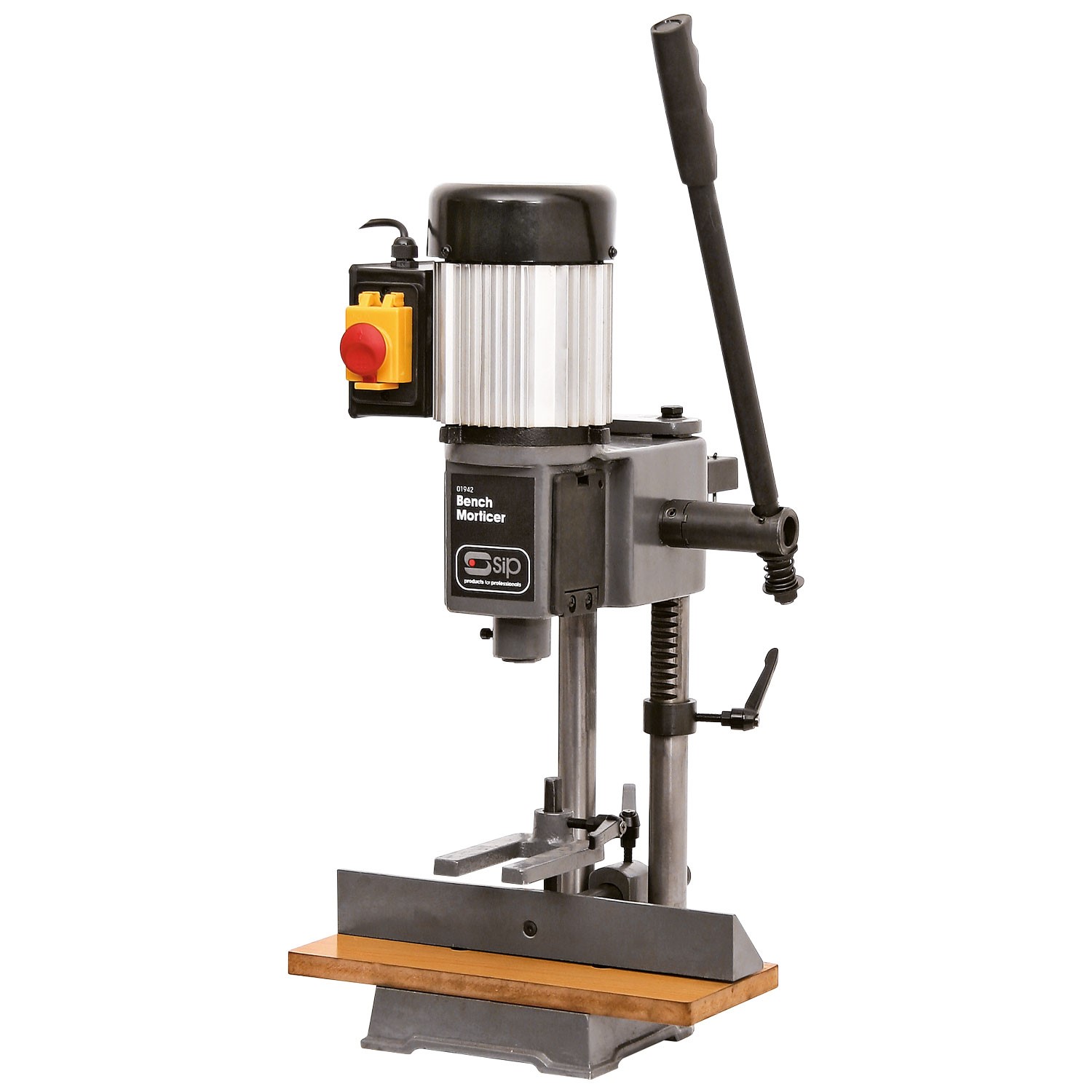

SIP Bench Morticer

01942

The SIP Bench Morticer can easily cut square or rectangular holes in a variety of timber, providing robust morticing performance but also doubling as a bench-mounted pillar drill, and utilises a heavy-duty clamp that keeps any and all workpieces secure.

Designed for home, trade, and professional woodwork applications.

KEY FEATURES

6mm (1/4") to 12mm (1/2") chisel capacity
76mm max. chisel stroke; 65mm chisel to fence
Built from heavy-duty cast iron for durability
Design doubles as a bench-mounted pillar drill

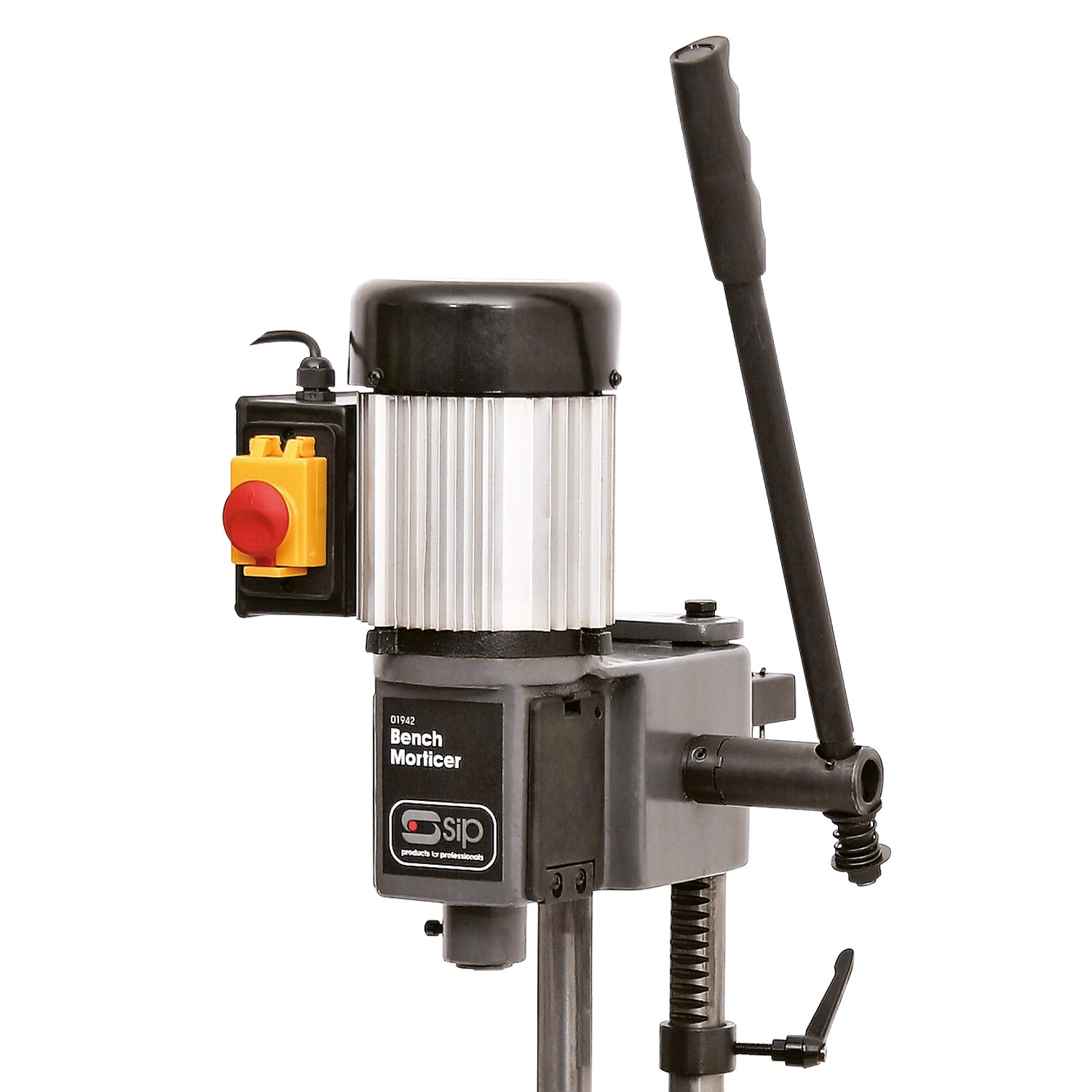

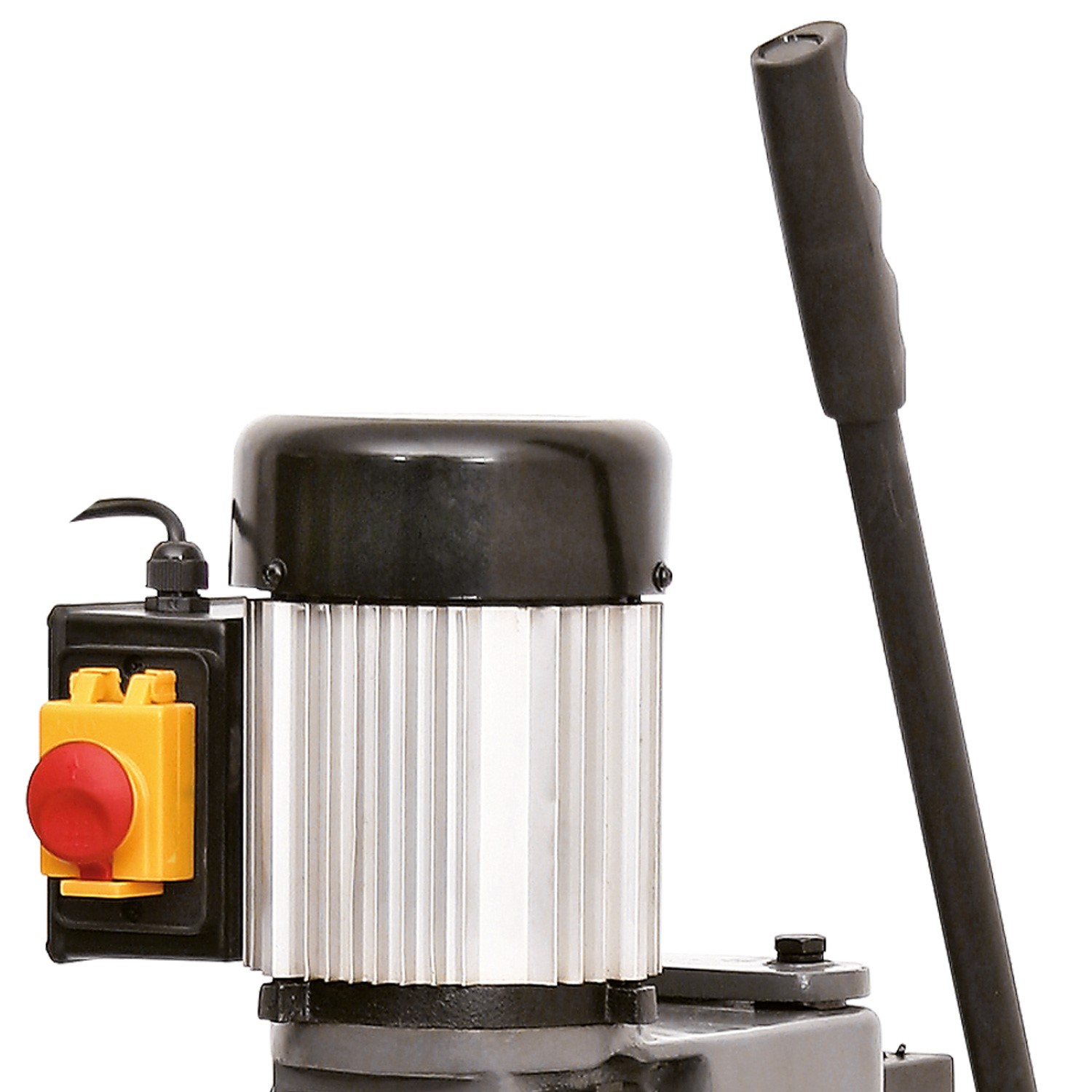

Integrated NVR switch for increased safety

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP Bench Morticer can easily cut square or rectangular holes in a variety of timber, providing robust morticing performance but also doubling as a bench-mounted pillar drill, and utilises a heavy-duty clamp that keeps any and all workpieces secure.

Browse SIP WOODWORK for more woodworking and woodturning essentials.

6mm (1/4") to 12mm (1/2") chisel capacity
76mm max. chisel stroke; 65mm chisel to fence
Built from heavy-duty cast iron for durability
Design doubles as a bench-mounted pillar drill

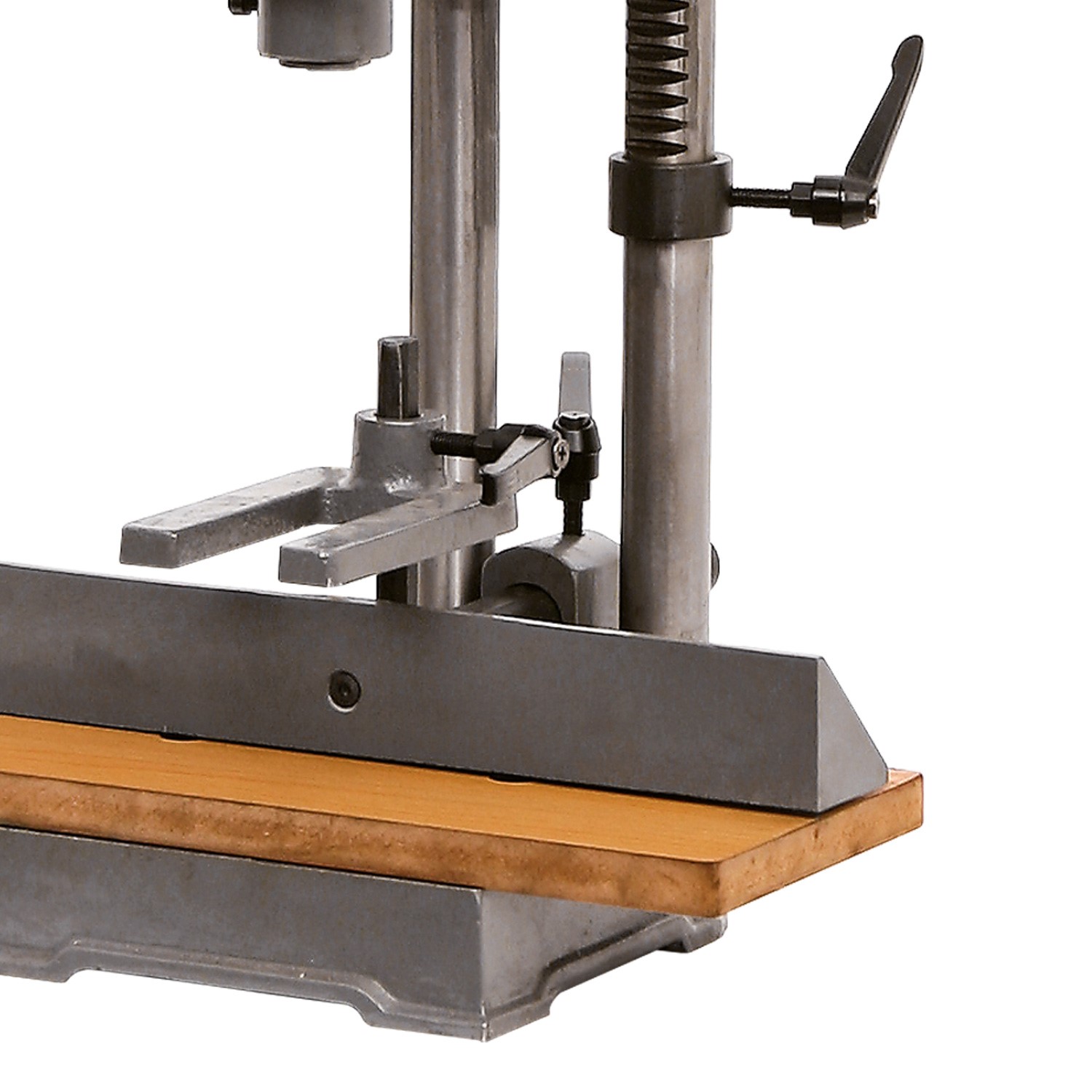

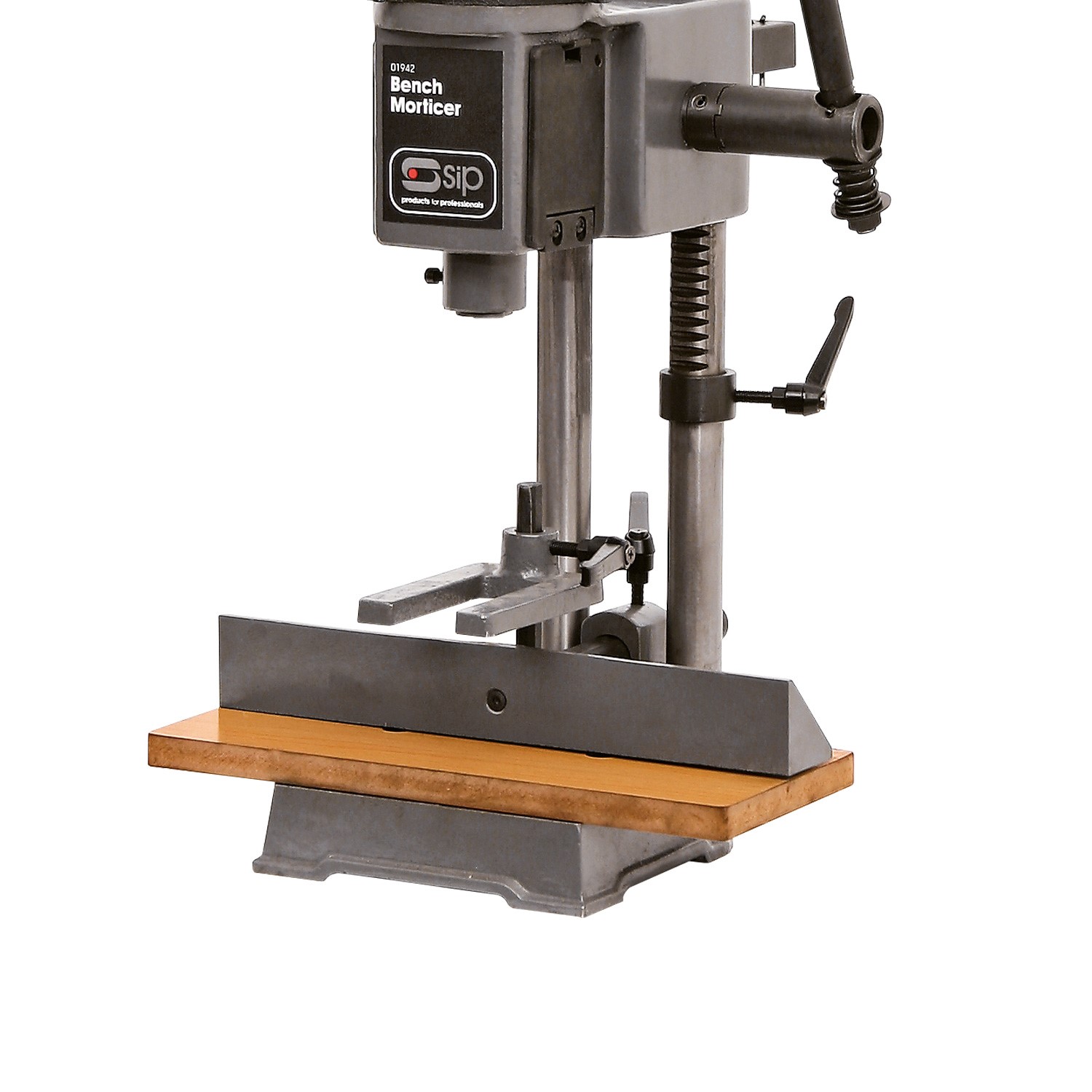

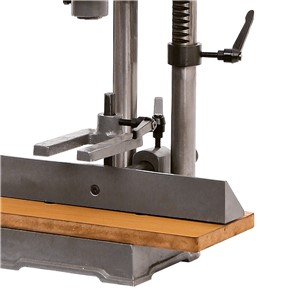

Heavy-duty clamps keeps the workpiece secure
Large work area for bigger or irregular timber
Integrated NVR switch for increased safety
SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO.	01942
Input Supply:	230v (13A)
Motor Power:	370w (0.5hp)
Morticing Capacity:	6mm - 12mm (1/2" - 1/4")
Max. Chisel Stroke:	76mm
Max. Chisel to Fence:	65mm
Standard Brush Size:	3/4" (19mm)
Spindle Speed:	1400rpm
Work Table Size:	340mm x 150mm
Overall Height:	780mm
Net Weight:	25.00kg
Gross Weight:	27.00kg
Product Dimensions:
Packaged Dimensions:	280(H) x 570(W) x 300mm(D)
