SIP 6" Belt Linisher

01949

Click on image to enlarge

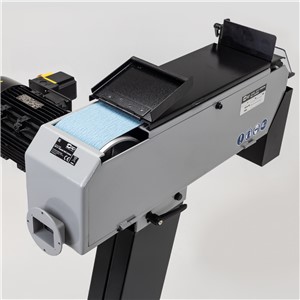

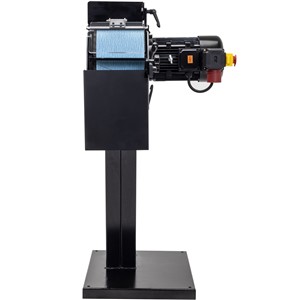

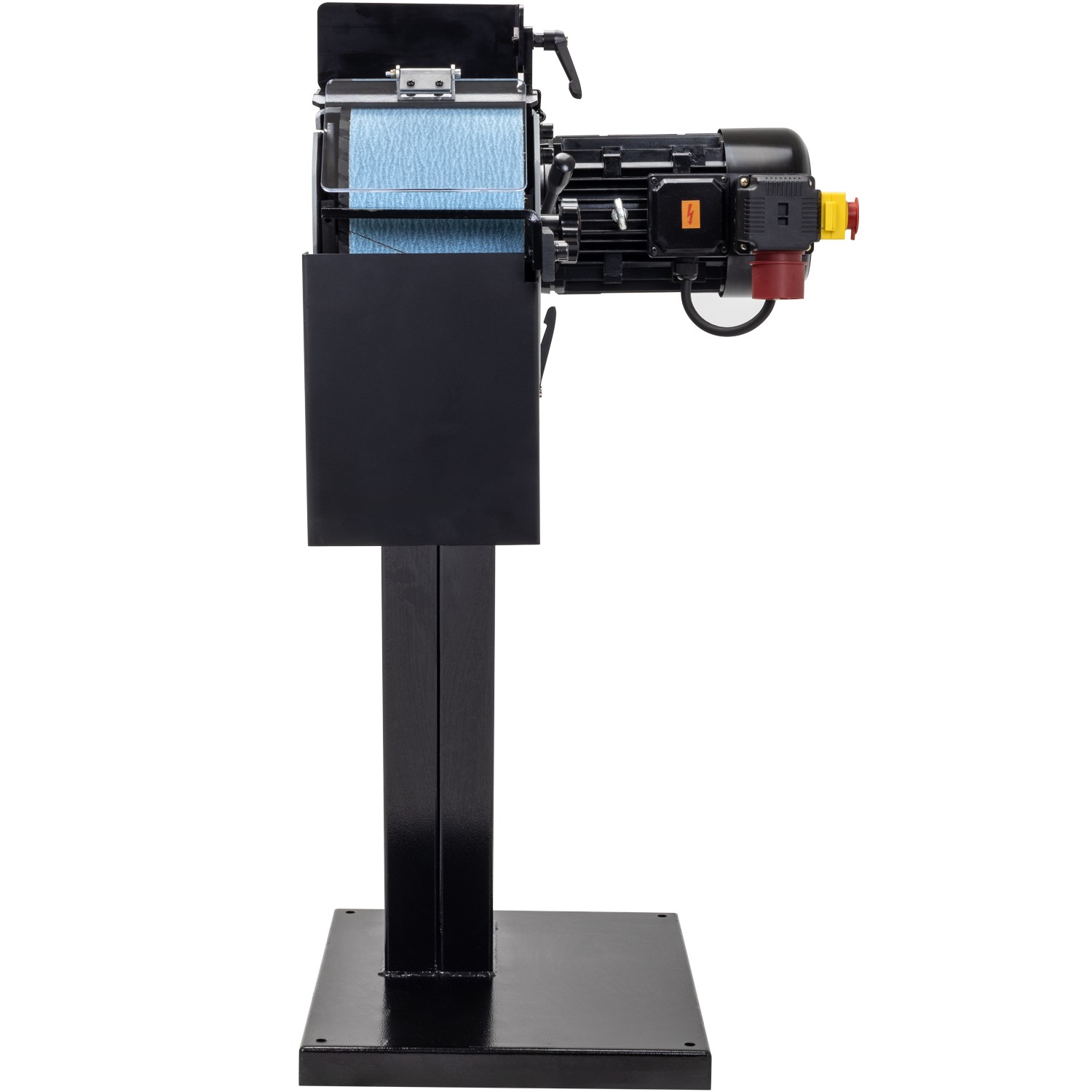

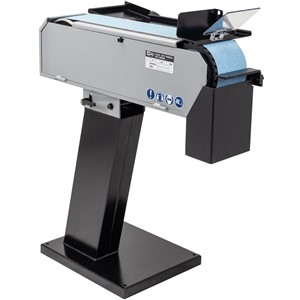

SIP 6" Belt Linisher

01949

The SIP 6" Belt Linisher easily polishes and removes excess material using a tilting system to accommodate a variety of material lengths and sizes, plus accurate positioning via easy angle adjustment for excellent finishing and even surfaces on linished workpieces.

Designed for trade and professional applications.

KEY FEATURES

3-point belt access for a variety of linishing applications
Head tilt accommodates a range of different material lengths and sizes
Long-lasting zirconium bonded belt for metals including stainless steel
Adjustable tool support and angles for accurate workpiece positioning
Quick release belt handle for easy access and belt changes
Belt tracking adjusting knob to belt running correction

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP 6" Belt Linisher easily helps to improve the flatness and uniform surfacing of a variety of different material lengths and sizes using a selection of adjustable mechanisms to match the set-up of the machine to the task at hand.

Adjustable tool support offers accurate positioning of the workpiece and easy angle adjustment, while the linisher head tilt accommodates varying workpieces. Moreover, 3-point belt access on the wheel, platen top, and full platen increases versatility further.

Browse SIP METALWORK for more cutting, drilling, and grinding solutions.

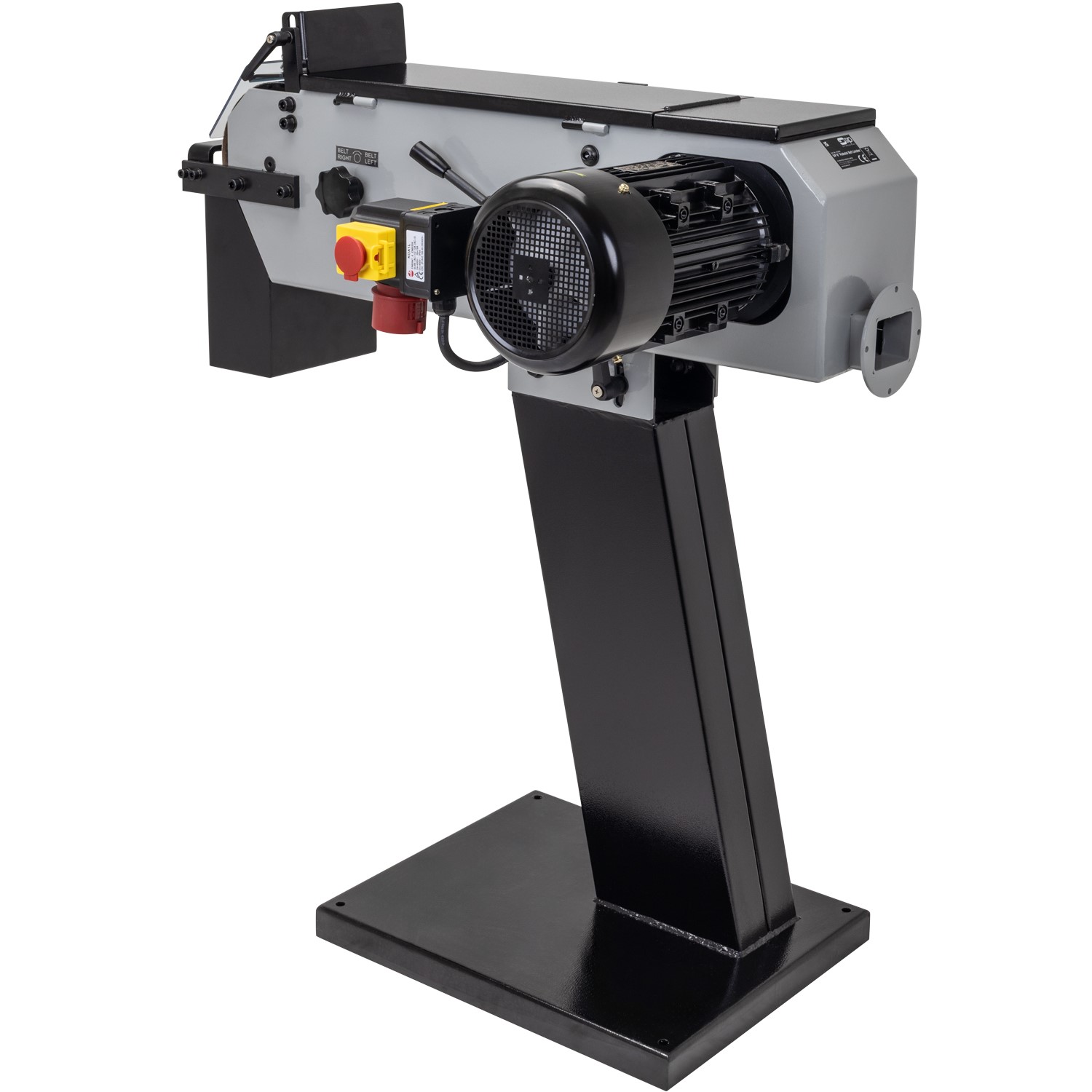

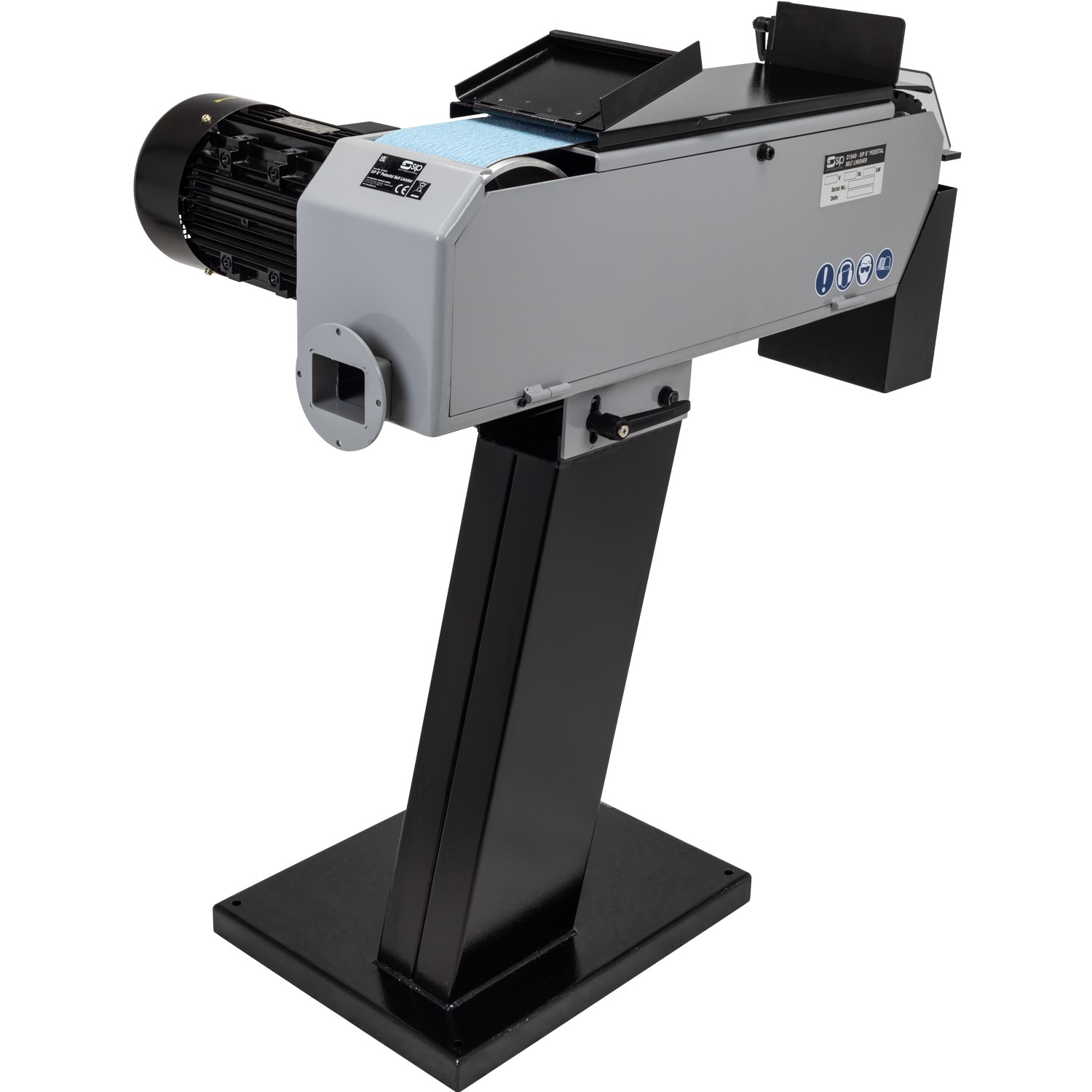

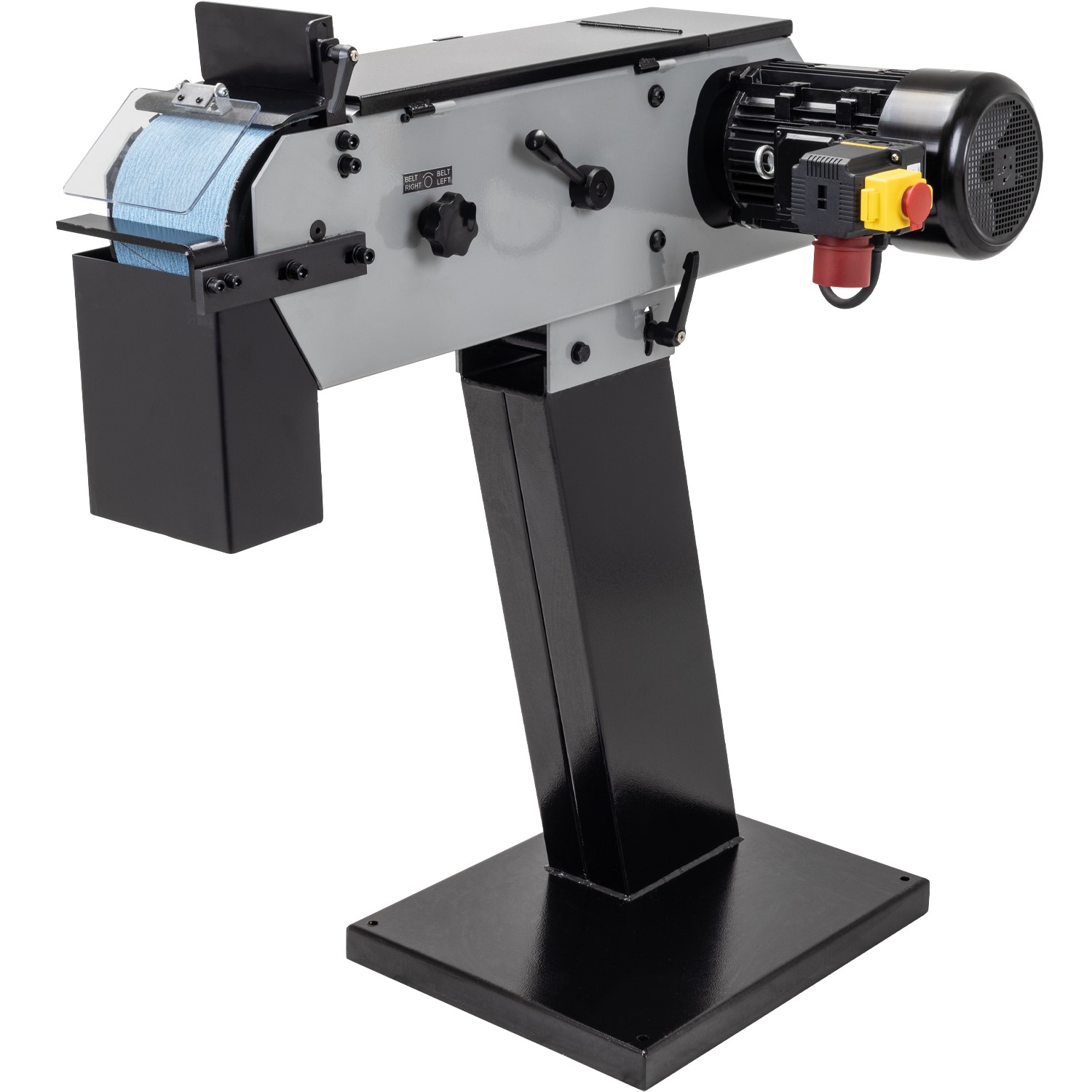

Heavy-duty construction with pedestal stand ideal for workshop requirements
Long-lasting zirconium bonded belt for range of metals including stainless steel

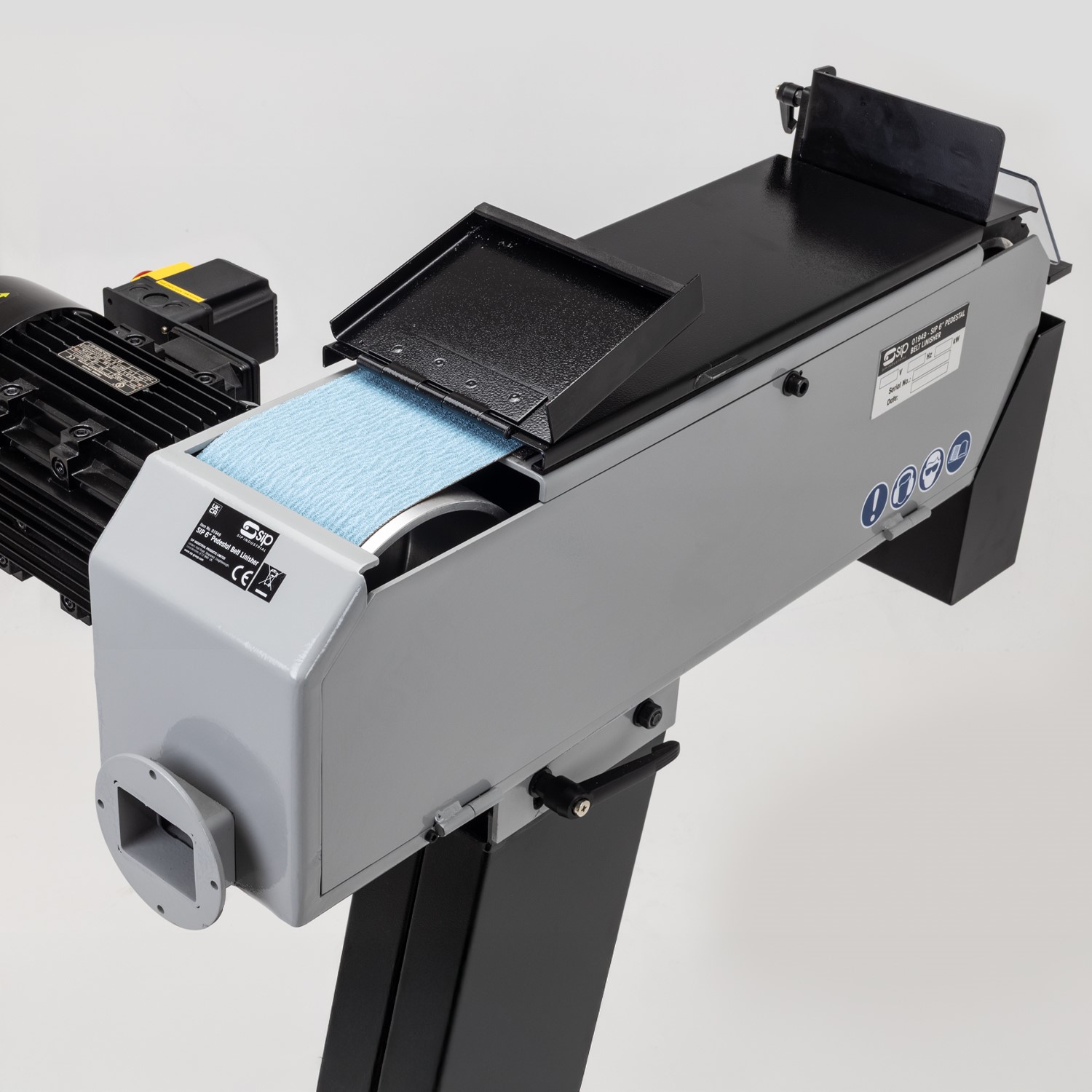

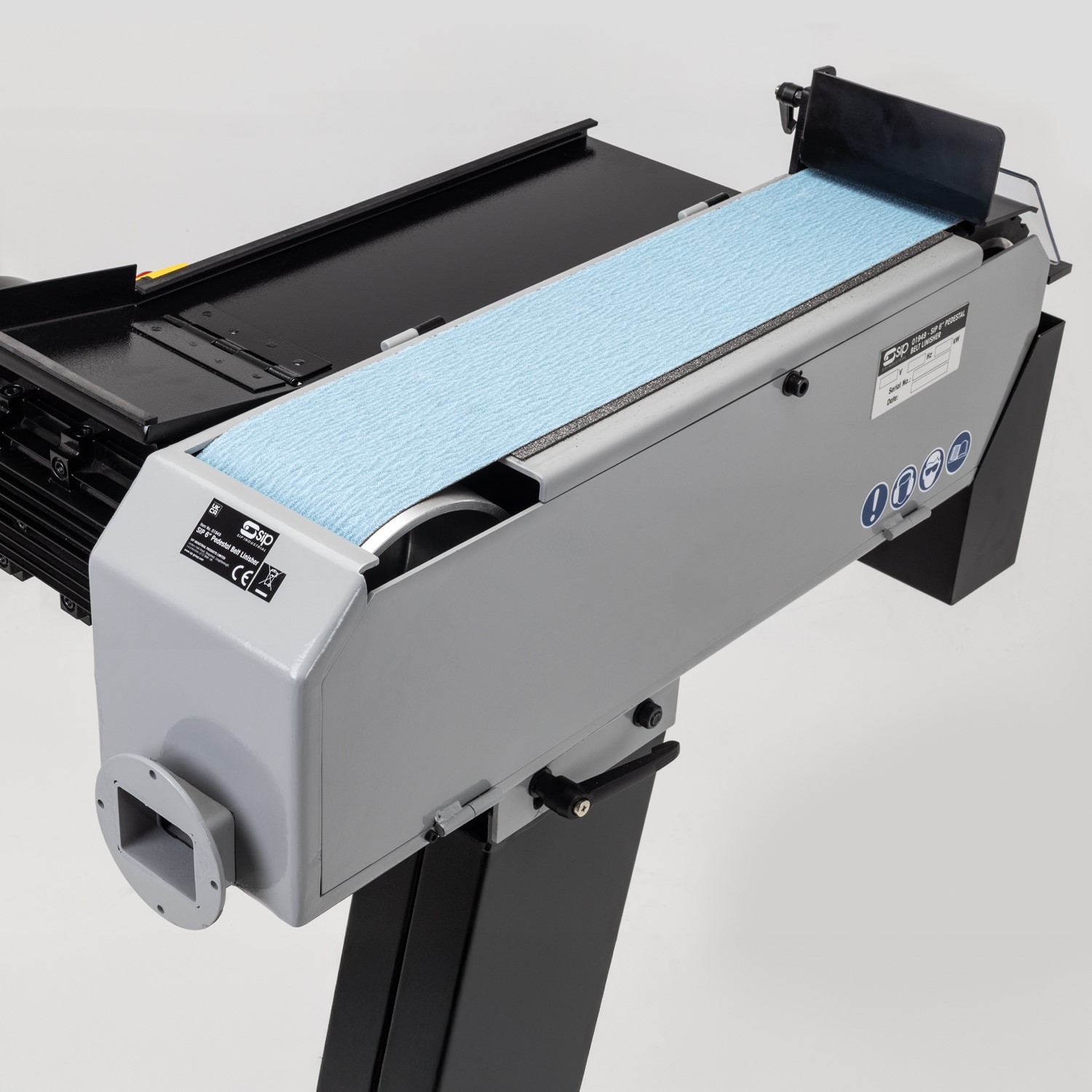

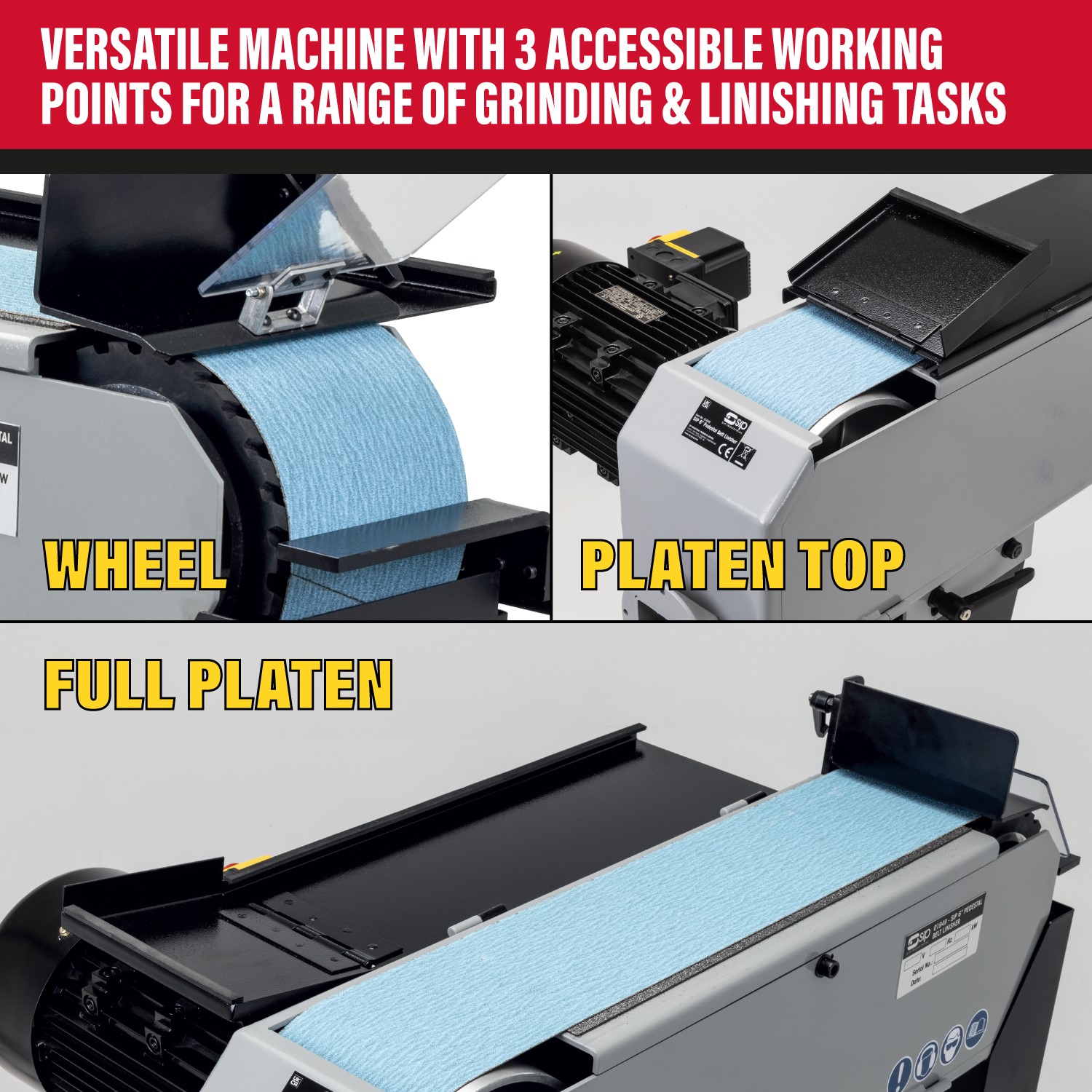

3-point belt access; on wheel, platen top, and full platen for a variety of needs
Adjustable tool support and angles for accurate positioning of the workpiece
Linishing head tilt to accommodate a variety of material lengths and sizes

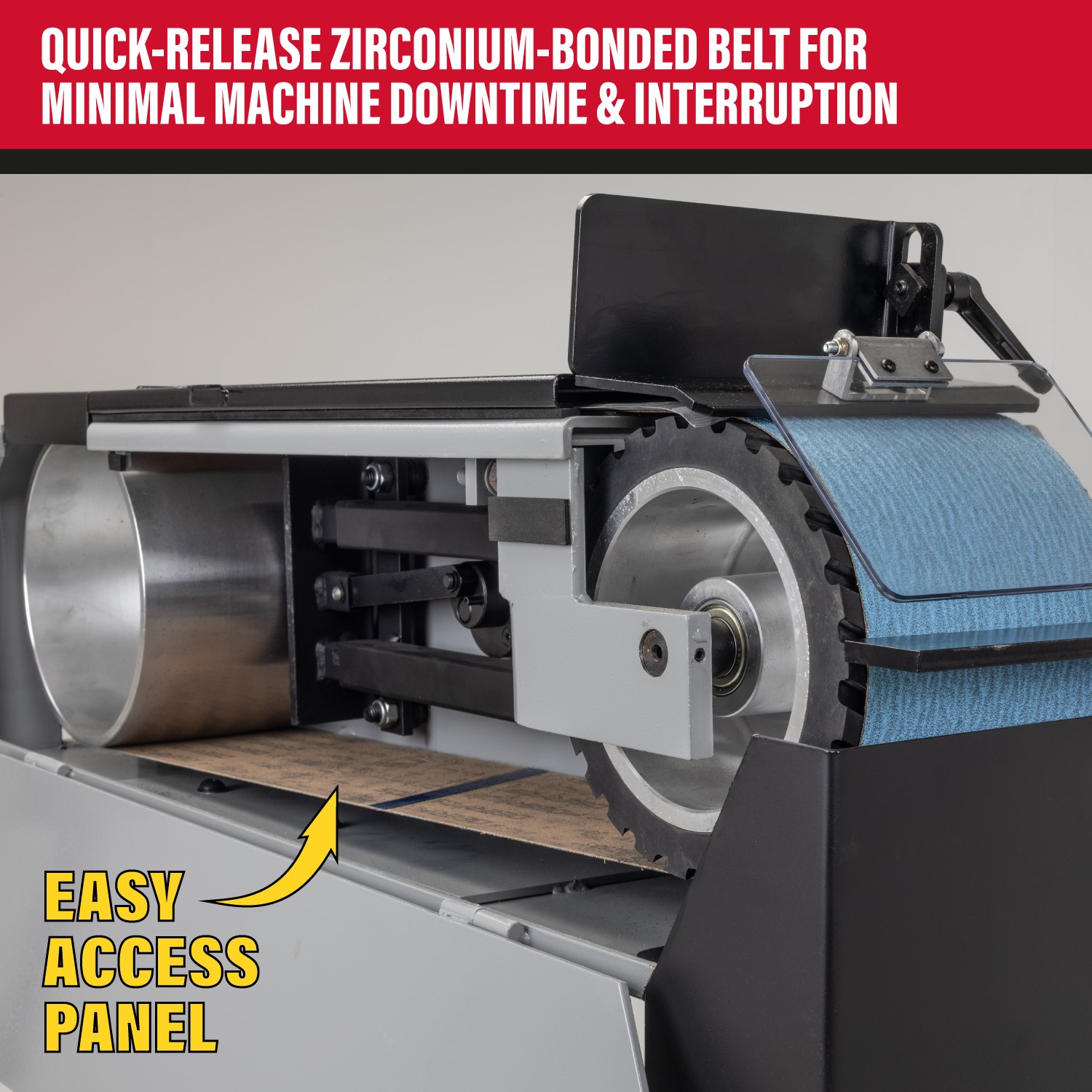

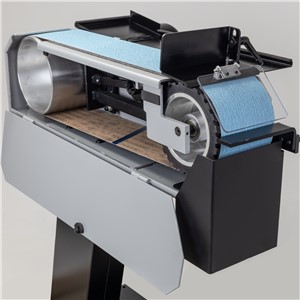

Quick belt release handle for fast belt changing via easy-access side panel
Belt tracking adjusting knob ensures the belt runs straight and true

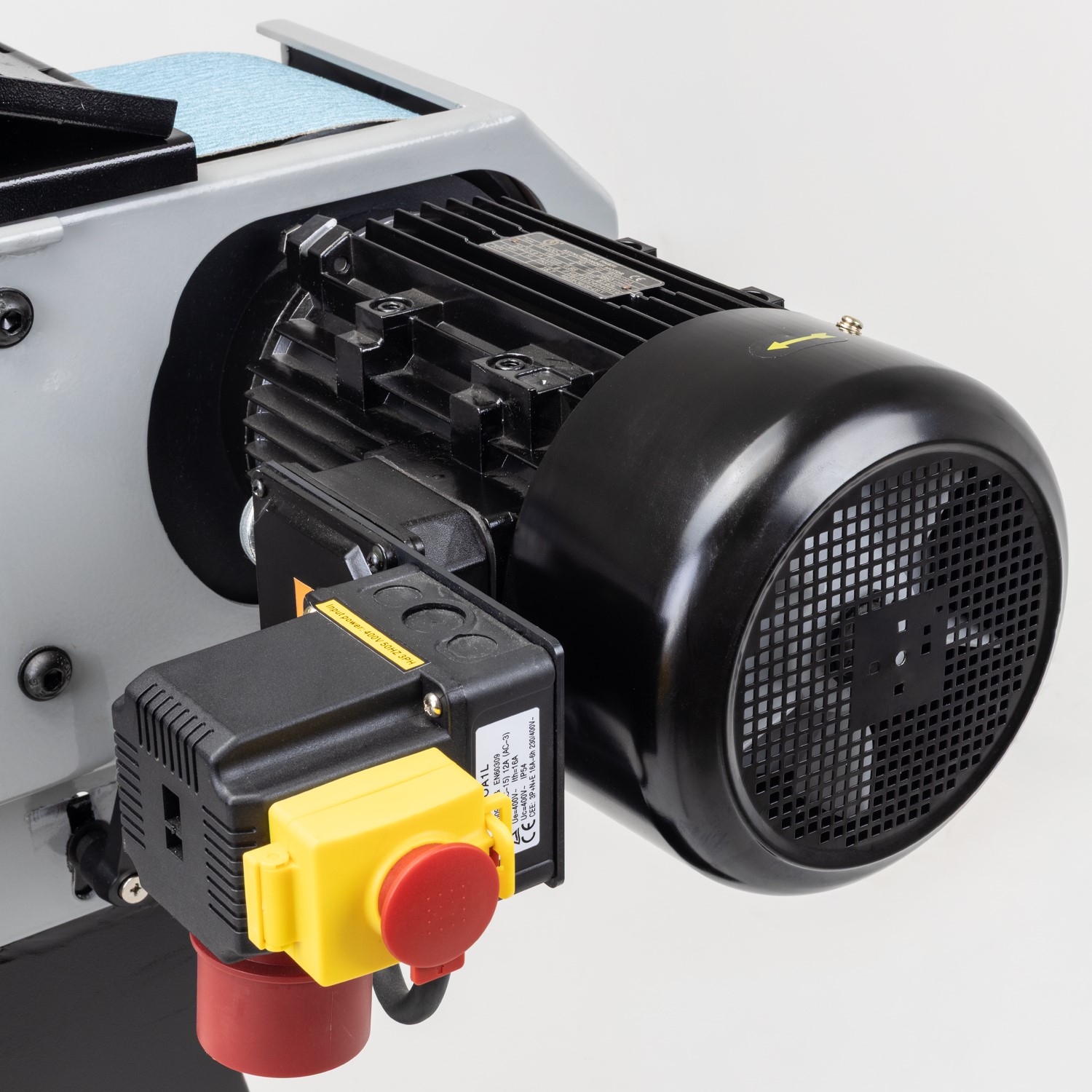

Adjustable eye protection and NVR switch for increased user safety
Designed for trade and professional applications
SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO.	01949
Input Supply:	3-PHASE 400v
Motor Power:	4hp (3kW)
Belt Size:	2000mm x 150mm P80
Belt Speed:	34mtr/sec
Flat Grinding:	530mm
Contact Wheel:	200mm x 150mm
Steering Roller:	225mm x 150mm
Working Height:	475mm - 1240mm
Net Weight:	106.60kg
Gross Weight:	134.70kg

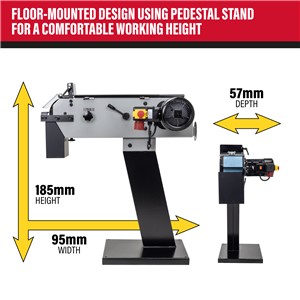

Product Dimensions:
Packaged Dimensions	685(H) x 1140(W) x 625mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE

Warranty Information

COMES WITH A 2 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL SIP MACHINES!

SIP products offer exceptional durability, reliability, and heavy-duty performance. All of our machines are underpinned by the SIP 2-Year Standard Silver Warranty*. In addition to this, we offer a service-based Gold Warranty that extends your cover for a further 2 years when purchased.

All SIP Premium Partner Brands offer comprehensive warranties of their own!

*Excludes accessories and consumables.
