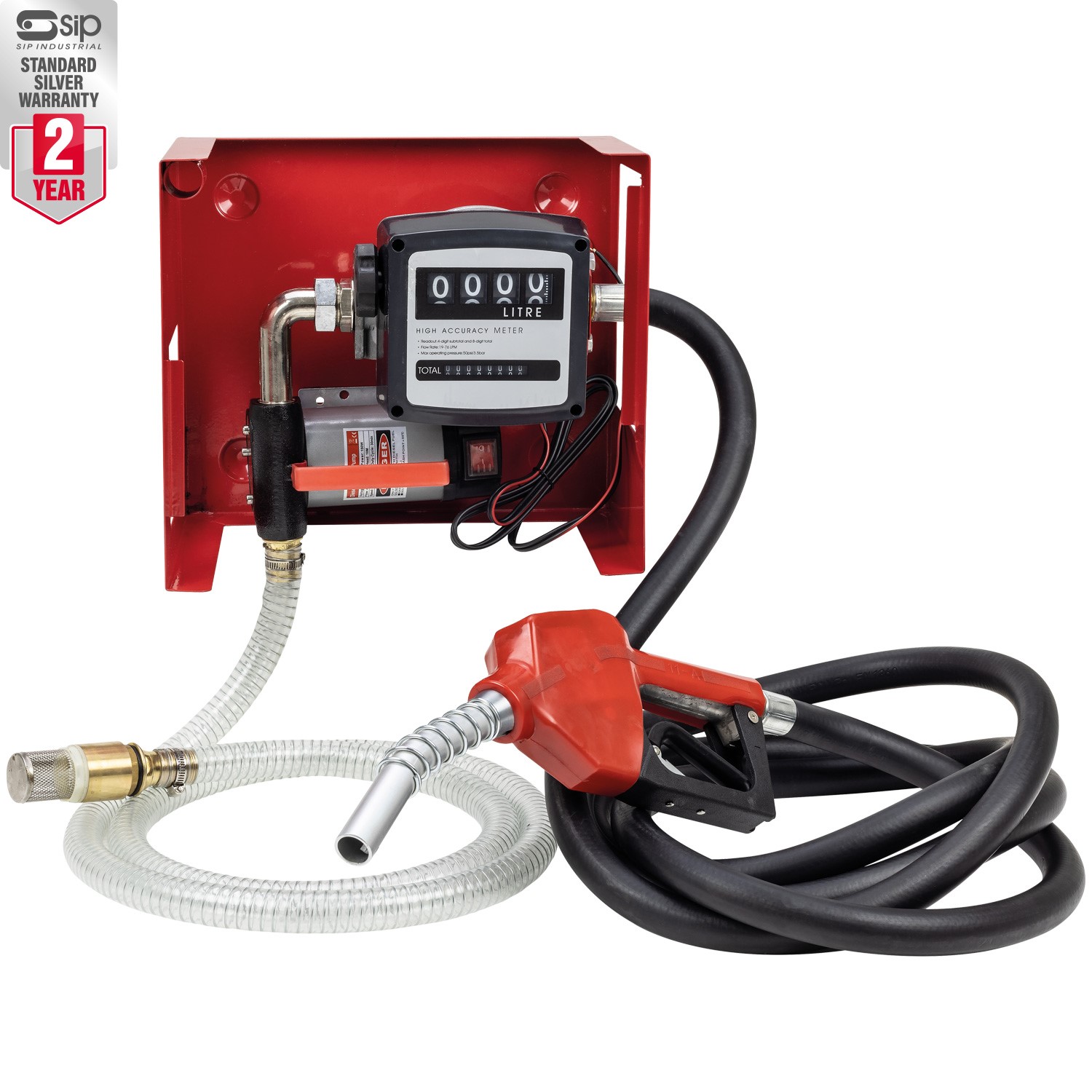

SIP 12v Diesel Transfer Pump with Fuel Meter

06805

The SIP 12v Diesel Transfer Pump with Fuel Meter is a robust electric diesel transfer pump designed with a reliable, well-constructed fuel meter display plus 10mtr pumping head and 2mtr suction head. This makes it ideal for safe dispensing of diesel and fuels oils, and provides high accuracy and speed-of-use.

This compact fuel transfer pump with meter is ideal for a variety of applications including the easy refuelling of vehicles, fleets and other industrial machinery.

KEY FEATURES

Compact design with wall-mountable bracket
Meter with 4 digit subtotal and 8 digit grand total
Powerful 160w DC motor with copper-wound armatures
Supplied with non-return value to aid self-priming
Built-in bypass system for start and stop operation
10mtr pumping head and 2mtr suction head

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP 12v Diesel Transfer Pump with Fuel Meter is a robust electric diesel transfer pump designed with a reliable, well-constructed fuel meter display plus 10mtr pumping head and 2mtr suction head. This makes it ideal for safe dispensing of diesel and fuels oils, and provides high accuracy and speed-of-use.

This compact fuel transfer pump with meter is ideal for a variety of applications including the easy refuelling of vehicles, fleets and other industrial machinery.

Compact design with wall-mountable bracket
Meter with 4 digit subtotal and 8 digit grand total
Powerful 160w DC motor with copper-wound armatures
High-quality aluminium nozzle for added durability
Supplied with non-return value to aid self-priming
Built-in bypass system for start and stop operation
High-quality delivery and suction hoses
10mtr pumping head and 2mtr suction head
40ltr/min flow rate for easy operation
SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO.	06805
Input Voltage:	12v DC
Motor Power:	160w
Max. Pumping Head:	10mtr
Max. Flow Rate:	40ltr/min
Speed:	3200rpm
Max. Working Pressure:	15psi (1bar)
Duty Cycle:	30min
Connection:	3/4" BSP
Protection:	IPX4
Suction Hose Length:	2mtr
Delivery Hose Length:	4mtr
Net Weight:	12.50kg
Gross Weight:	13.50kg
Product Dimensions:	300(H) x 340(W) x 245mm(D)
Packaged Dimensions:	410(H) x 360(W) x 330mm(D)
