SIP 1.4mm Sapphire HVLP Gravity Spray Gun

02138

Click on image to enlarge

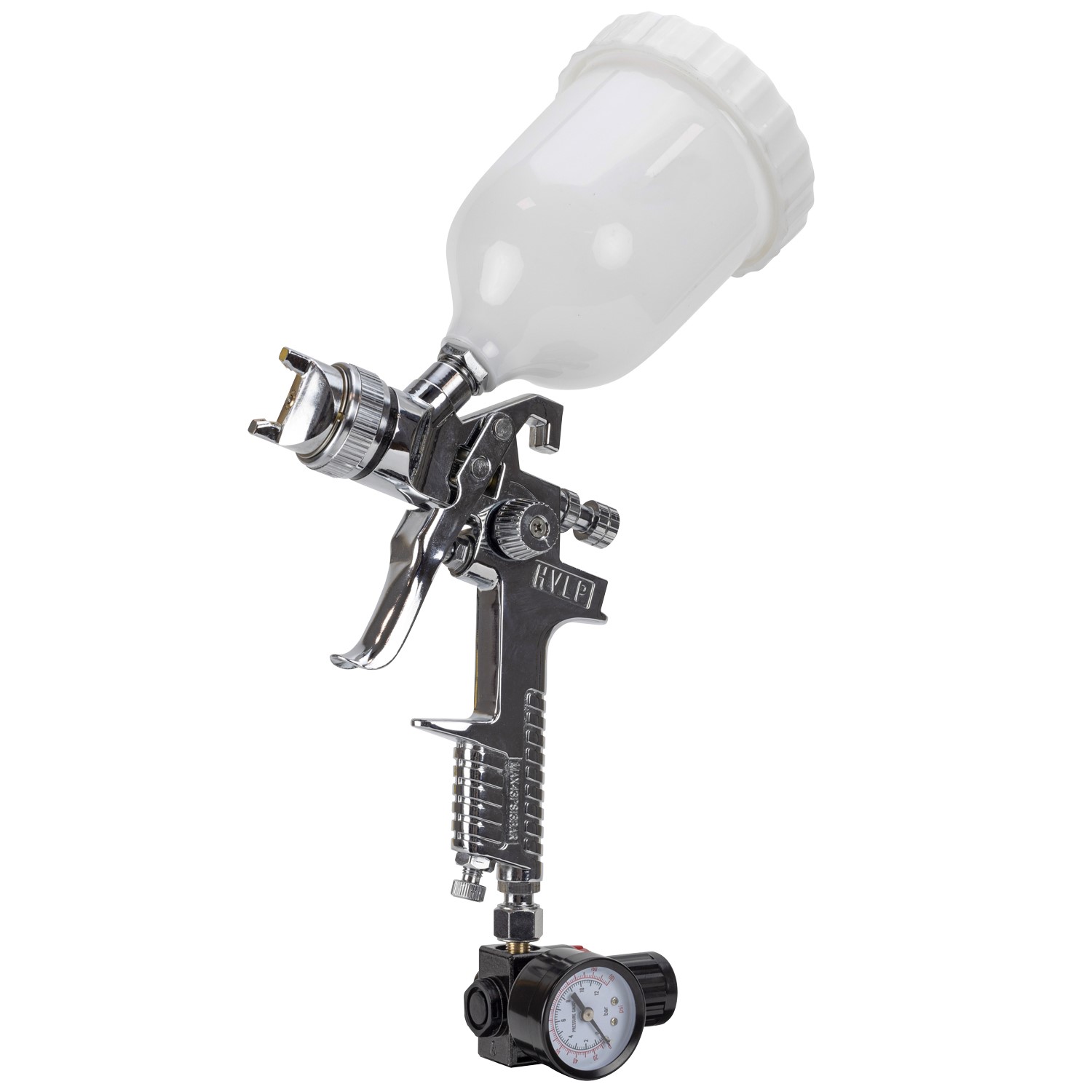

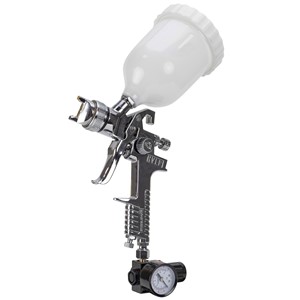

SIP 1.4mm Sapphire HVLP Gravity Spray Gun

02138

The SIP 1.4mm Sapphire HVLP Gravity Spray Gun is a powerful air-powered spray gun designed for optimal versatility and control when spraying in a variety of garage and workshop environments. This includes applying paints plus a selection of other mediums in automotive, woodwork, metalwork and industrial applications.

This gun is extremely versatile thanks to fully adjustable fluid output and fan control, and is particularly suited for high volume and low pressure requirements.

Suitable for water-based paint.

KEY FEATURES

Low pressure gravity-fed spray with 1.4mm nozzle
600ml paint cup provides good reserve for minimal refilling
Fully adjustable fluid output and fan control for versatility
Ideal for high volume and low pressure requirements
Suitable for water-based paint

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP 1.4mm Sapphire HVLP Gravity Spray Gun is a powerful air-powered spray gun designed for optimal versatility and control when spraying in a variety of garage and workshop environments. This includes applying paints plus a selection of other mediums in automotive, woodwork, metalwork and industrial applications.

Built for maximum versatility, this spray gun is designed with fully adjustable fluid output and fan control. A 600ml paint cup provides a good reserve for less refilling and reduced interruption. This helps to match the output to the desired specification.

It also offers greater paint control, applying fast and even coats on larger surfaces, as well as hard-to-reach areas unsuitable for brushes and rollers. SIP Spray Guns offer fine spray patterns suitable for achieving smooth and professional-looking finishes.

This gun is particularly well-suited to high volume and low pressure requirements.

Professional gravity-fed spray gun with 1.4mm nozzle
12.5CFM (354ltr/min) average working air consumption
43psi (3bar) - 58psi (4bar) max. operating pressure
600ml paint cup provides a good reserve for less refill interruption
Perfect for greater paint control, applying fast and even coats on large surfaces, and hard-to-reach areas unsuitable for brushes or rollers
Fully adjustable fluid output and fan control for added versatility and matching output to the required application

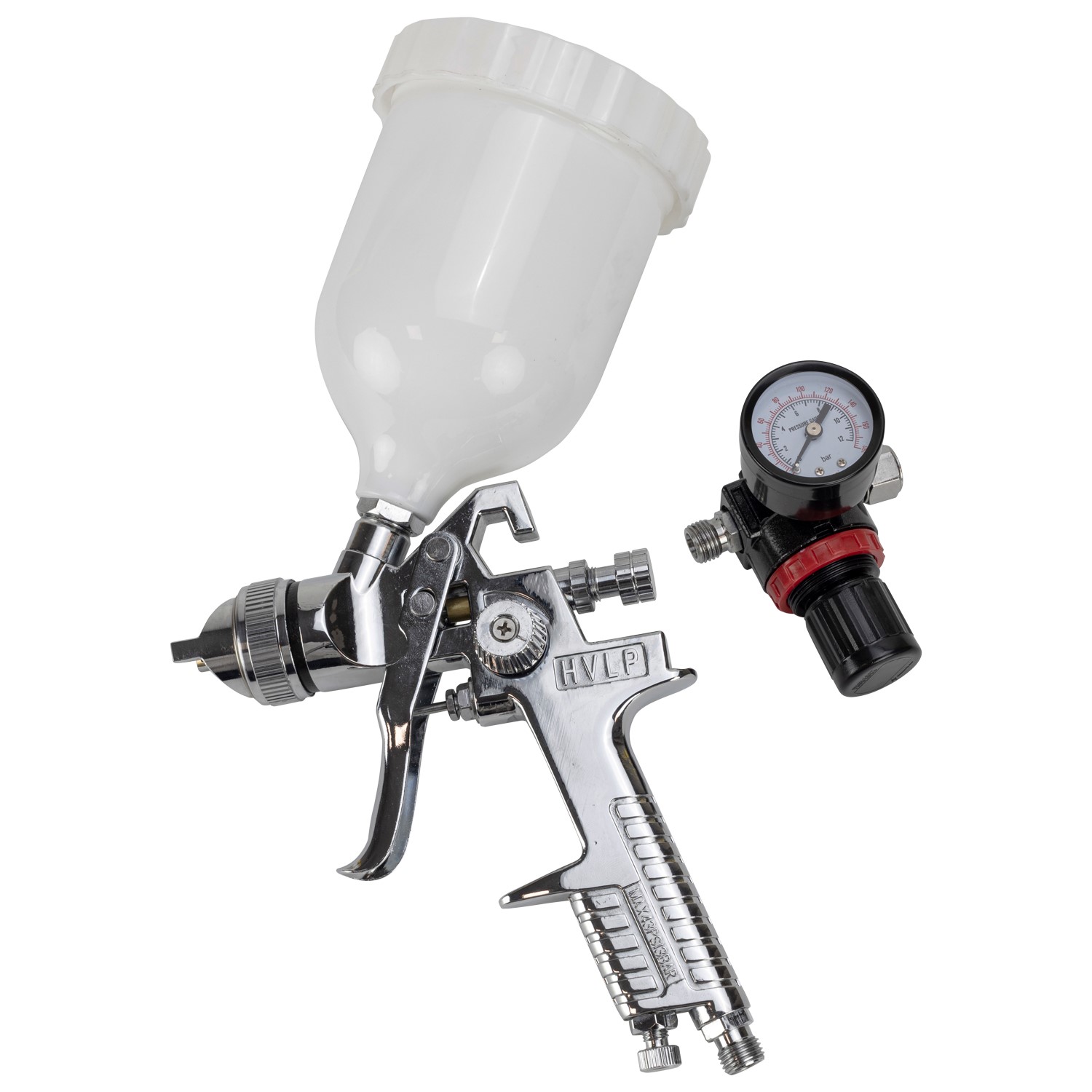

Supplied with regulator and gauge for high accuracy
Ideal for high volume and low pressure requirements
Suitable for water-based paint
SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO.	02138
Feed Type:	Gravity
Nozzle Diameter:	Ø 1.4mm
Operating Pressure:	43psi (3bar) - 58psi (4bar)
Av. Air Consumption:	12.50CFM (354ltr/min)
Paint Cup Capacity:	600ml
Water Based Paint:	Yes
Air Inlet:	1/4" BSP
Net Weight:	1.10kg
Gross Weight:	1.11kg
Product Dimensions:	125(H) x 125(W) x 250mm(D)
Packaged Dimensions:	150(H) x 230(W) x 140mm(D)
