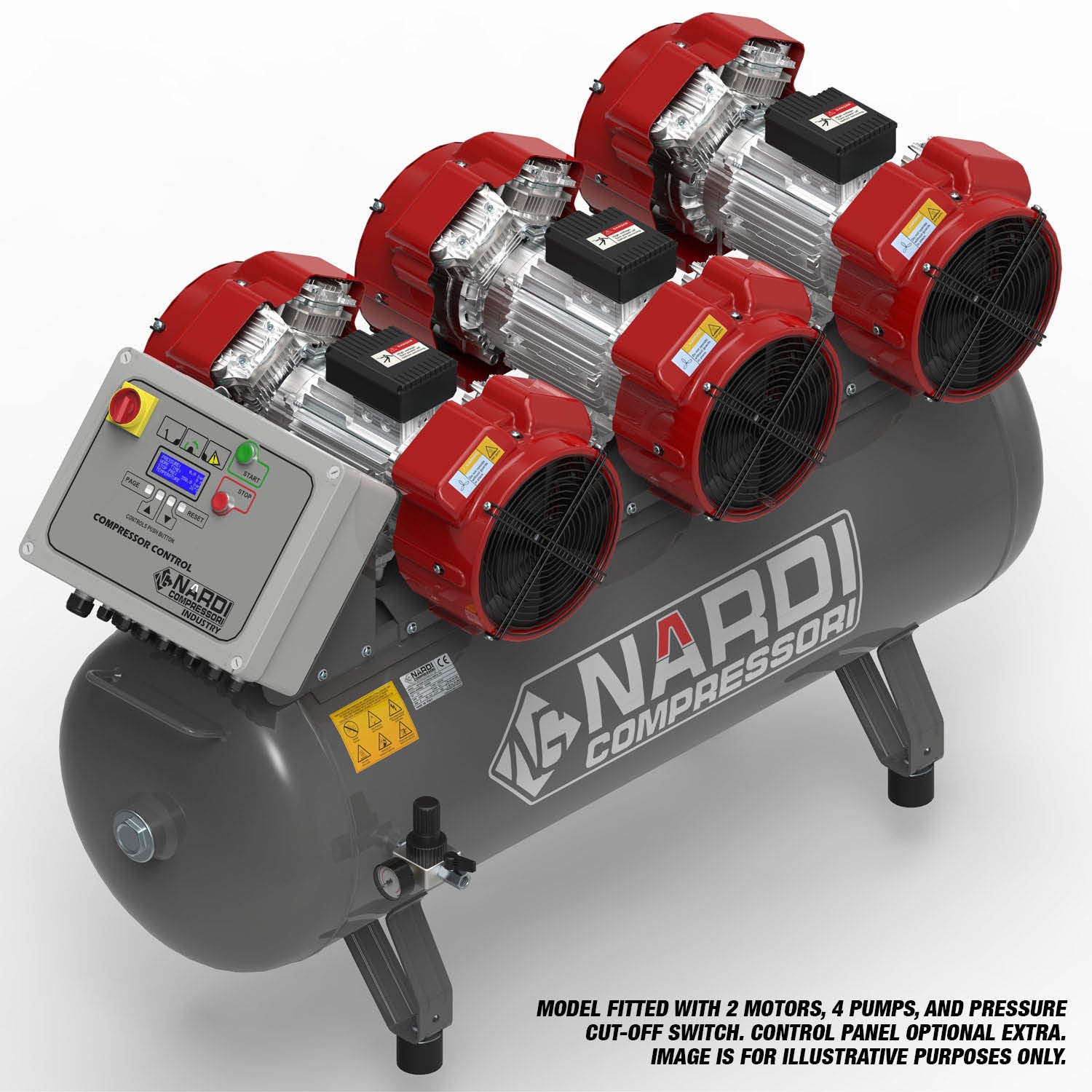

NARDI EXTREME MP 6HP 270ltr Compressor

EXTMP2706021

Click on image to enlarge

NARDI EXTREME MP 6HP 270ltr Compressor

EXTMP2706021

The NARDI EXTREME MP 6HP 270ltr 21BAR Compressor offers heavy-duty performance perfect for demanding high volume and low pressure applications, delivering powerful piston displacement via 3-phase slow-running motors and high-quality oil-free pump.

Ideal for a variety of industrial-grade applications.

KEY FEATURES

305psi (21bar) max. air pressure
Twin 3-phase slow-running 4-pole motors for high performance
V-Twin cylinder; direct drive crankshaft via motor shaft
High-quality oil-free pump for long life and low maintenance
Air intake particle diffusion for reduced air contamination

SIP 3-Year Standard Silver Warranty | Find out more

Full Specification

The NARDI EXTREME MP 6HP 270ltr 21BAR Compressor offers heavy-duty performance perfect for demanding high volume and low pressure applications, delivering powerful piston displacement via 3-phase slow-running motors and high-quality oil-free pump.

Ideal for a variety of industrial-grade applications.

Browse NARDI Compressors for more specialist compressor solutions.

305psi (21bar) max. air pressure
Twin 3-phase slow-running 4-pole motors for high performance
V-Twin cylinder; direct drive crankshaft via motor shaft
High-quality pump designed with robust technopolymer piston rings providing oil-free operation for long life and low maintenance performance
Concentric big end bearings for reduced vibration and increased pump life
Unique crankcase air intake particle diffusion reduces air contamination, ensuring longer life of the valve plate
Fan-shaped stainless steel valves provide long life and durability
Forced air cooling for an extended runtime and performance
Low noise; perfect for noise critical situations
Built with an adjustable air pressure regulator
SIP 3-Year Standard Silver Warranty
Manufactured in Italy

Technical Information

ITEM NO.	EXTMP2706021
Input Supply:	400v 3-PHASE
Motor Power:	2x 2.20kW (3.00hp) 4-POLE 1400rpm
Receiver Size:	270ltr
Piston Displacement:	18.40CFM (520ltr/min)
Free Air Delivery (FAD):	12.88CFM (368ltr/min)
Max. Air Pressure:	305psi (21bar)
No. of Cylinders:	8 cylinders
Noise Level:	74dB(A)
Net Weight:	185.00kg
Gross Weight:	280.00kg
Product Dimensions:	1870(H) x 640(W) x 1600mm(D)
Packaged Dimensions:	1100(H) x 950(W) x 1700mm(D)
