NARDI EXTREME 3T 2.00HP 2-POLE 5ltr Compressor

EXT5202

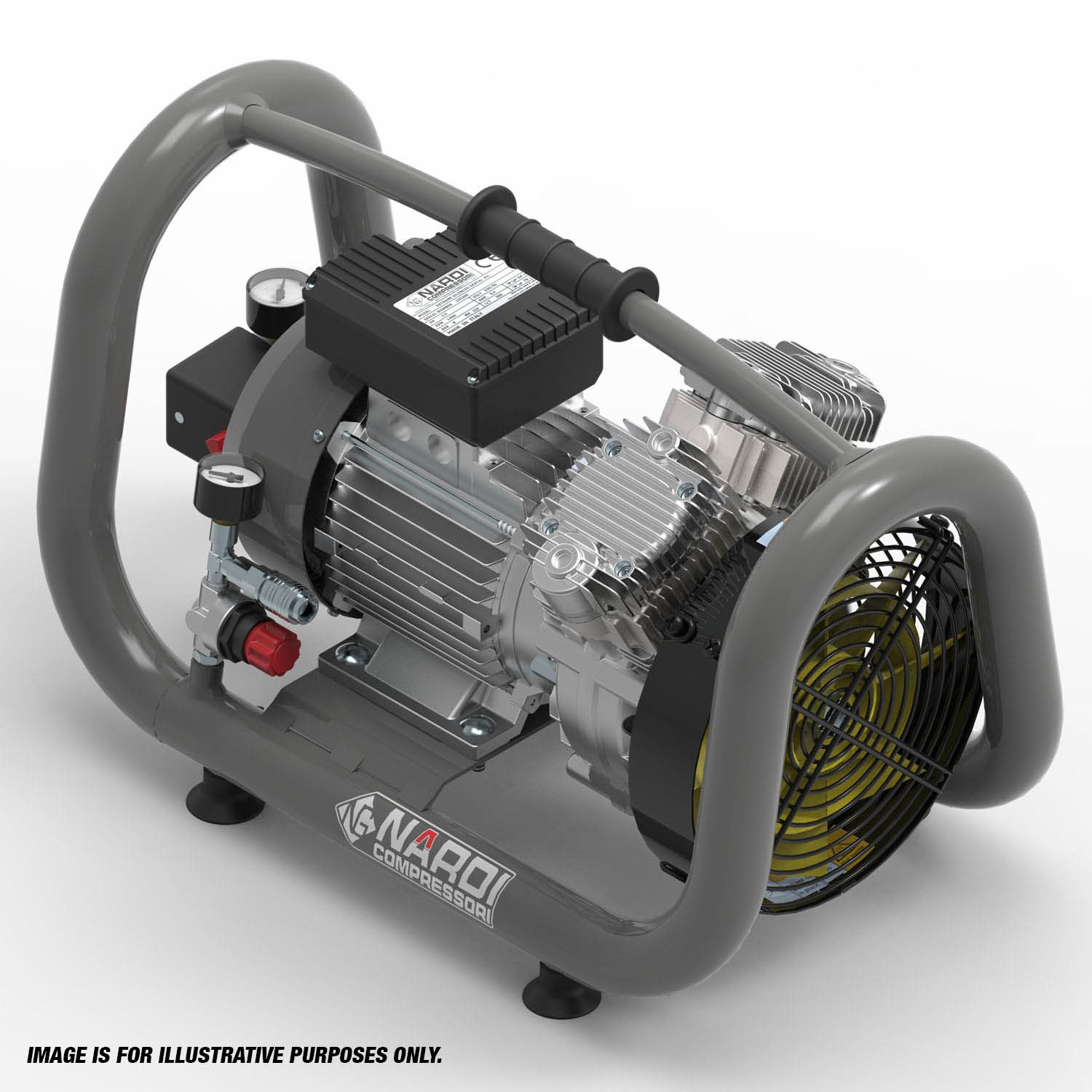

NARDI EXTREME 3T 2.00HP 2-POLE 5ltr Compressor
EXT5202

The NARDI EXTREME 3T 2.00HP 2-POLE 5ltr Direct Drive Compressor is designed with forced air cooling and a high-quality oil-free pump manufactured with robust technopolymer piston rings that offers longer life and low maintenance performance.

Ideal for low and medium pressure and flow, remote locations, and fibre blowing.

KEY FEATURES

  • Lightweight, compact, and highly portable framed design
  • V-Twin cylinder; direct drive crankshaft via motor shaft
  • High-quality oil-free pump for long life and low maintenance
  • Air intake particle diffusion for reduced air contamination
  • Stainless steel fan-shaped valves for added durability

SIP 3-Year Standard Silver Warranty | Find out more

Full Specification

The NARDI EXTREME 3T 2.00HP 2-POLE 5ltr Direct Drive Compressor is designed with forced air cooling and a high-quality oil-free pump manufactured with robust technopolymer piston rings that offers longer life and low maintenance performance.

Ideal for low and medium pressure and flow, remote locations, and fibre blowing.

Browse NARDI Compressors for more specialist compressor solutions.

  • Powerful 2-pole brushless induction motor
  • Lightweight, compact, and highly portable framed design
  • V-Twin cylinder; direct drive crankshaft via motor shaft
  • High-quality pump designed with robust technopolymer piston rings providing oil-free operation for long life and low maintenance performance
  • Concentric big end bearings for reduced vibration and increased pump life
  • Unique crankcase air intake particle diffusion reduces air contamination, ensuring longer life of the valve plate
  • Fan-shaped stainless steel valves provide long life and durability
  • Forced air cooling for an extended runtime and performance
  • Pressure cut-off switch and adjustable air regulator
  • SIP 3-Year Standard Silver Warranty
  • Manufactured in Italy

Technical Information

ITEM NO. EXT5202
Input Supply: 230v (13A)
Motor Power: 1.50kW (2.00hp) 2-POLE 2800rpm
Receiver Size: 5ltr
Piston Displacement: 14.10CFM (400ltr/min)
Free Air Delivery (FAD): 9.87CFM (282ltr/min)
Max. Air Pressure: 145psi (10bar)
No. of Cylinders: 2 cylinders
Noise Level: 82dB(A)
Net Weight: 26.50kg
Gross Weight: 29.00kg
Product Dimensions: 390(H) x 310(W) x 530mm(D)
Packaged Dimensions: 440(H) x 350(W) x 550mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE

Warranty Information



COMES WITH A 3 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL NARDI MACHINES!

We are extremely confident that our products will offer exceptional durability, reliability, and heavy-duty performance, and to back that up we are now offering the SIP 3-Year Standard Silver Warranty across all* NARDI machines. On top of this, we offer a service-based Gold Warranty that extends the duration of your warranty for a further 24 months if purchased.

In addition, all SIP Premium Partner Brands now offer comprehensive warranties of their own!

FIND OUT MORE

*excludes accessories and consumables.

No extended details available.
