NARDI ESPRIT 3 24v 500w 15ltr Compressor

ESP1550024

Click on image to enlarge

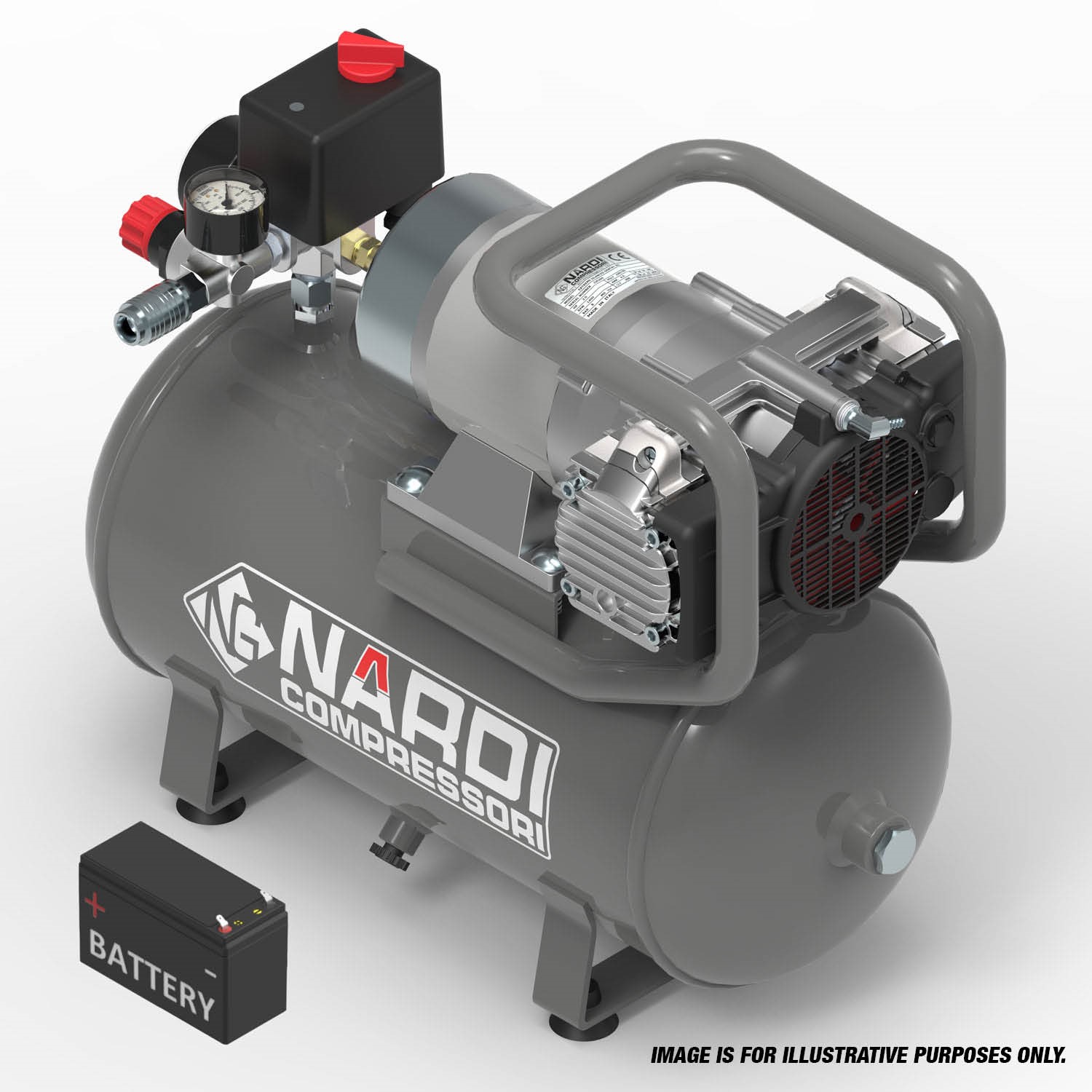

NARDI ESPRIT 3 24v 500w 15ltr Compressor

ESP1550024

The NARDI ESPRIT 3 24v 500w 15ltr Direct Drive Compressor is designed with forced air cooling and a high-quality oil-free pump manufactured with robust technopolymer piston rings that offers longer life and low maintenance performance.

Ideal for low volume and low pressure uses, including airbrushing, nailing, and stapling.

KEY FEATURES

24v battery-powered design with easy carry handle
Flat-twin cylinder; direct drive crankshaft via motor shaft
High-quality oil-free pump for long life and low maintenance
Forced air cooling for an extended runtime and performance
Heavy-duty stainless steel valve plate for added durability

SIP 3-Year Standard Silver Warranty | Find out more

Full Specification

The NARDI ESPRIT 3 24v 500w 15ltr Direct Drive Compressor is designed with forced air cooling and a high-quality oil-free pump manufactured with robust technopolymer piston rings that offers longer life and low maintenance performance.

Ideal for low volume and low pressure uses, including airbrushing, nailing, and stapling.

Browse NARDI Compressors for more specialist compressor solutions.

24v battery-powered design with easy carry handle
Flat-twin cylinder; direct drive crankshaft via motor shaft
High-quality pump designed with robust technopolymer piston rings providing oil-free operation for long life and low maintenance performance
Forced air cooling for an extended runtime and performance
Heavy-duty stainless steel valve plate for added durability
Lightweight and compact design for easy portability
Pressure cut-off switch and adjustable air regulator
SIP 3-Year Standard Silver Warranty
Manufactured in Italy

Technical Information

ITEM NO.	ESP1550024
Input Supply:	24v DC
Motor Power:	0.50kW (0.75hp) 3000rpm
Receiver Size:	15ltr
Piston Displacement:	7.90CFM (225ltr/min)
Free Air Delivery (FAD):	5.53CFM (158ltr/min)
Max. Air Pressure:	145psi (10bar)
No. of Cylinders:	2 cylinders
Noise Level:	62dB(A)
Net Weight:	14.50kg
Gross Weight:	18.50kg
Product Dimensions:	400(H) x 220(W) x 470mm(D)
Packaged Dimensions:	430(H) x 250(W) x 510mm(D)
