SIP CHARGESTAR D15 Digital Battery Charger

03506

Click on image to enlarge

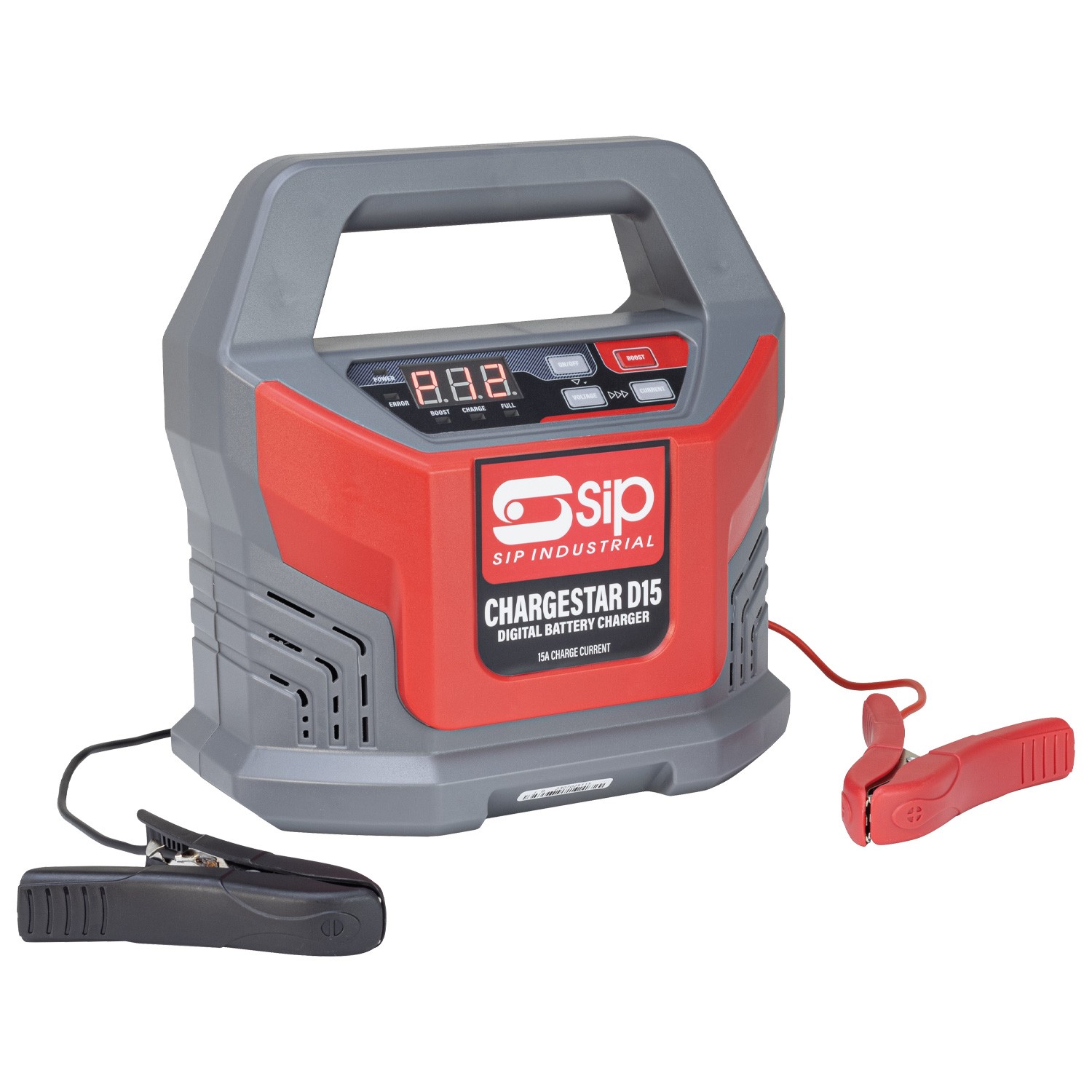

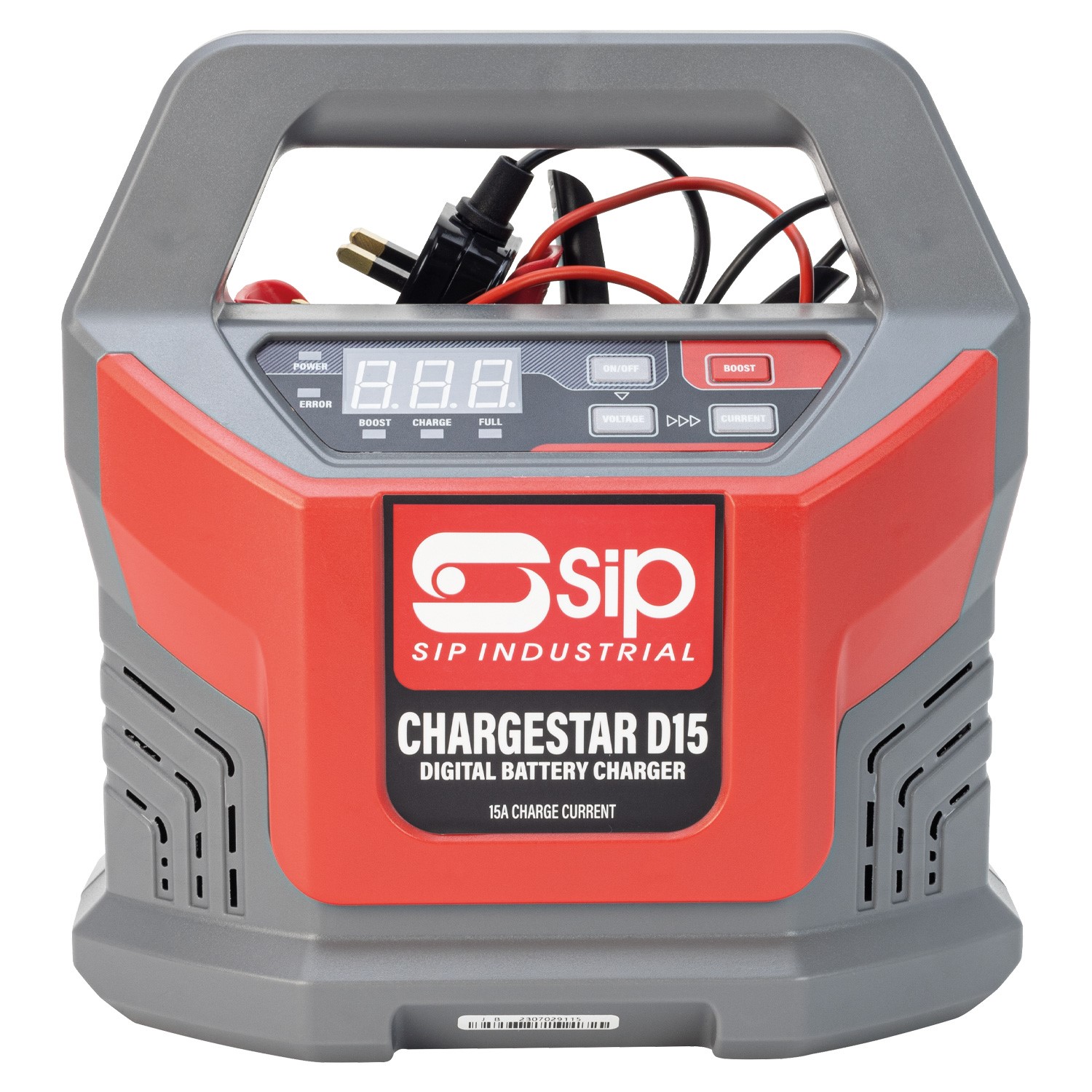

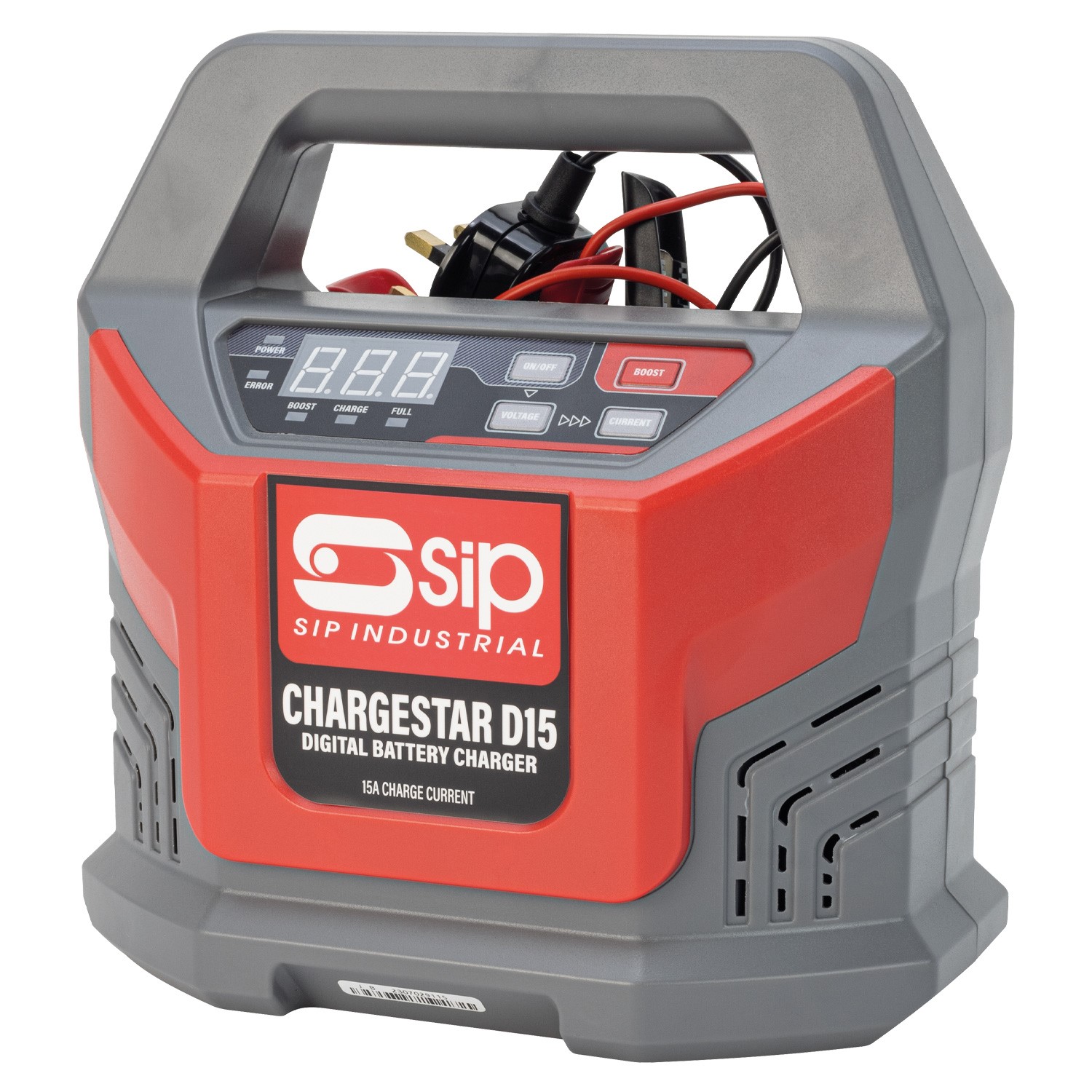

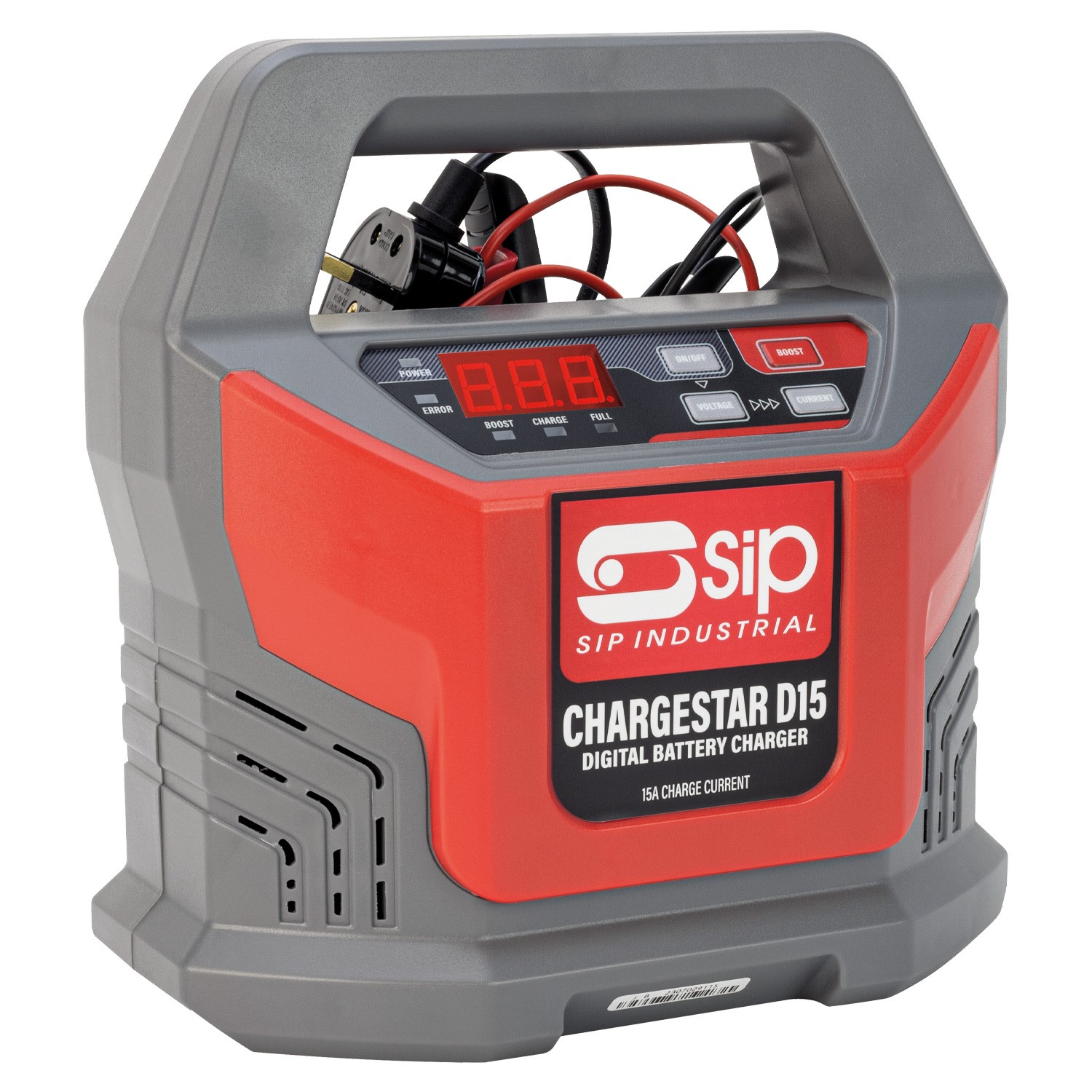

SIP CHARGESTAR D15 Digital Battery Charger

03506

The SIP CHARGESTAR D15 Digital Battery Charger is a compact and portable digital battery charger designed for charging all types of 12v lead acid batteries.

Featuring an intelligent microprocessor with 6-step automatic charging cycle, the CHARGESTAR D15 makes battery charging easier, faster and safer.

KEY FEATURES

12v voltage charging output
Charging capacity of up to 220Ah max. rated
Microprocessor-controlled automatic 6-step charging cycle
Battery low voltage detector >3v
LED display screen and intuitive soft touch control panel
Compact and lightweight design with carry handle

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP CHARGESTAR D15 Digital Battery Charger is a compact and portable digital battery charger designed for charging all types of 12v lead acid batteries.

Featuring an intelligent microprocessor with 6-step automatic charging cycle, the CHARGESTAR D15 makes battery charging easier, faster and safer.

Applications & uses: Ideal for battery charging applications in automotive and workshop environments.

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification 2

VERSATILE BATTERY CHARGER SUITABLE FOR A VARIETY OF 12V LEAD ACID BATTERIES

This includes WET, MF, EFB, AGM and CaCa battery types.
Charging capacity of up to 220Ah and maintenance capacity of 300Ah.

MICROPROCESSOR-CONTROLLED CHARGER MAINTAINS HEALTHY LONG-LIFE BATTERY PERFORMANCE

An intelligent 6-step cycle automatically diagnoses battery condition and voltage before beginning a charging cycle.
Once battery capacity is full, the unit stops charging and a control panel light is displayed.
If the voltage is less than 3v, the unit prevents charging as battery recovery will not be possible.
'Boost - Fast Charge' mode dlivers 5mins of continuous 15A charge.

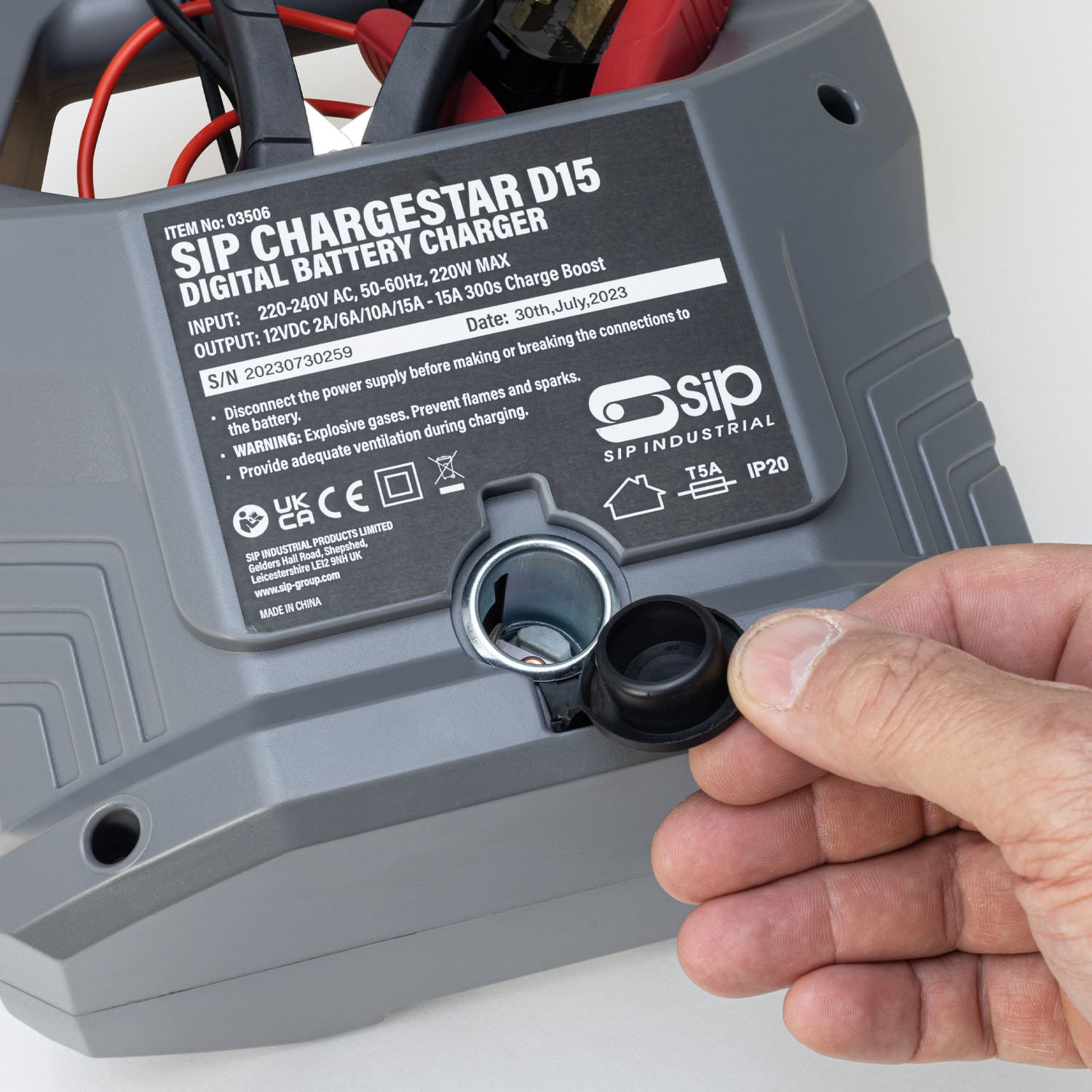

A convenient 12v DC socket is purposed as an external 7A power supply.

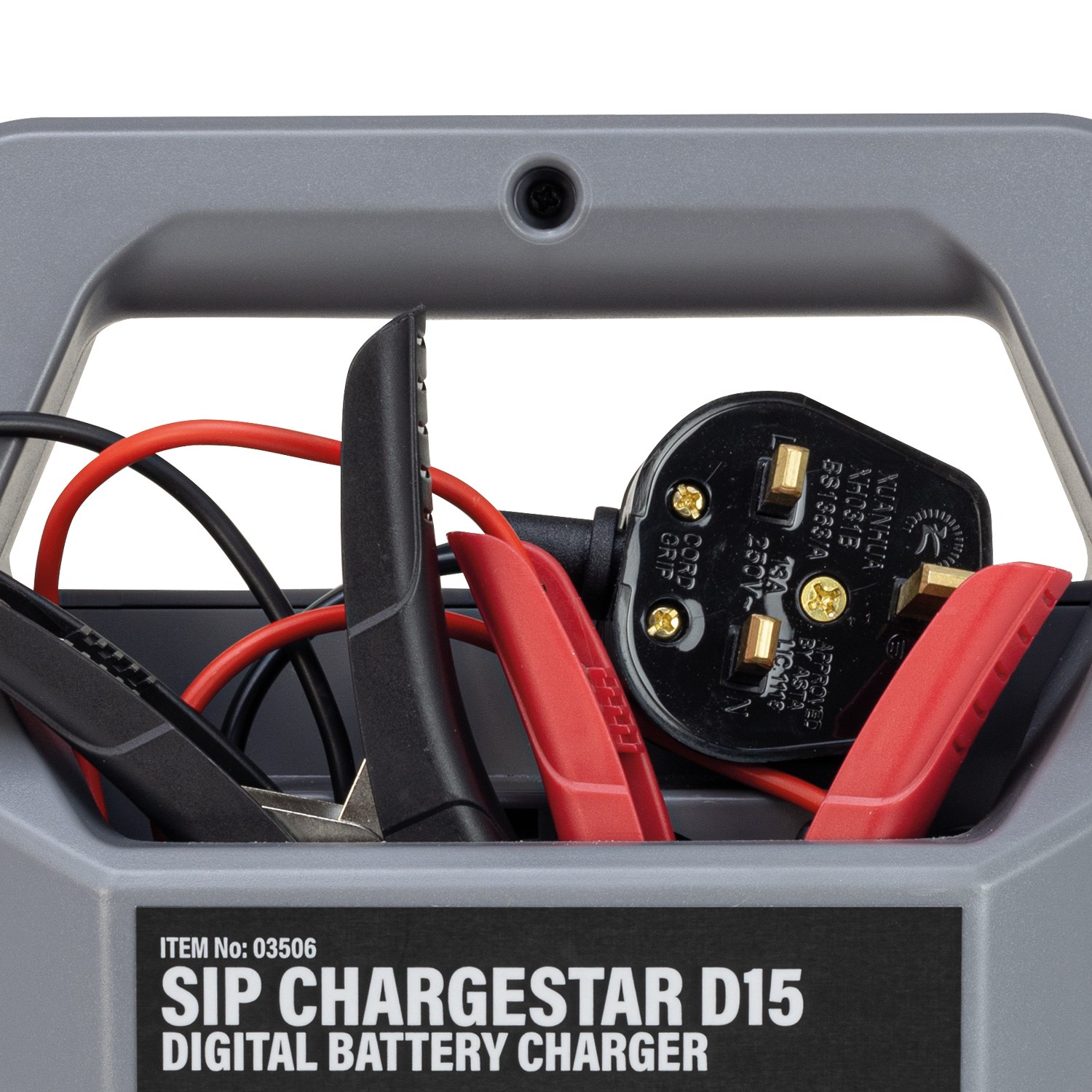

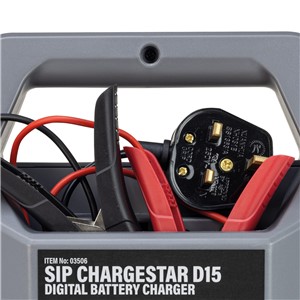

Supplied with 2x 1.2mtr leads and clip clamps.

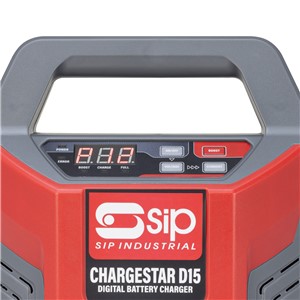

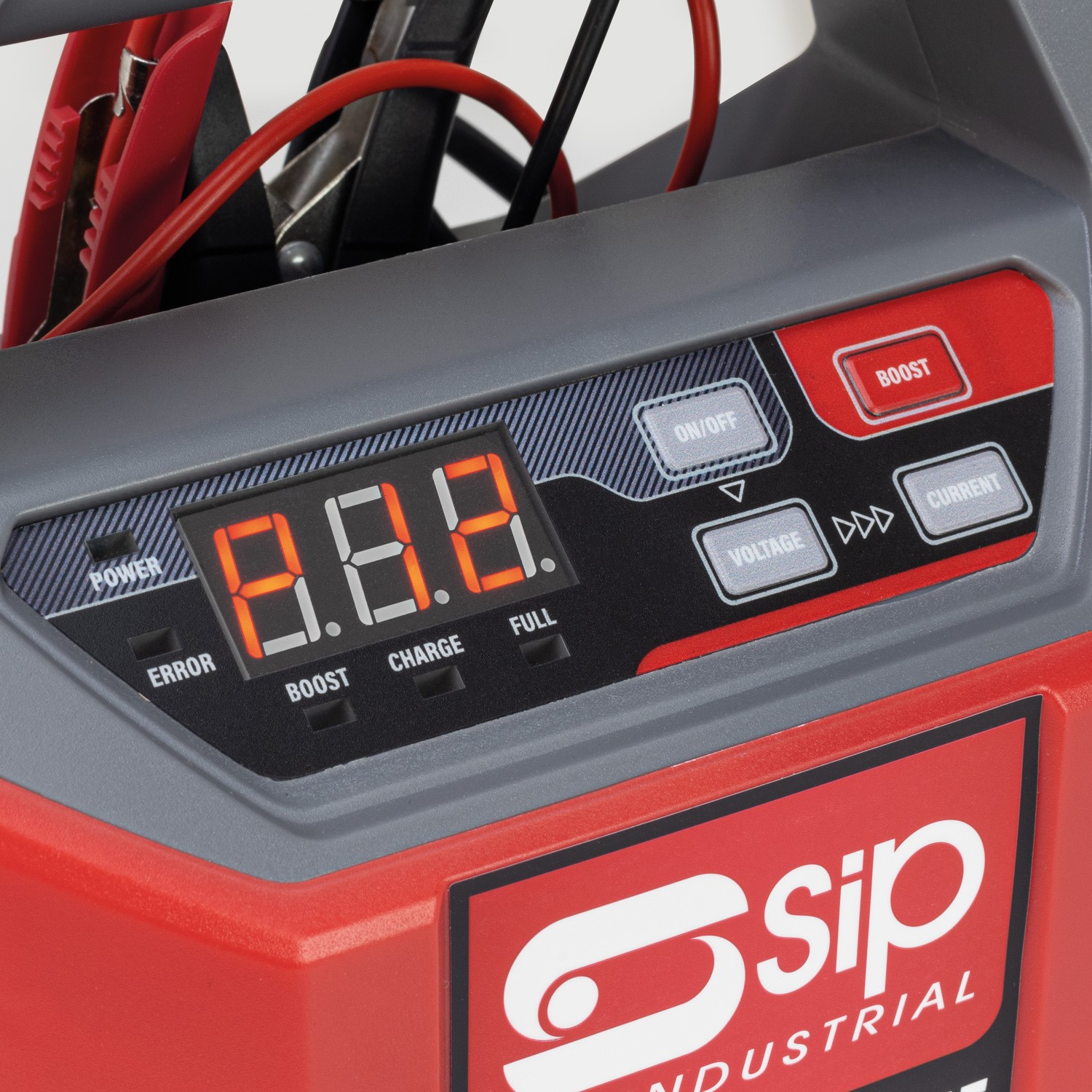

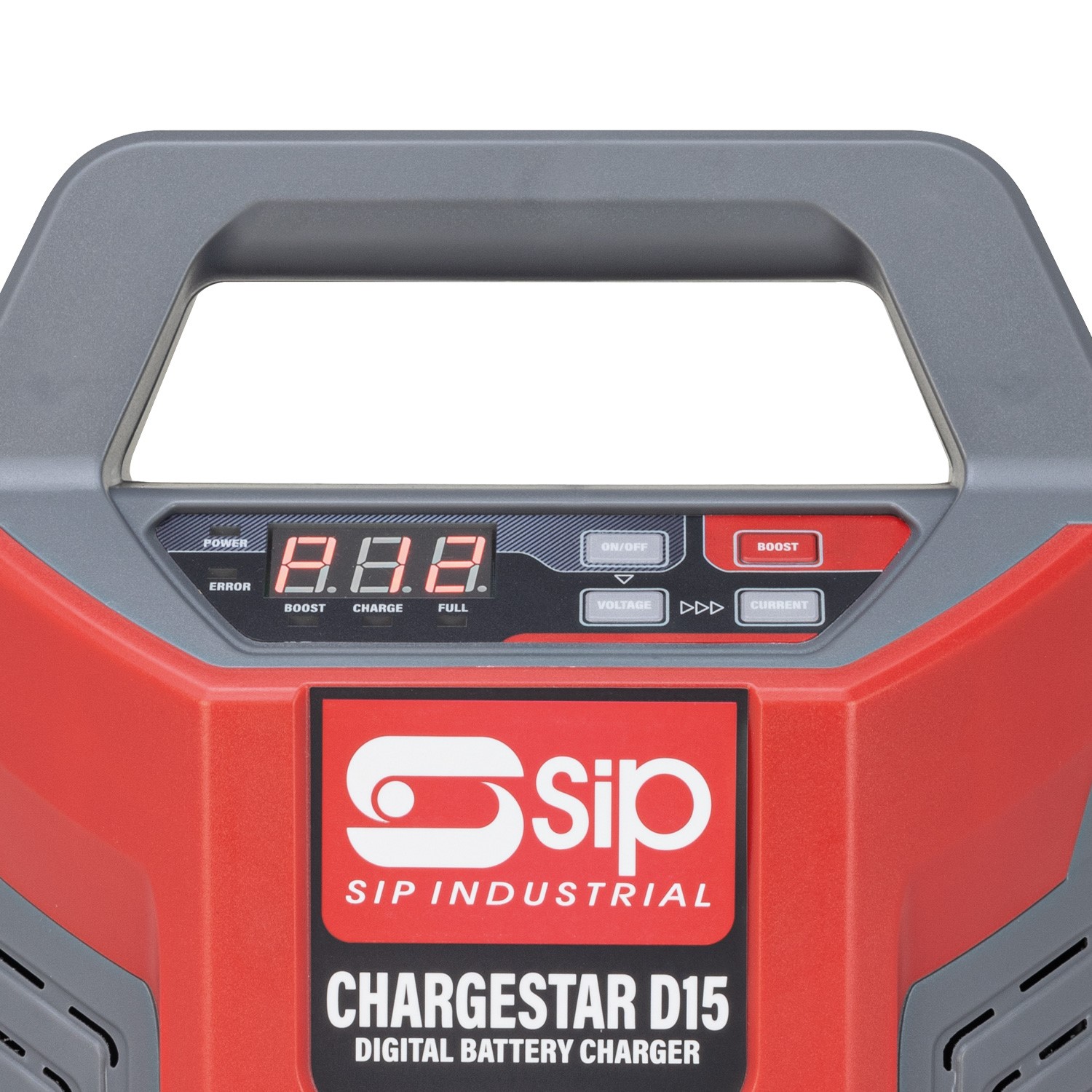

LED display and intuitive soft touch control panel.
Compact and lightweight design with carry handle for easy movement between use.

BUILT-IN SAFTY & PROTECTION FEATURES MAXIMISE USER SAFETY

Anti-spark system prevents sparks when connecting the clips to the battery terminals.
Reverse polarity and overcharge protection ensure the unit operates only when correctly connected.
Fitted with an overheat alarm to prevent charger damage. This automatically restarts once cooled.

Product Video

Technical Information

ITEM NO.	03506
Input Supply:	220v - 240v 50-60Hz, 220w max.
Input Fuse:	10A
Charging Voltage:	12v DC
Charging Current:	2A / 6A / 10A / 15A
Battery Low Voltage Detector:	>3v
Charging Steps:	6; Fully Automatic Charging Cycle
Battery Types:	All 12v Lead Acid (WET, MF, EFB, GEL, AGM)
Battery Capacity:	2Ah - 220Ah (Charging) / 220Ah - 300Ah (Maintenance)
Temperature Range:	0°C - 40°C
Protection Level:	IP20
Net Weight:	1.50kg
Gross Weight:	1.75kg
Product Dimensions:	220(H) x 220(W) x 115mm(D)
Packaged Dimensions:	230(H) x 230(W) x 145mm(D)
