WINNTEC 20 TON Trolley Bottle Jack

09844

Click on image to enlarge

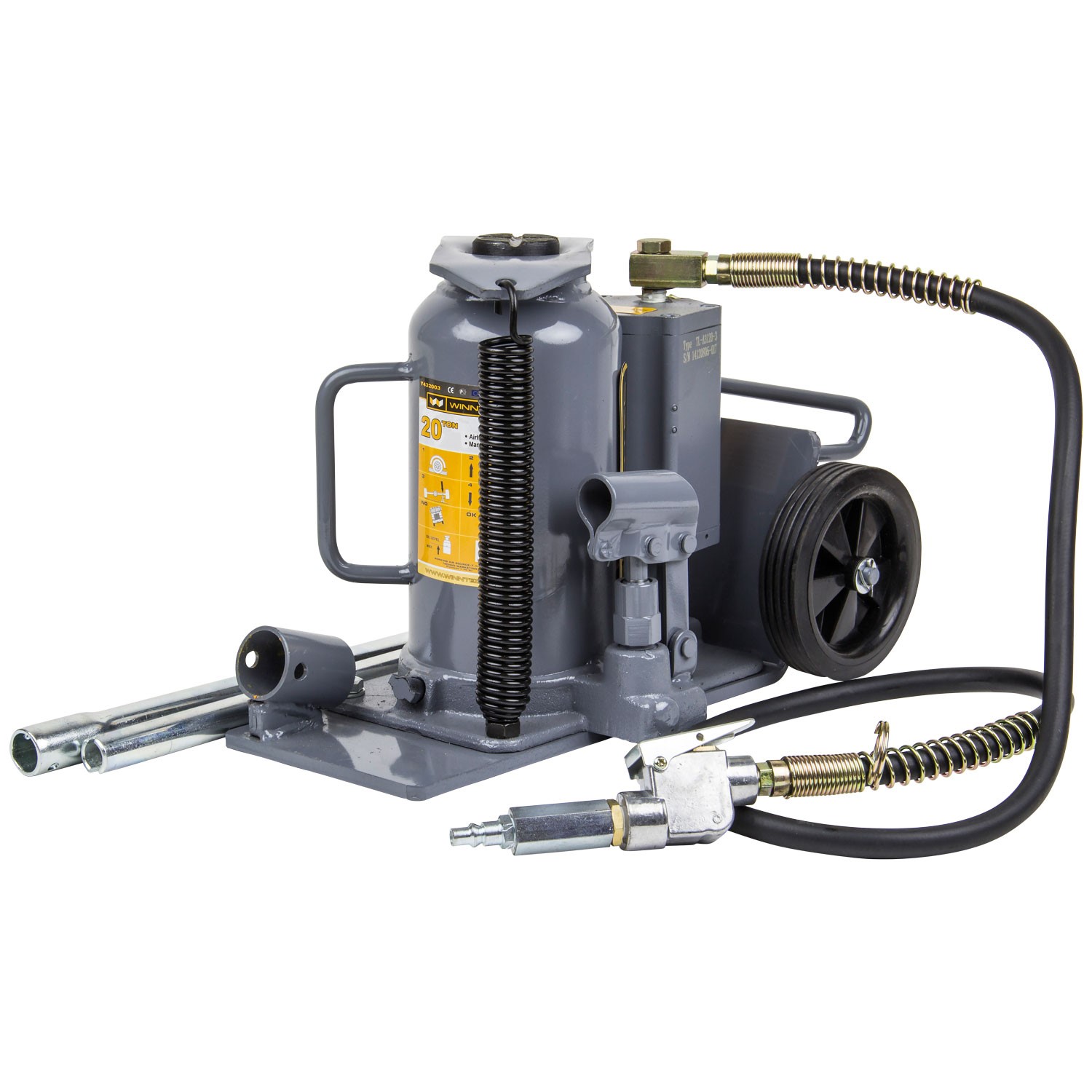

WINNTEC 20 TON Trolley Bottle Jack

09844

The WINNTEC® from SIP 20 TON Trolley Air Bottle Jack is perfect for pushing and pressing in garages and workshops, with versatility through mobile design with wheels and wide base, perfect for rugged performance along with a range of heavy-duty components.

Suitable for automotive and commercial vehicles in garages and workshops.

KEY FEATURES

253mm to 480mm lifting height range
80mm screw extension for improved versatility
Wheeled design perfect for simple positioning
Heavy-duty wide cast iron base spreads weight
Designed for horizontal and vertical operation
WINNTEC® from SIP 3-Year Warranty

WINNTEC 3-Year Warranty* | Find out more

Full Specification

The WINNTEC® from SIP 20 TON Trolley Air Bottle Jack is perfect for pushing and pressing in automotive and commercial applications in a variety of garages and workshops, offering exceptional versatility through horizontal and vertical use, with easy positioning achieved through a wide based design and wheels.

Heavy-duty components, including chromed pistons and polished main ram, ensures extremely reliable and rugged performance with smaller and larger vehicles.

Browse WINNTEC from SIP for high-quality and reliable garage equipment.

20 TON maximum weight capacity
253mm to 480mm lifting height range
80mm screw extension for improved lifting versatility
Low-profile design perfect for performance vehicles
Heavy-duty welded wide base helps spread weight evenly
Designed for both horizontal and vertical operation
Heavy-duty aluminium air motor for rugged performance
Heat-treated cylinder wall for added durability
Durable polished ram and chromed pump pistons
Integrated overload protection for safety
Air filters help prevent contamination
Quality European design for performance
WINNTEC® from SIP 3-Year Warranty

Technical Information

ITEM NO.	09844
Weight Capacity:	20 TON
Min. Lifting Height:	253mm
Max. Lifting Height:	480mm
Screw Extension:	80mm
Air Consumption:	5CFM (140ltr/min)
Net Weight:	21.00kg
Gross Weight:	22.00kg
Product Dimensions:
Packaged Dimensions:	280(H) x 260(W) x 430mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE

Warranty Information

COMES WITH A 3 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL WINNTEC PRODUCTS!

We are extremely confident that our products will offer exceptional durability, reliability, and heavy-duty performance, and to back that up we are now offering the WINNTEC 3-Year Warranty across all* WINNTEC products. On top of this, we offer a service-based Gold Warranty that extends the duration of your warranty for a further 24 months if purchased.

In addition, all SIP Premium Partner Brands now offer comprehensive warranties of their own!

FIND OUT MORE

*excludes accessories and consumables.

No extended details available.
