SIP TELE10 9A - 14A Pressure Switch

02344

Click on image to enlarge

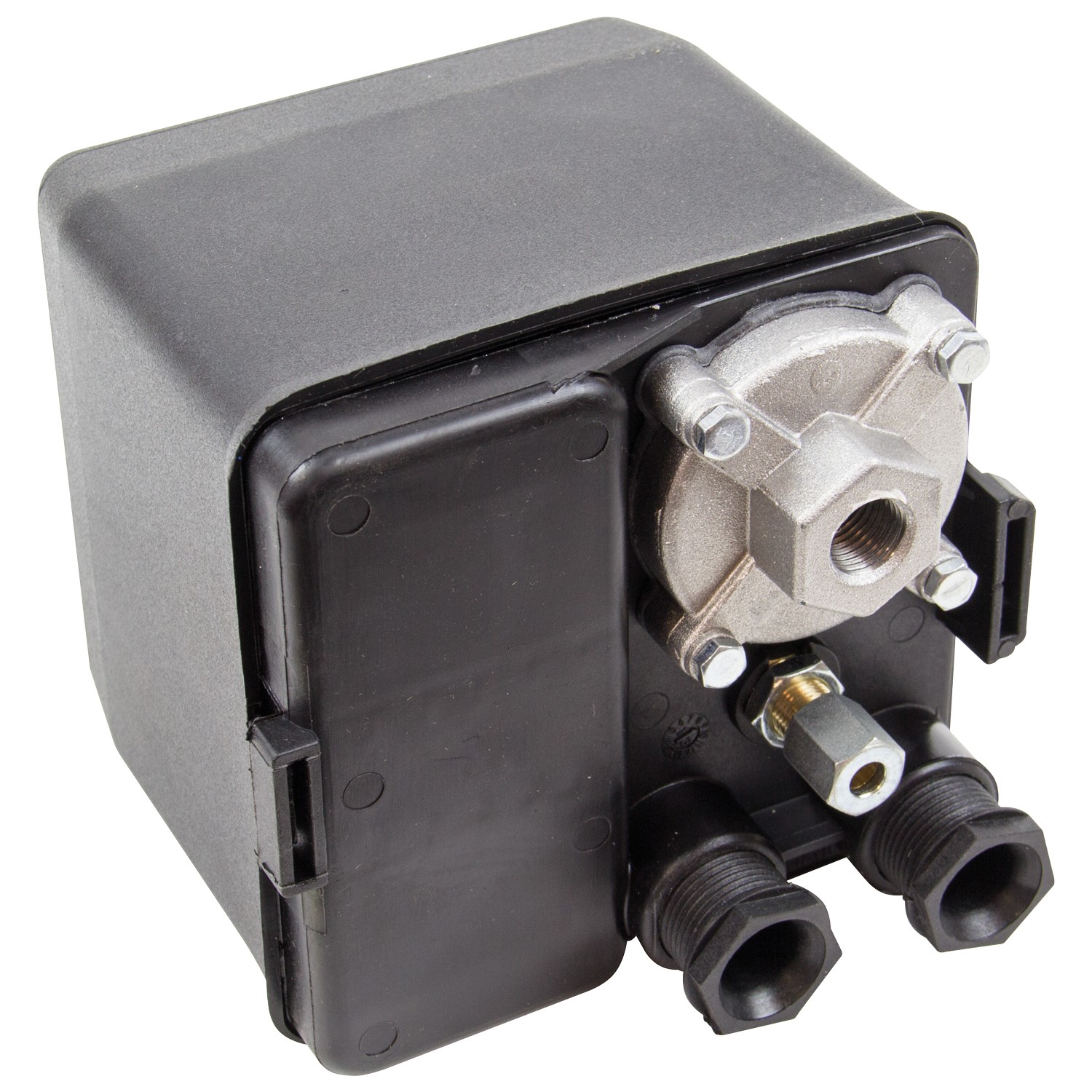

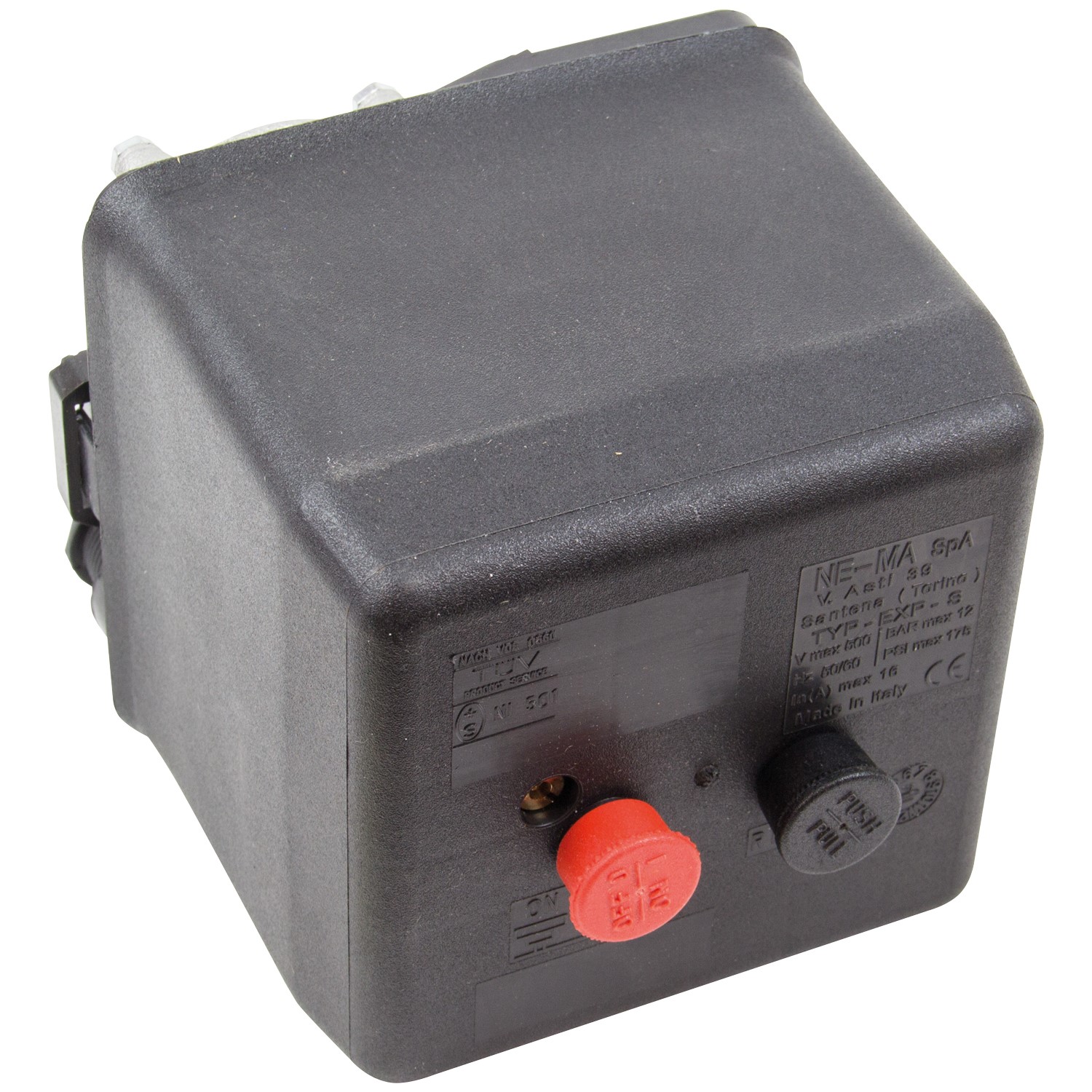

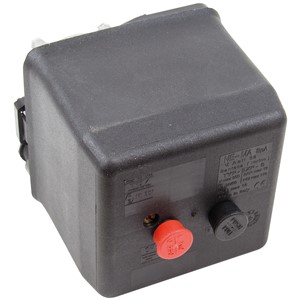

SIP TELE10 9A - 14A Pressure Switch

02344

The SIP TELE10 9A - 14A Pressure Switch is an important component for any air compressor, helping to maintain the proper pressure level demanded by the operator and air-powered equipment. This is achieved by starting the compressor motor when the pressure is lower, and stopping it when the required pressure is reached.

This pressure switch is easy-to-install and features an integrated motor starter.

KEY FEATURES

TELE10 pressure switch with integrated motor starter
Easily adjustable cut-off pressure via built-in switch
Designed to start and stop electric compressor motors
Manufactured for long-lasting and reliable use
Integrated bleed facility with 6mm pipe entry

Full Specification

The SIP TELE10 9A - 14A Pressure Switch is an important component for any air compressor, helping to maintain the proper pressure level demanded by the operator and air-powered equipment. This is achieved by starting the compressor motor when the pressure is lower, and stopping it when the required pressure is reached.

This pressure switch is easy-to-install and features an integrated motor starter.

TELE10 pressure switch with integrated motor starter
Easily adjustable cut-off pressure via built-in switch
Designed to start and stop electric compressor motors
Manufactured for long-lasting and reliable use
Integrated bleed facility with 6mm pipe entry

Technical Information

ITEM NO.	02344
Switch Type:	TELE10
Voltage / Current:	400v / 20A
Overload:	9A - 14A
Inlet Connection Size:	1/4" BSP
Inlet Connection Type	Bottom Entry
Side Port Size:	None
Switch Type:	Pull
Phase Type:	3-phase
No. of Poles:	3 poles
Net Weight:	1.00kg
Gross Weight:	1.00kg
Product Dimensions:
Packaged Dimensions:	130(H) x 80(W) x 50mm(D)
