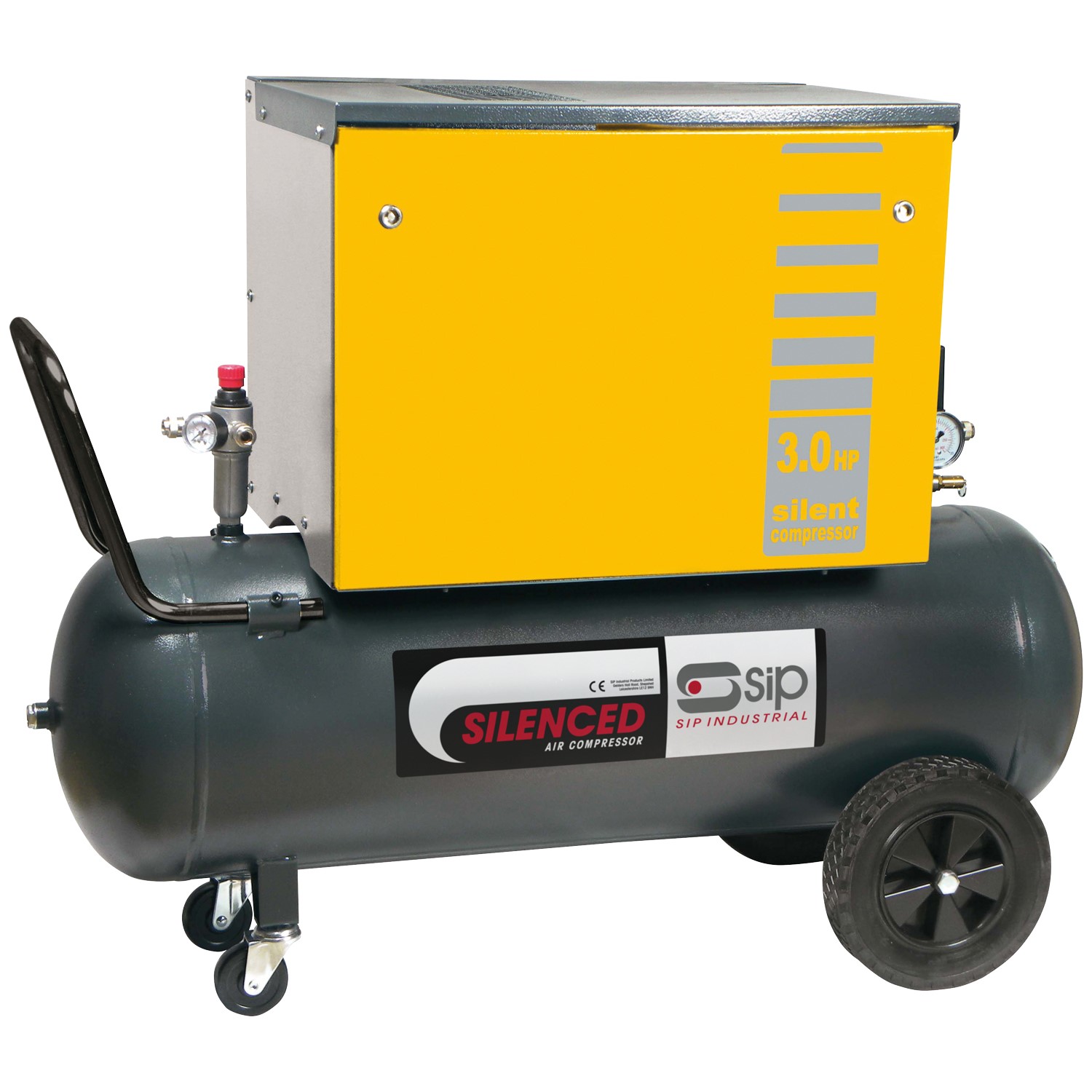

SIP PB3800/3M/100 Silenced Piston Compressor

06219

Click on image to enlarge

SIP PB3800/3M/100 Silenced Piston Compressor

06219

The SIP PB3800/3M/100 100ltr Silenced Piston Compressor is a powerful silenced piston compressor designed to provide reliable performance and long-lasting durability at a fraction of the operating noise offered by other compressor types. This is achieved via low-noise belt-driven operation and soundproof cabinet with air intake silencer.

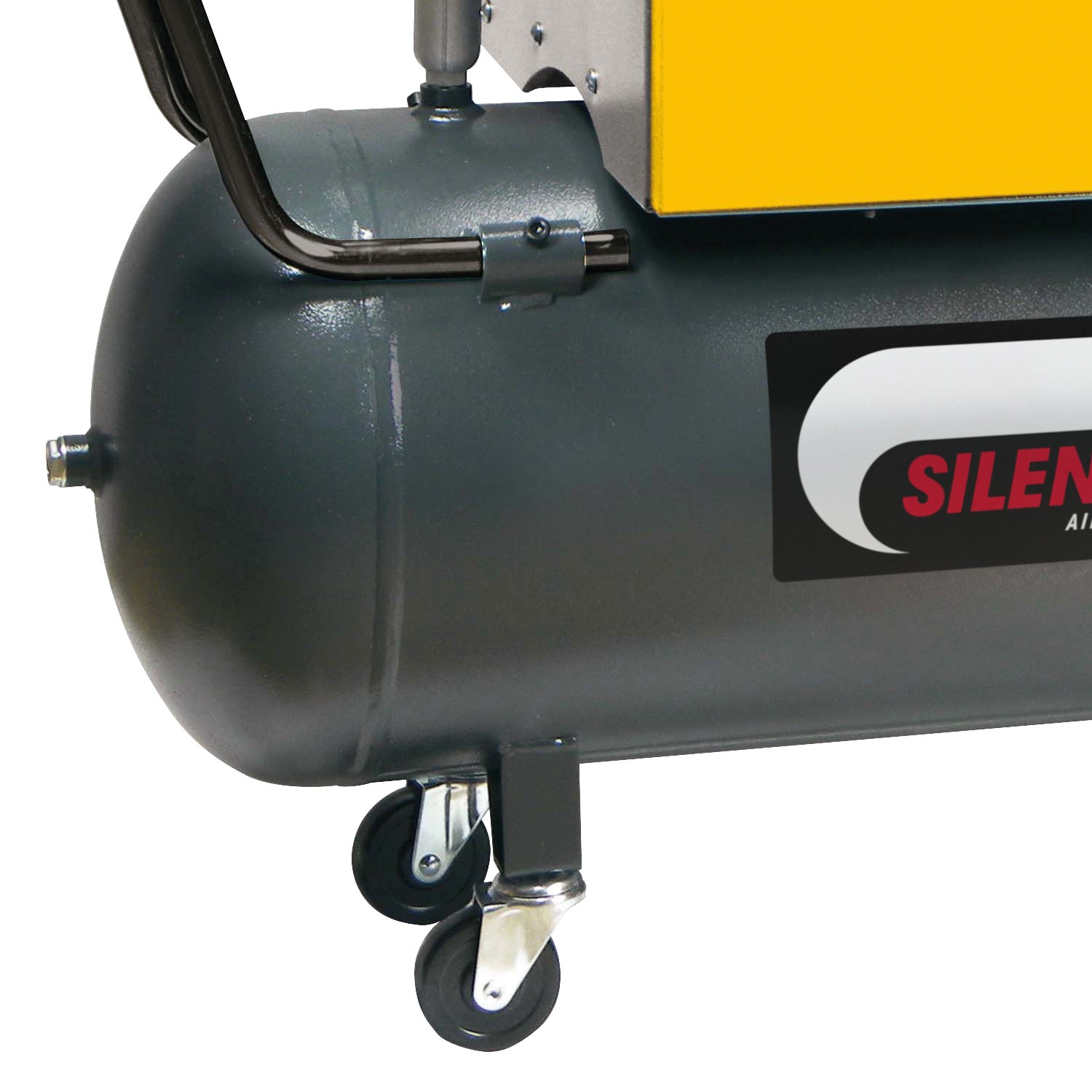

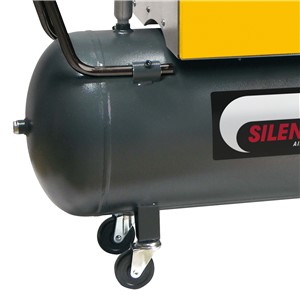

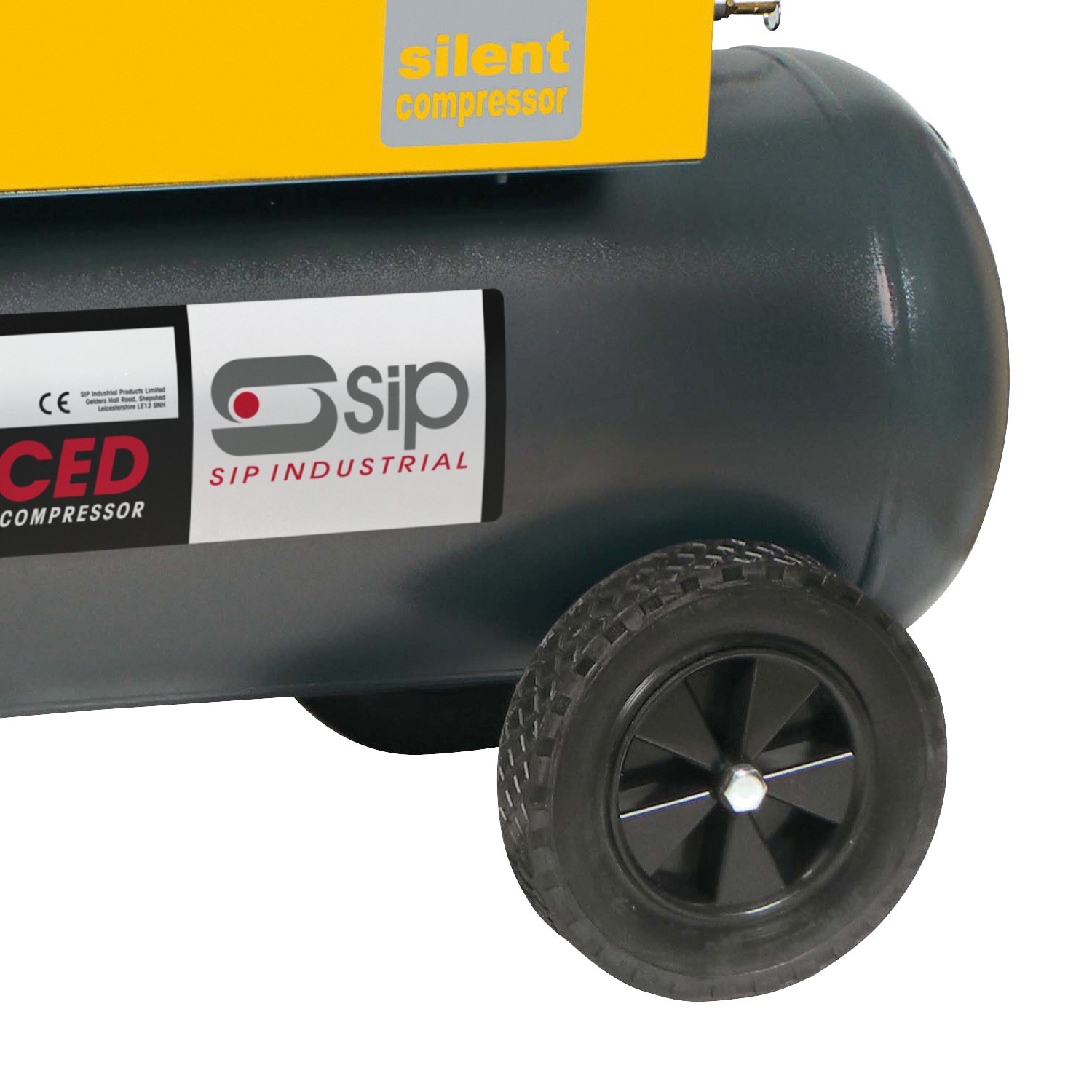

A wheel-mounted design ensures the PB3800/3M/100 is an excellent addition to any workshops requiring mobility or positioning near the workspace.

KEY FEATURES

Belt-driven performance with low noise levels
Compact and wheel-mounted design for easy movement
Soundproof cabinet enclosure with air intake silencer
Quick access panel for easy servicing and maintenance
Compact wheel-mounted design for easy positioning

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP PB3800/3M/100 100ltr Silenced Piston Compressor is a powerful silenced piston compressor designed to provide reliable performance and long-lasting durability at a fraction of the operating noise offered by other compressor types. This is achieved via low-noise belt-driven operation and soundproof cabinet with air intake silencer.

A wheel-mounted design ensures the PB3800/3M/100 is an excellent addition to any workshop requiring mobility or positioning near the workspace.

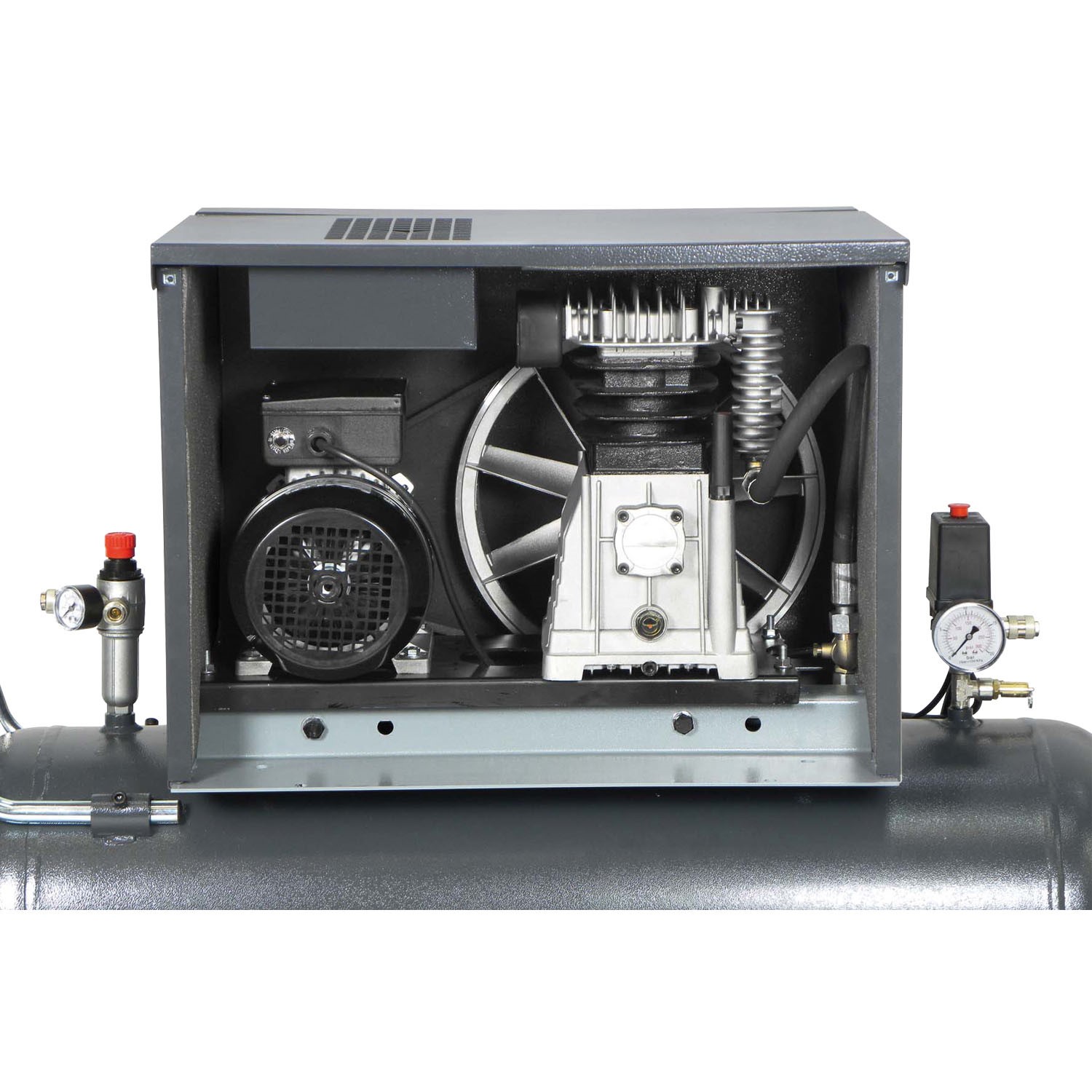

An integrated quick access panel ensures that servicing and maintenance is easy.

Belt-driven performance with low noise levels perfect for close installation
Soundproof cabinet enclosure with built-in air intake silencer
Quick access panel for easy servicing and maintenance requirements
Heavy-duty 2-stage pump for high efficiency and performance
Compact and wheel-mounted design for easy movement
Heavy-duty rubber-mounted saddle
SIP 2-Year Standard Silver Warranty
Manufactured in Italy

Technical Information

ITEM NO.	06219
Input Supply:	230v (16A)
Motor Power:	3hp (2.2kW)
Receiver Size:	100ltr
Piston Displacement:	14.00CFM (396ltr/min)
Free Air Delivery (FAD):	9.50CFM (269ltr/min)
Max. Air Pressure:	145psi (10bar)
No. of Cylinders:	2 cylinders
No. of Stages:	1 stage
Noise Level:	69dB(A)
Net Weight:	85.00kg
Gross Weight:	90.00kg
Product Dimensions:
Packaged Dimensions:	1120(H) x 1270(W) x 535mm(D)
