SIP 14" 230v Abrasive Cut-Off Metal Saw

01308

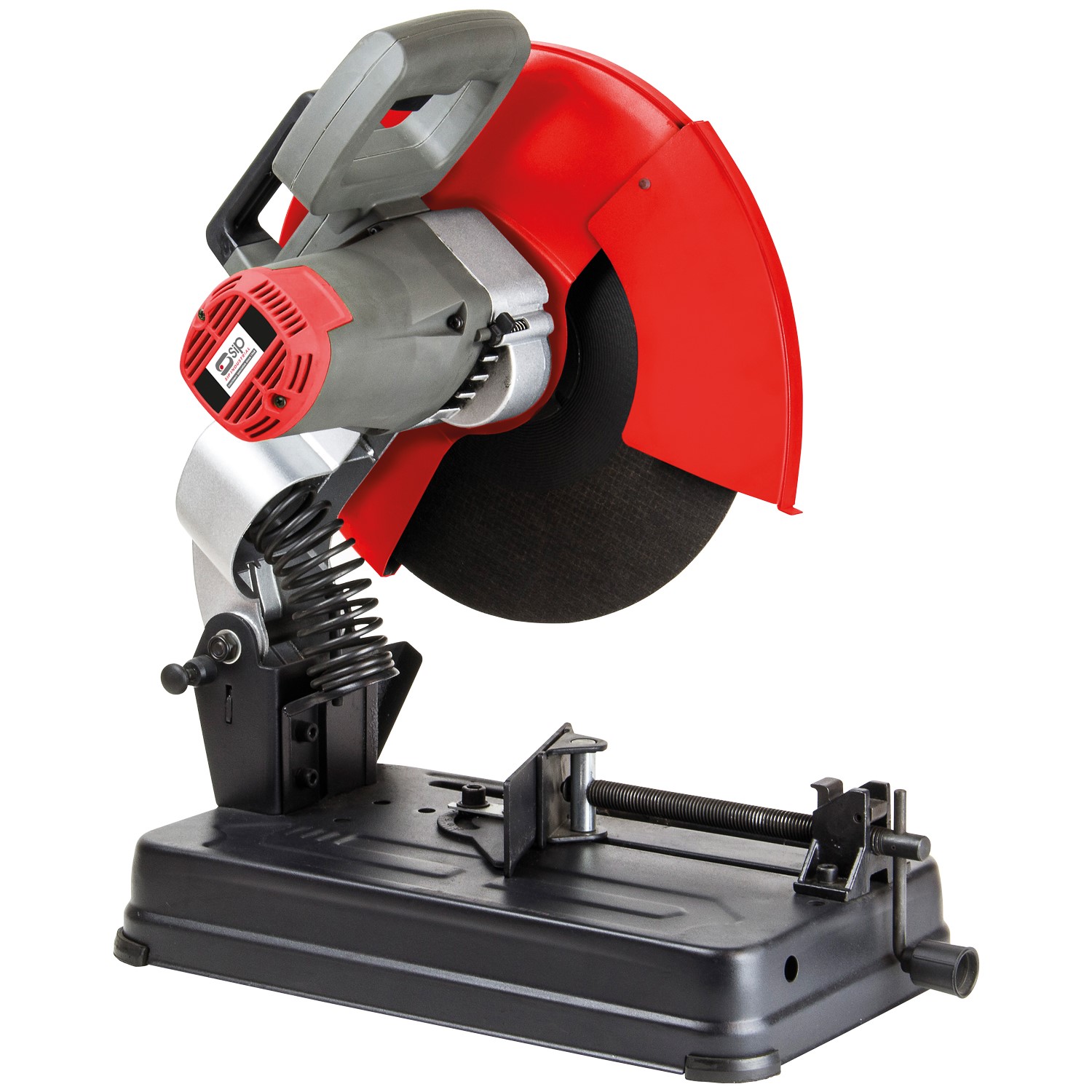

SIP 14" 230v Abrasive Cut-Off Metal Saw
01308

The SIP 14" Abrasive Cut-Off Saw is designed for efficient cutting of all ferrous metals, featuring a powerful 3.2hp motor, adjustable vice, folding head with carry handle, and a 0° to 45° mitre facility.

  • 230v (13A) input supply
  • 3.2hp (2.4kW) motor for high performance
  • Complete circular cutting capacities:
    • @ 0°: 130mm, @ 45°: 110mm (tube)
    • @ 0°: 120 x 120, @ 45°: 90 x 90mm (box)
    • @ 0°: 140 x 140, @ 45°: 90 x 90mm (angle)
    • @ 0°: 180 x 85, @ 45°: 100 x 80mm (rect)
  • Lockable head with carry handle; compact for portability
  • Abrasive disc perfect for severing large ferrous metals
  • Heavy-duty head return spring; enables quick return to
    the start position and aids operator cutting control
  • Rise and fall guard ensures cutting area is protected
    and reliably directs sparks away from the operator
  • Adjustable vice with quick release clamp nut allows
    the operator to quickly cut varying material sizes
  • 0° to 45° mitre facility for added versatility

Technical Information

ITEM NO. 01308
Input Supply: 230v (13A)
Motor Power: 3.2hp (2.4kW)
Blade Speed: 3800rpm
Blade Size: 350mm x 2.5mm x 25.4mm
Max. Cutting Capacity: 00°: Ø 130mm (Round Tube)
00°: 120 x 120mm (Square Box)
00°: 180 x 85mm (Rectangular)
00°: 140 x 140mm (Angle Iron)
45°: Ø 110mm (Round Tube)
45°: 90 x 90mm (Square Box)
45°: 100 x 80mm (Rectangular)
45°: 90 x 90mm (Angle Iron)
Net Weight: 15.40kg
Gross Weight: 17.50kg
Product Dimensions:
Packaged Dimensions: 445(H) x 600(W) x 365mm(D)
No extended details available.
No extended details available.
No extended details available.
