SIP Spring Compressor

03638

Click on image to enlarge

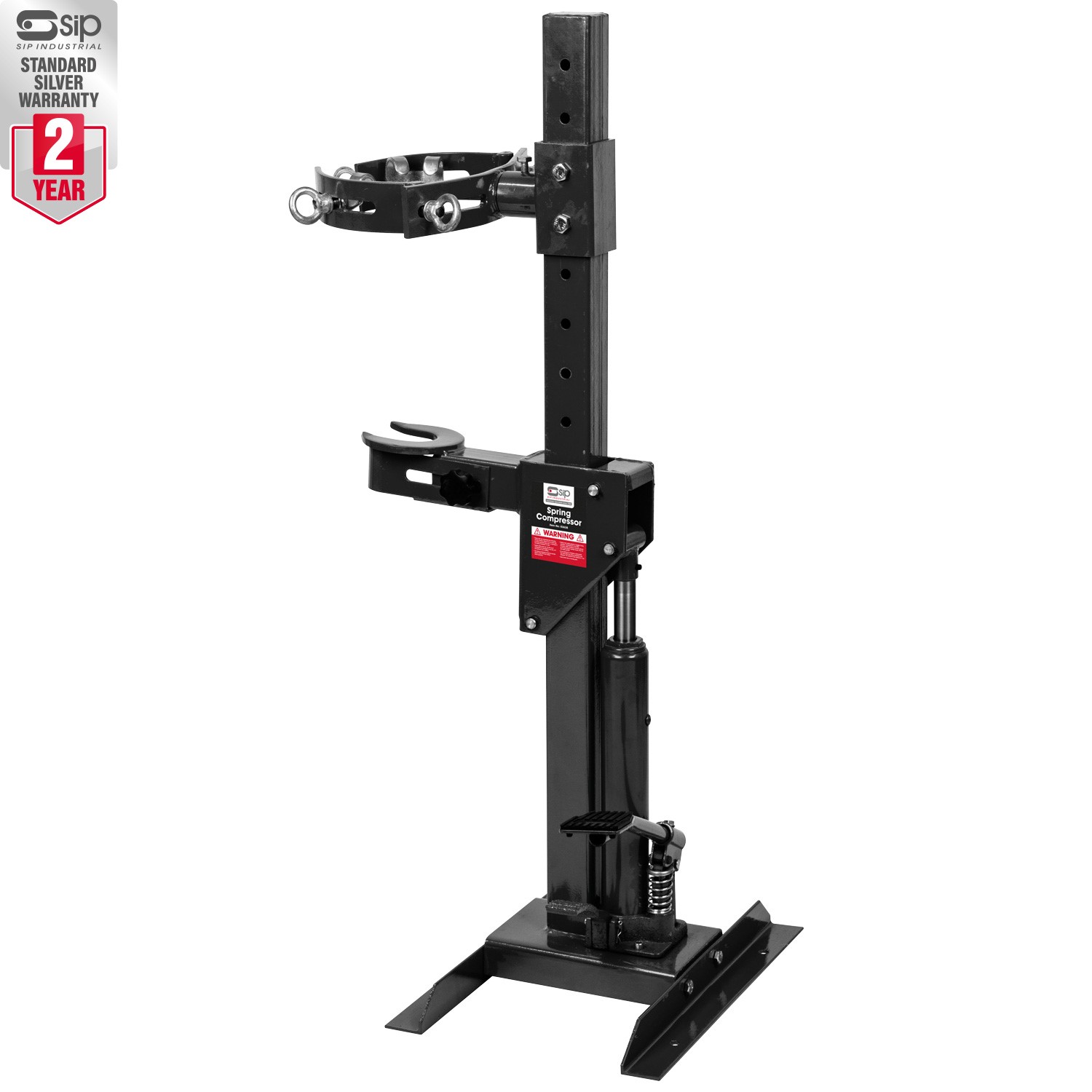

SIP Spring Compressor

03638

The SIP Spring Compressor offers heavy-duty compression up to 1000kg (2204lb) within a compact space-saving design, ideal for garage and workshop environments where floor space is limited. This compressor is ideal for springs between ⌀ 4" and 10".

Unlike other spring compressors available on the market, the SIP Spring Compressor puts operator safety first by providing efficient, safe and fast one-person operation.

KEY FEATURES

480mm working length and 325mm ram travel
Perfect for spring sizes between ⌀ 4" and 10"
Powerful spring compression up to 1000kg (2204lb)
Fast one-person operation for increased safety
Space-saving, compact yet heavy-duty design
Ideal for spaces with limited floor space

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP Spring Compressor offers heavy-duty compression up to 1000kg (2204lb) within a compact space-saving design, ideal for garage and workshop environments where floor space is limited. This compressor is ideal for springs between ⌀ 4" and 10".

Unlike other spring compressors available on the market, the SIP Spring Compressor puts operator safety first by providing efficient, safe and fast one-person operation.

This compressor is ideally suited for removing and installing coil springs on vehicle suspension systems including on cars, vans and trucks.

480mm working length and 325mm ram travel
Perfect for spring sizes between ⌀ 4" and 10"
Powerful spring compression up to 1000kg (2204lb)
Fast one-person operation for increased safety
Space-saving, compact yet heavy-duty design
Ideal for spaces with limited floor space
SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO.	03638
Max. Compression:	1000kg (2204lb)
Spring Size Range:	Min. Ø 4" (101mm) Max. Ø 10" (254mm)
Working Length:	480mm
Ram Travel:	325mm
Net Weight:	30.90kg
Gross Weight:	32.90kg
Product Dimensions:
Packaged Dimensions:	170(H) x 295(W) x 1220mm(D)
