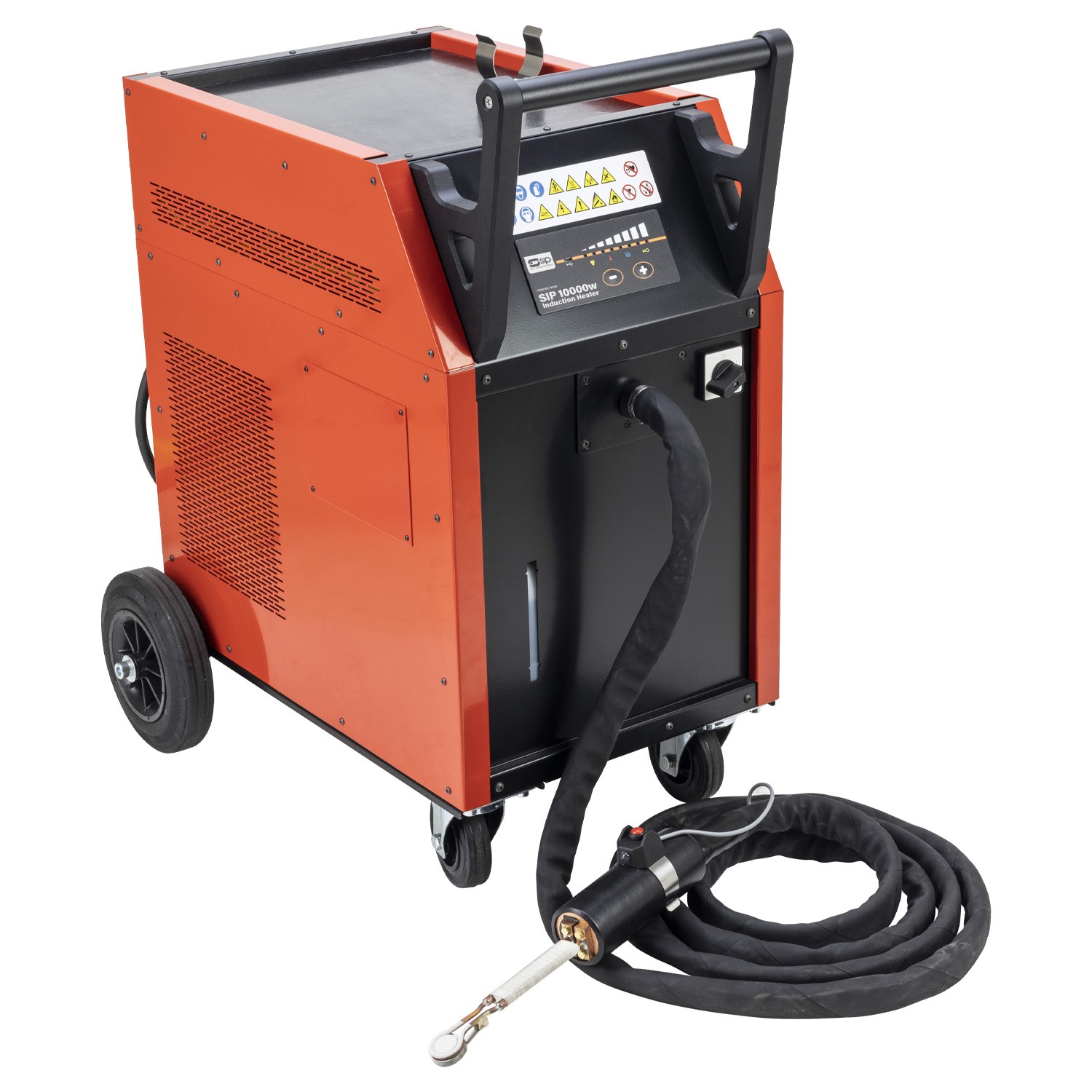

SIP 10000w Induction Heater

01158

Click on image to enlarge

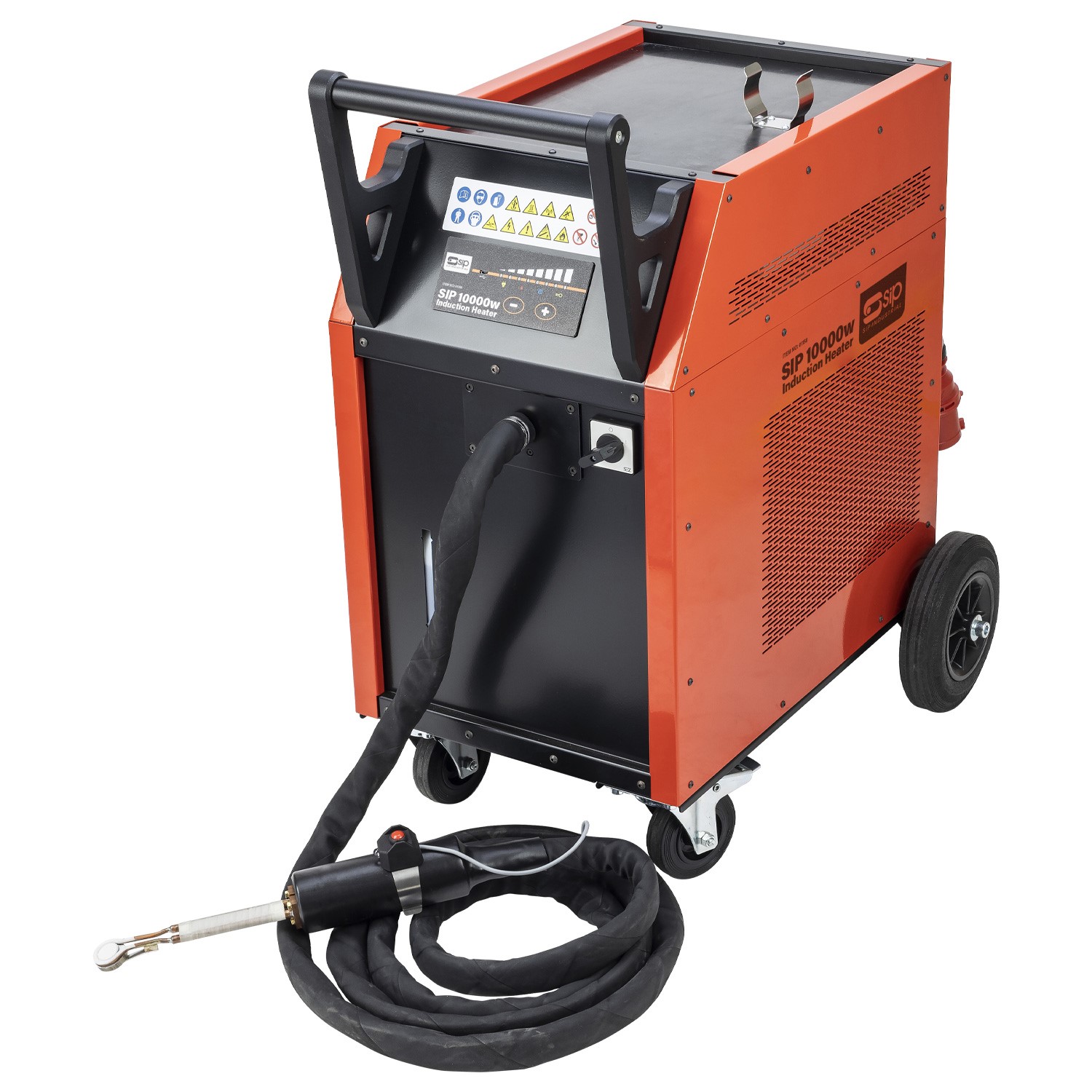

SIP 10000w Induction Heater

01158

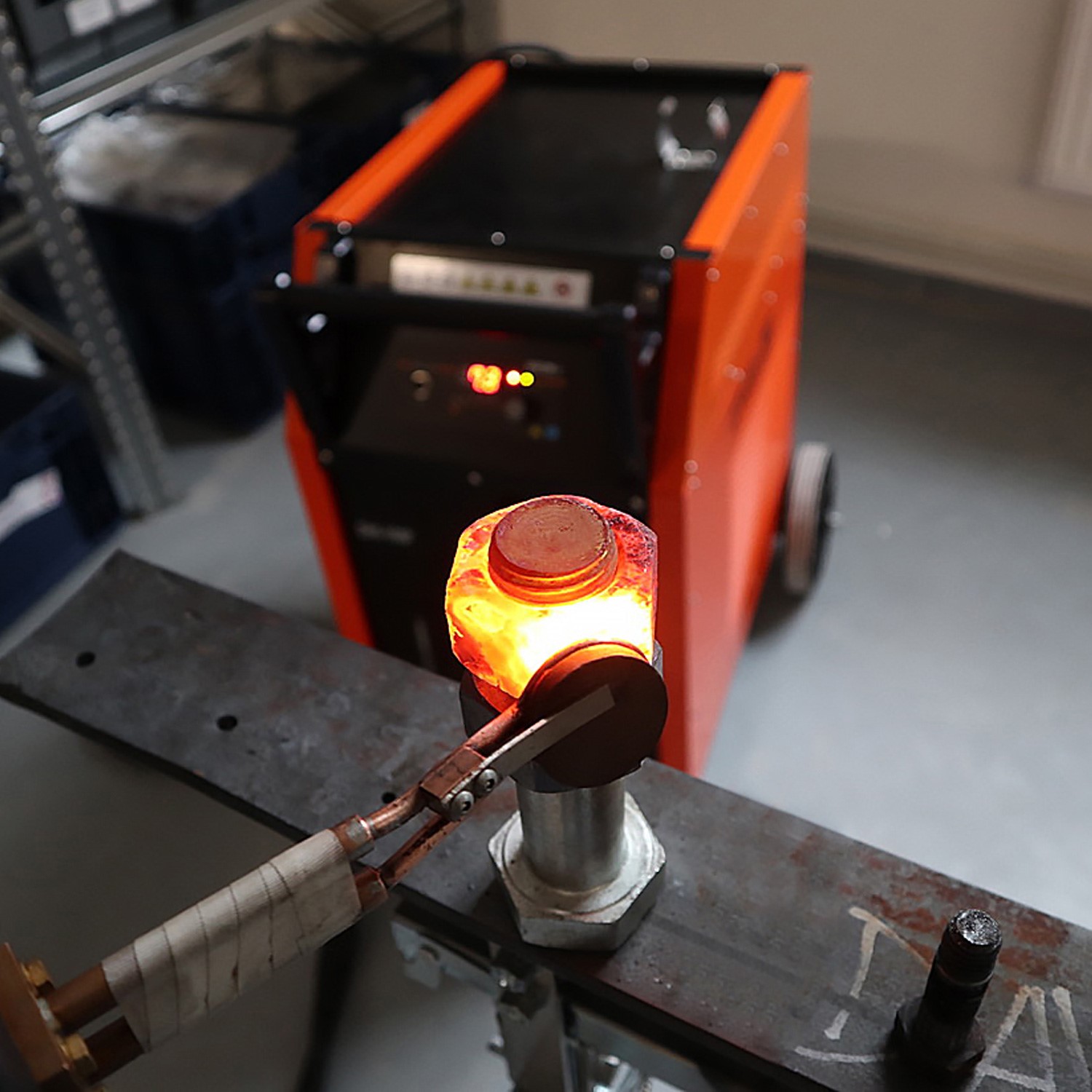

The SIP 10000w Induction Heater is perfect for pre-heated welded fabrications, heat treatment and various manufacturing processes. This induction heater is designed for use in heavy-duty industrial applications.

A liquid cooling system allows the induction torch to safely reach temperatures of 1000°C within 15 seconds. This prevents the cable and torch from overheating, which maximises performance and protects the user's hands from the heat produced.

This plug-and-play solution uses an all-electric process which offers greater levels of safety compared to oxyacetylene and other methods which use a naked flame.

KEY FEATURES

Powerful and compact (10,000w) for safe and efficient heat
Reaches temperatures up to 1000°C within 15 seconds
Liquid-cooled induction cable and torch with 'one-touch trigger'
Integrated fan-cooled radiator maintains torch cooling and performance
Mobile unit with hard-wearing tyres and swivel castors
Plug-and-play solution with an all-electric process

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP 10000w Induction Heater is perfect for pre-heated welded fabrications, heat treatment and various manufacturing processes. This induction heater is designed for use in heavy-duty industrial applications.

A liquid cooling system allows the induction torch to safely reach temperatures of 1000°C within 15 seconds. This prevents the cable and torch from overheating, which maximises performance and protects the user's hands from the heat produced.

This plug-and-play solution uses an all-electric process which offers greater levels of safety compared to oxyacetylene and other methods which use a naked flame.

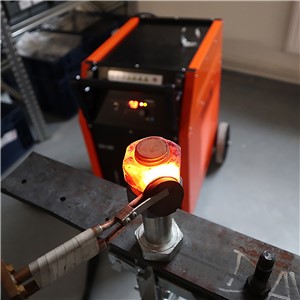

Applications & uses: Ideal for heavy-duty industrial applications. Perfect for pre-heated welded fabrications and heat treatment. Suitable for use in manufacturing processes such as metal stress releasing welding distortion and component assembly.

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification 2

POWERFUL & COMPACT (10,000W)

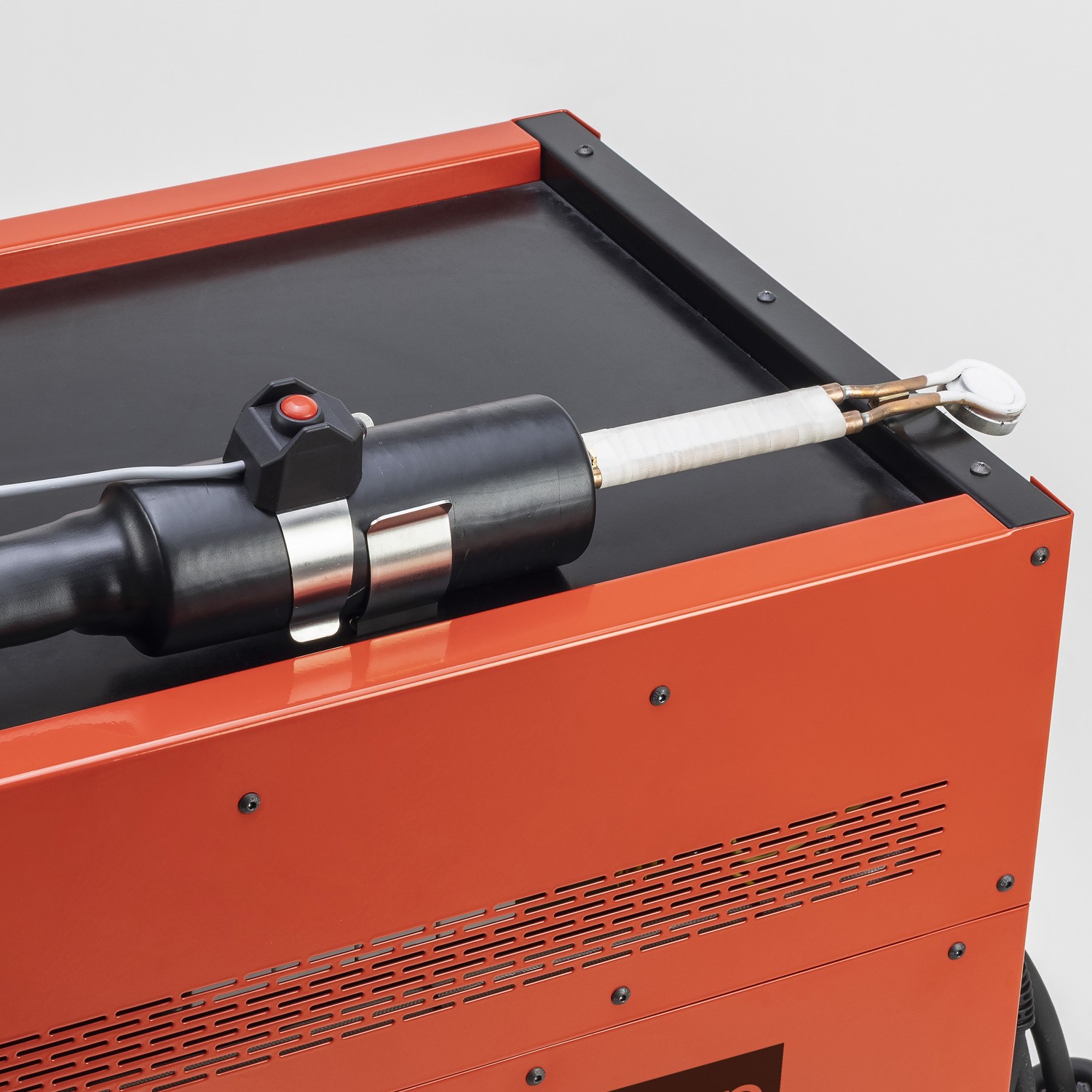

Features a 4mtr induction cable torch with 'one-touch' trigger and contact heating pad.

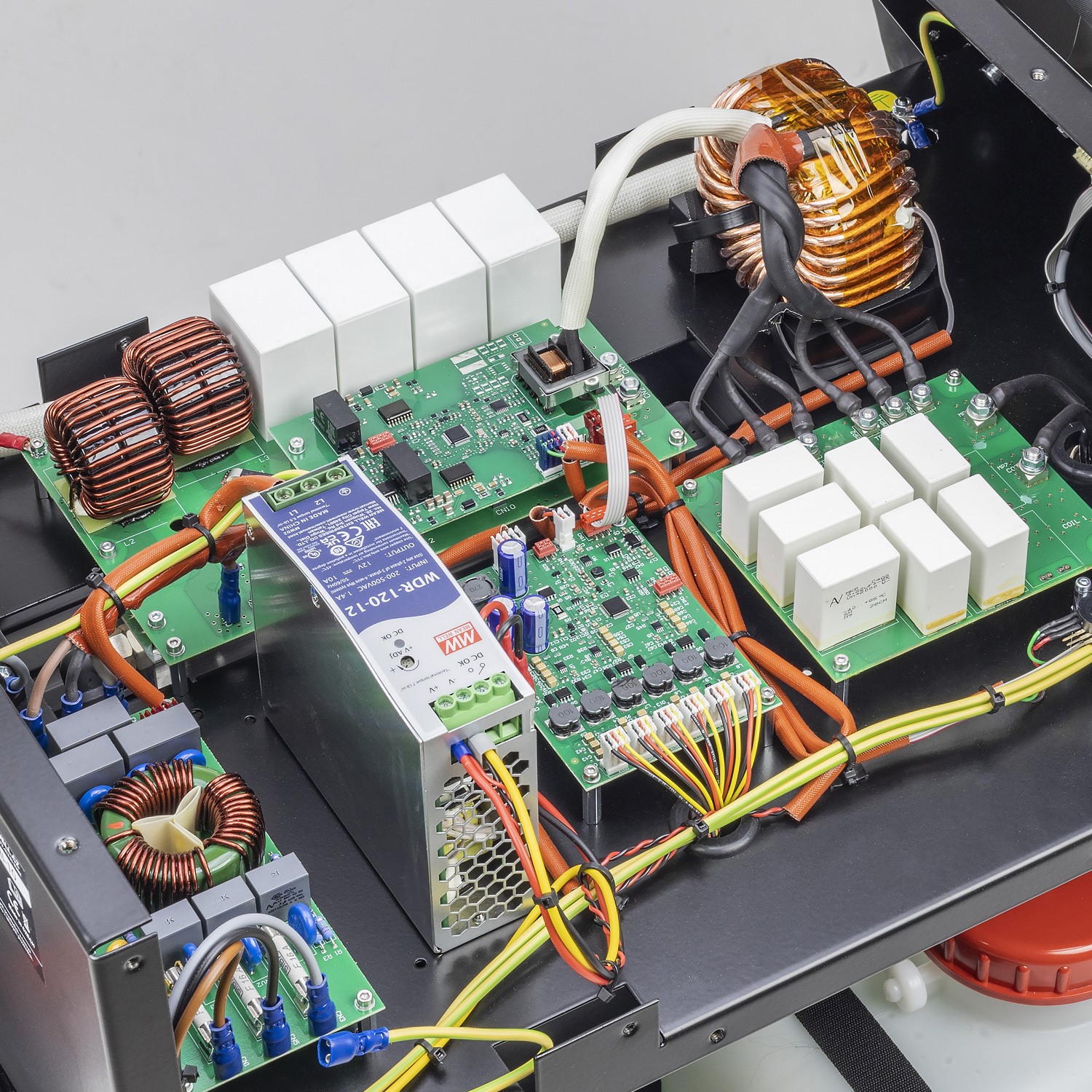

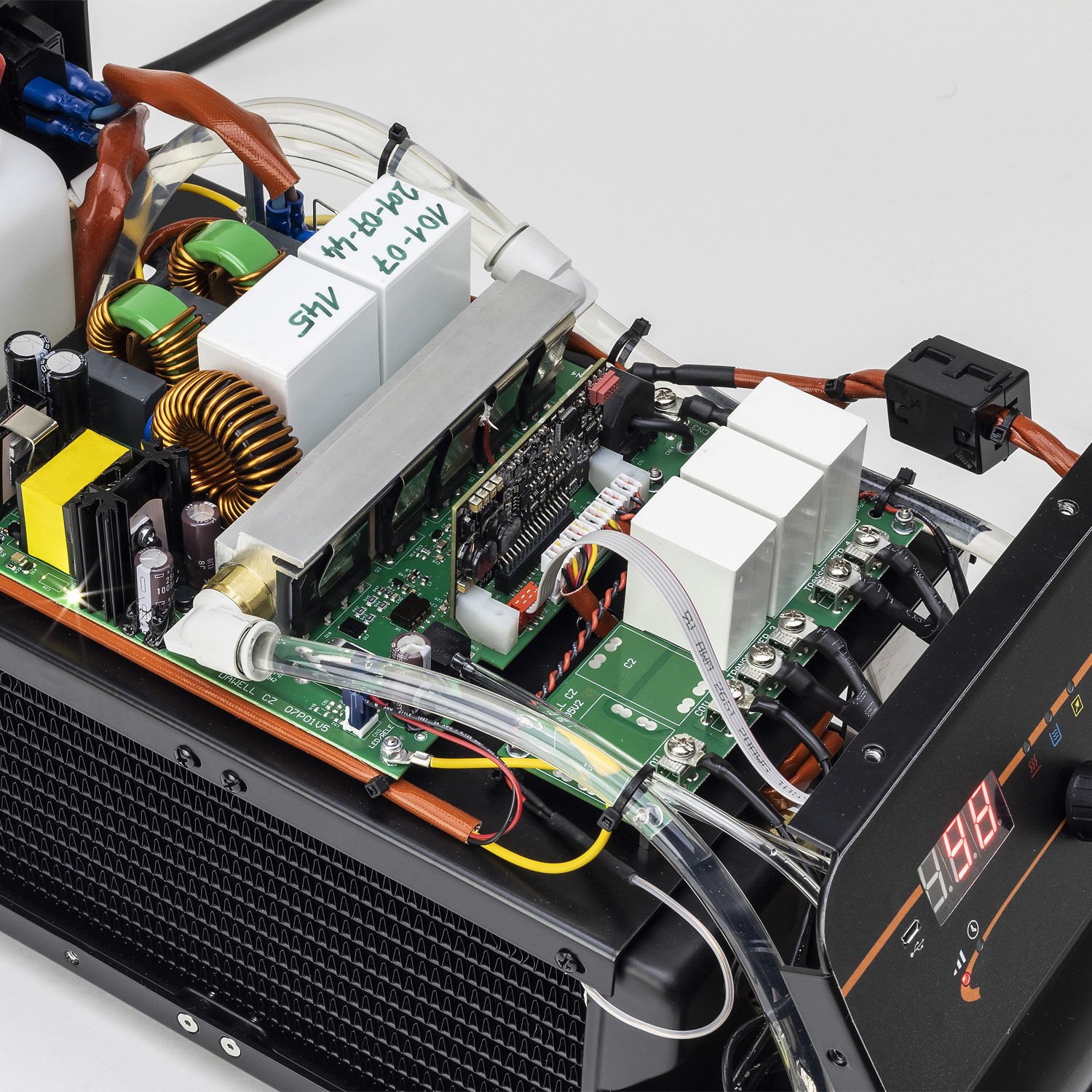

Mobile unit delivers fast, safe and efficient heat quickly via the 10kW inverter power module.

LIQUID-COOLED INDUCTION CABLE & TORCH

A 10ltr coolant tank maintains integrity of the induction coils and keeps torch handle cool for long product life.
A flow switch protects the unit by ensuring the correct coolant fluid level is maintained.

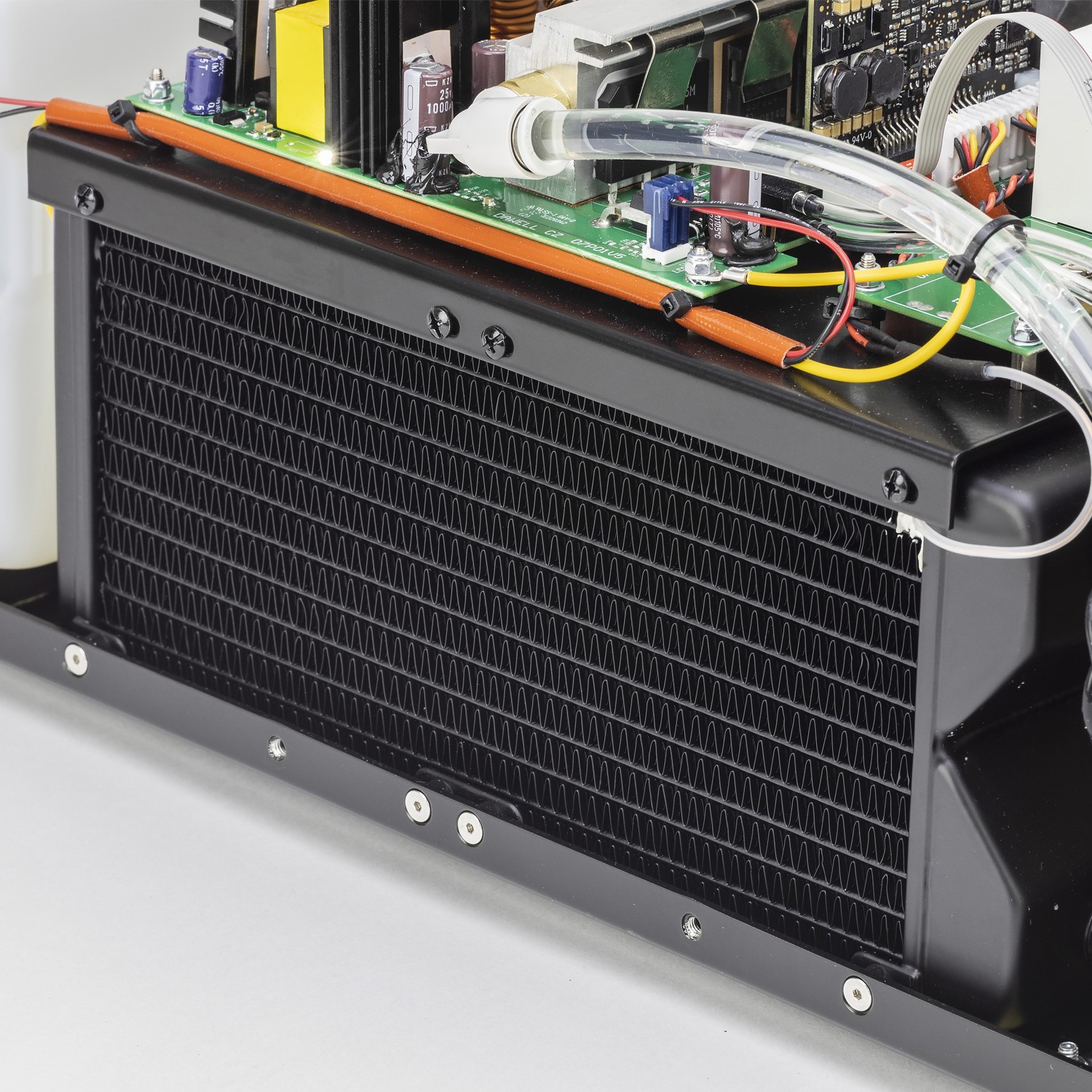

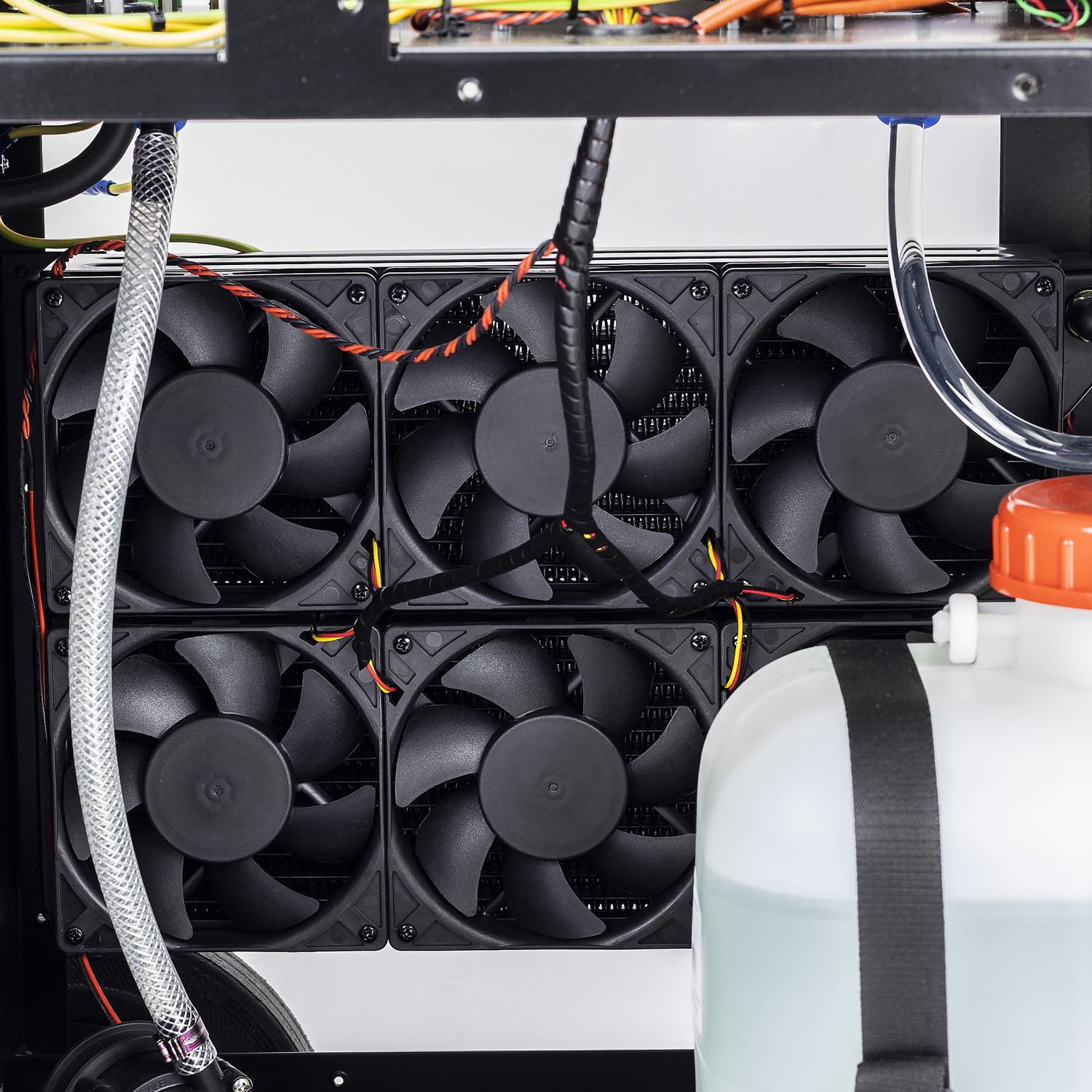

INTEGRATED FAN-COOLED RADIATOR

Water returned from the induction torch enters a 6-fan-cooled radiator system. This is connected via a pipe system to the 10ltr coolant tank.

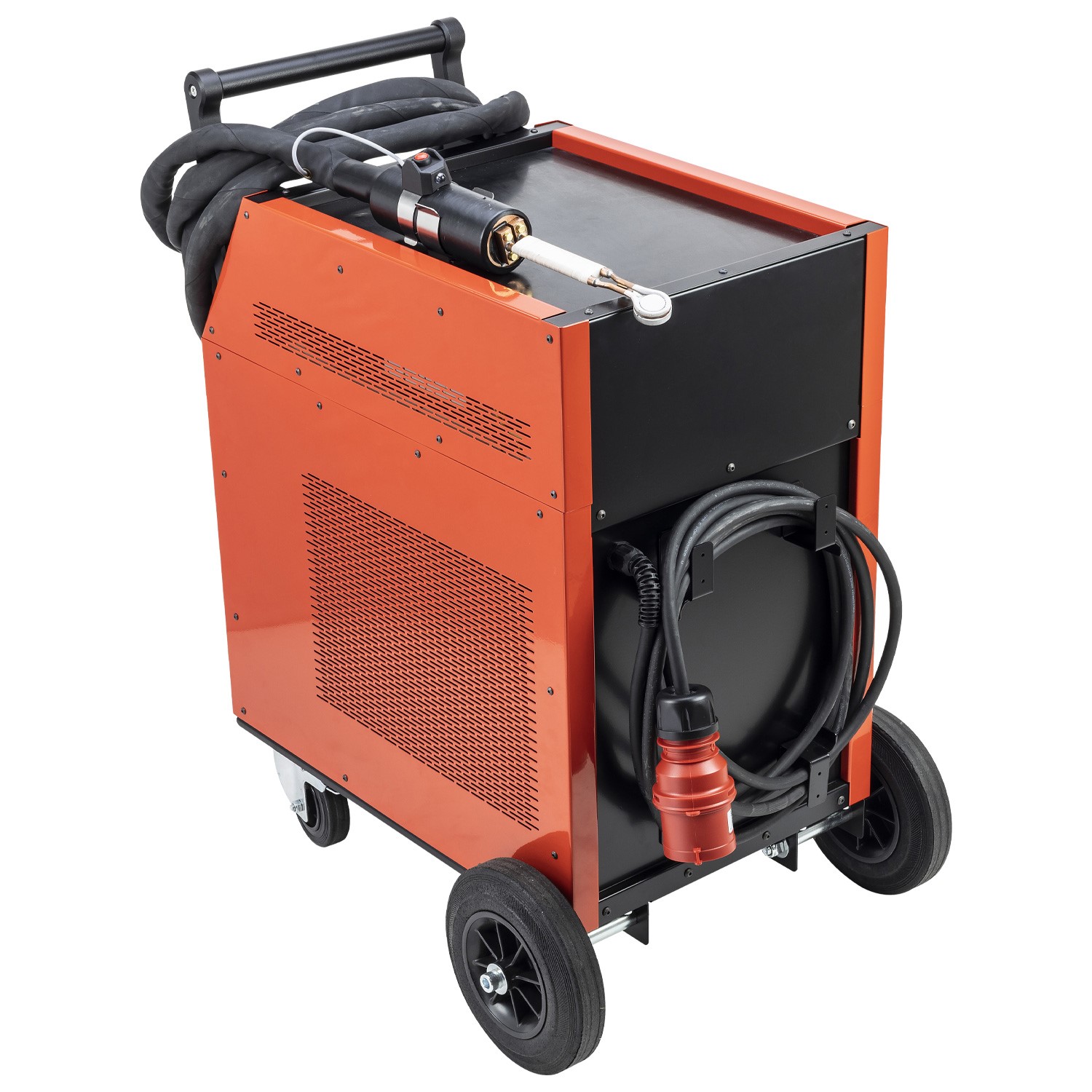

STURDY & ROBUST

Solid-frame mobile unit with hard-wearing tyres and lockable swivel castors.
Large internal case for heat-cooling and induction performance.

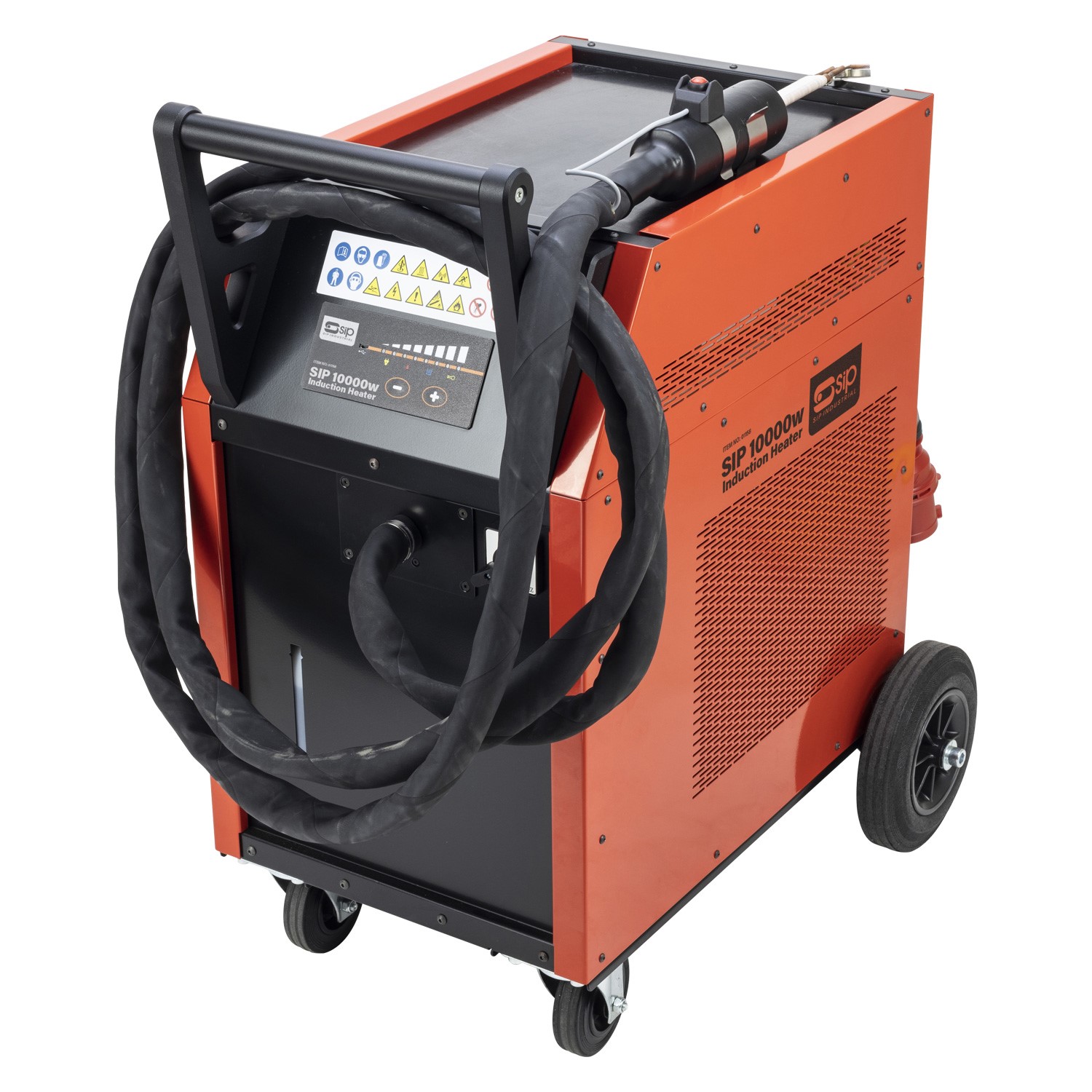

EASY-TO-USE DESIGN

Touchpad buttons adjust and 8-setting multi-level induction power display indicator.
Indicator LEDs show mains supply present, cooling enabled and heating status.

Options & Accessories:

ITEM NO.	DESCRIPTION
HY02-00958:	Coolant Liquid (3ltr)
HY02-00980:	Coolant Liquid (10ltr)

Technical Information

ITEM NO.	01158
Input Supply:	400v 3-PHASE
Induction Power:	10kW
Power Control:	Multi-Level
Induction Cable Length:	4mtr
Power Cable Length:	5mtr
Inverter Ventilation:	6x Cooling Fans
Liquid Cooling System:	Torch & Induction Cable
Inverter Frequency Range:	18kHz - 45kHz
Net Weight:	58.00kg
Gross Weight:	61.50kg
Product Dimensions:	700(H) x 400(W) x 760mm(D)
Packaged Dimensions:	860(H) x 590(W) x 790mm(D)

*Induction heating is the process of inducing heat in electrically conductive materials via an electromagnetic process.
