SIP 500kg Quick-Lift Transmission Jack

03690

Click on image to enlarge

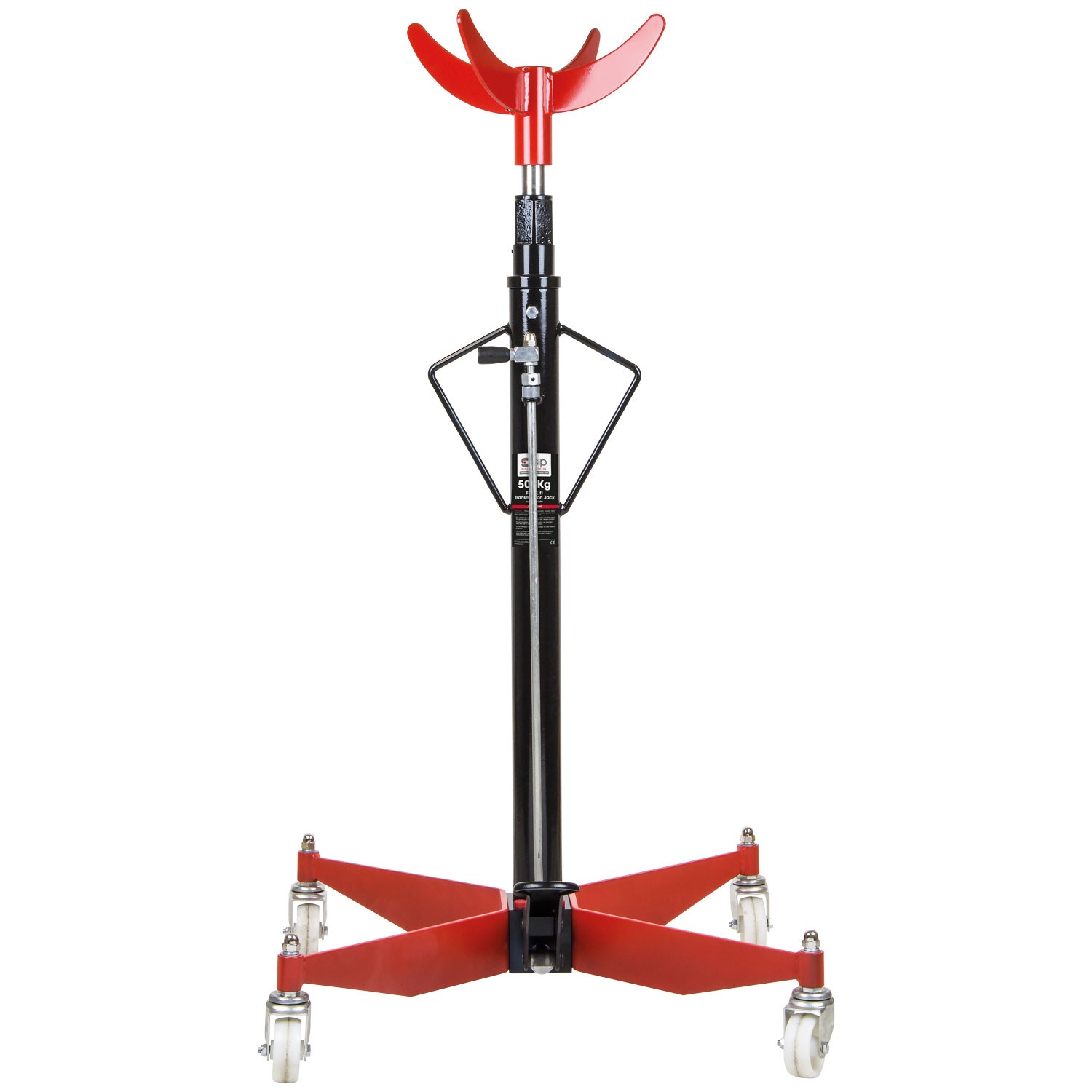

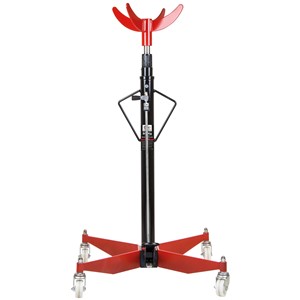

SIP 500kg Quick-Lift Transmission Jack

03690

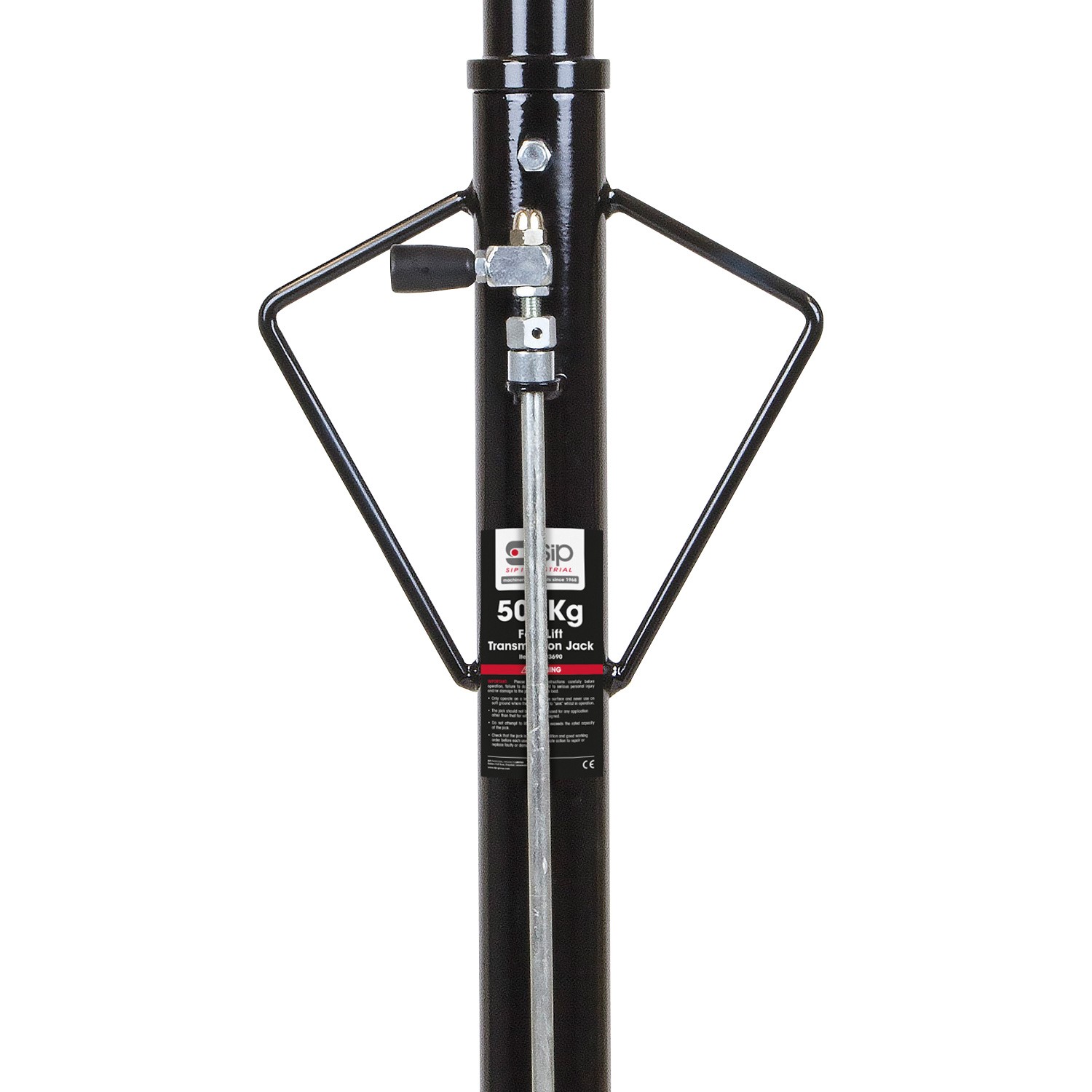

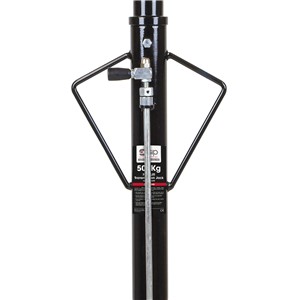

The SIP 500kg Quick-Lift Transmission Jack provides safe and efficient adjustment and lifting via an integrated Quick-Lift system, which substantially reduces the effort and strain of the operator by efficiently raising the saddle to the contact point.

This transmission jack is perfect for the installation or removal of transmissions and gearboxes in a variety of garage and workshop environments.

KEY FEATURES

1250mm to 2040mm lifting height range
Ideal for raising or lowering transmissions and gearboxes

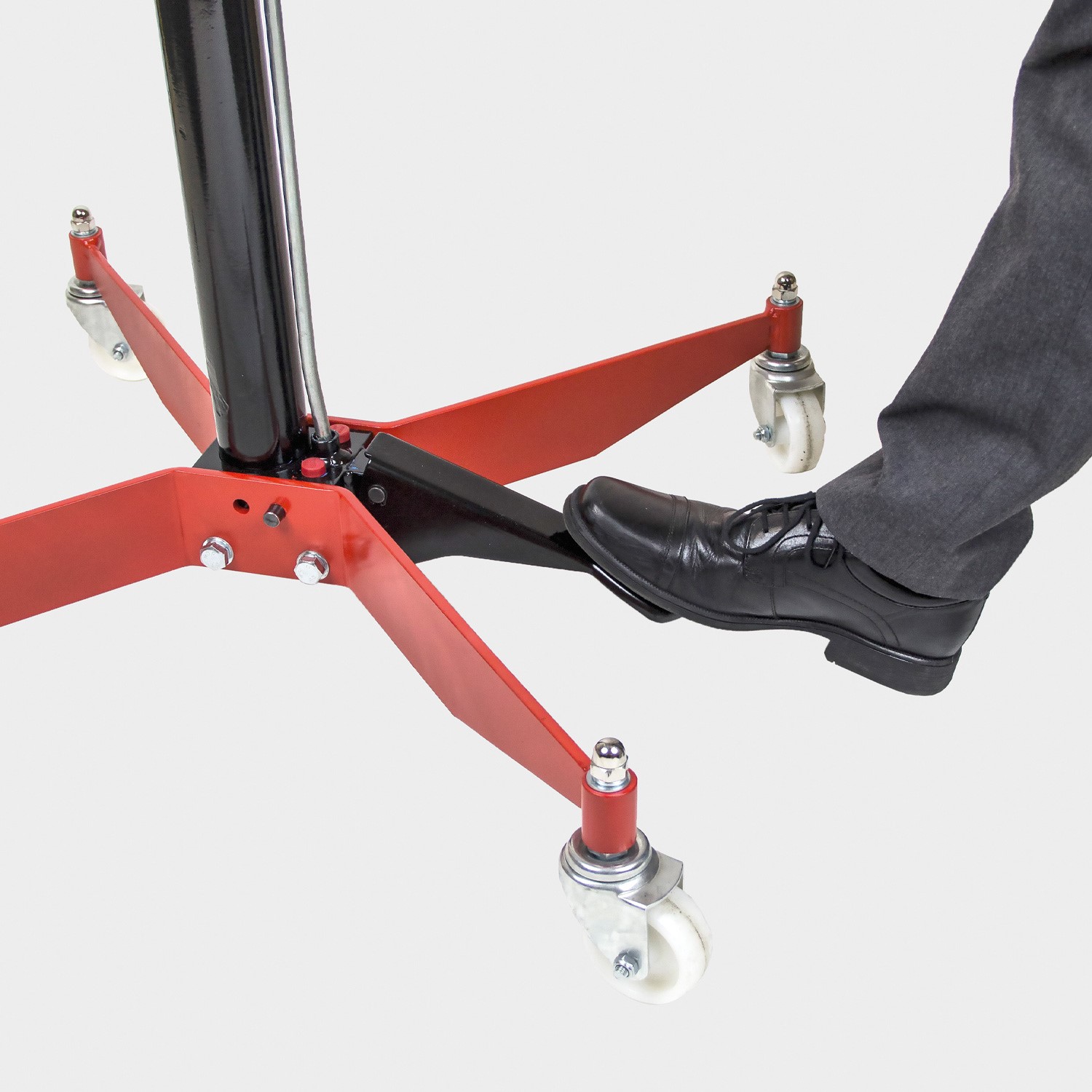

Quick-Lift system raises the contact saddle efficiently
Heavy-duty base with swivel castors for easy positioning
Large footprint for stability and even weight distribution

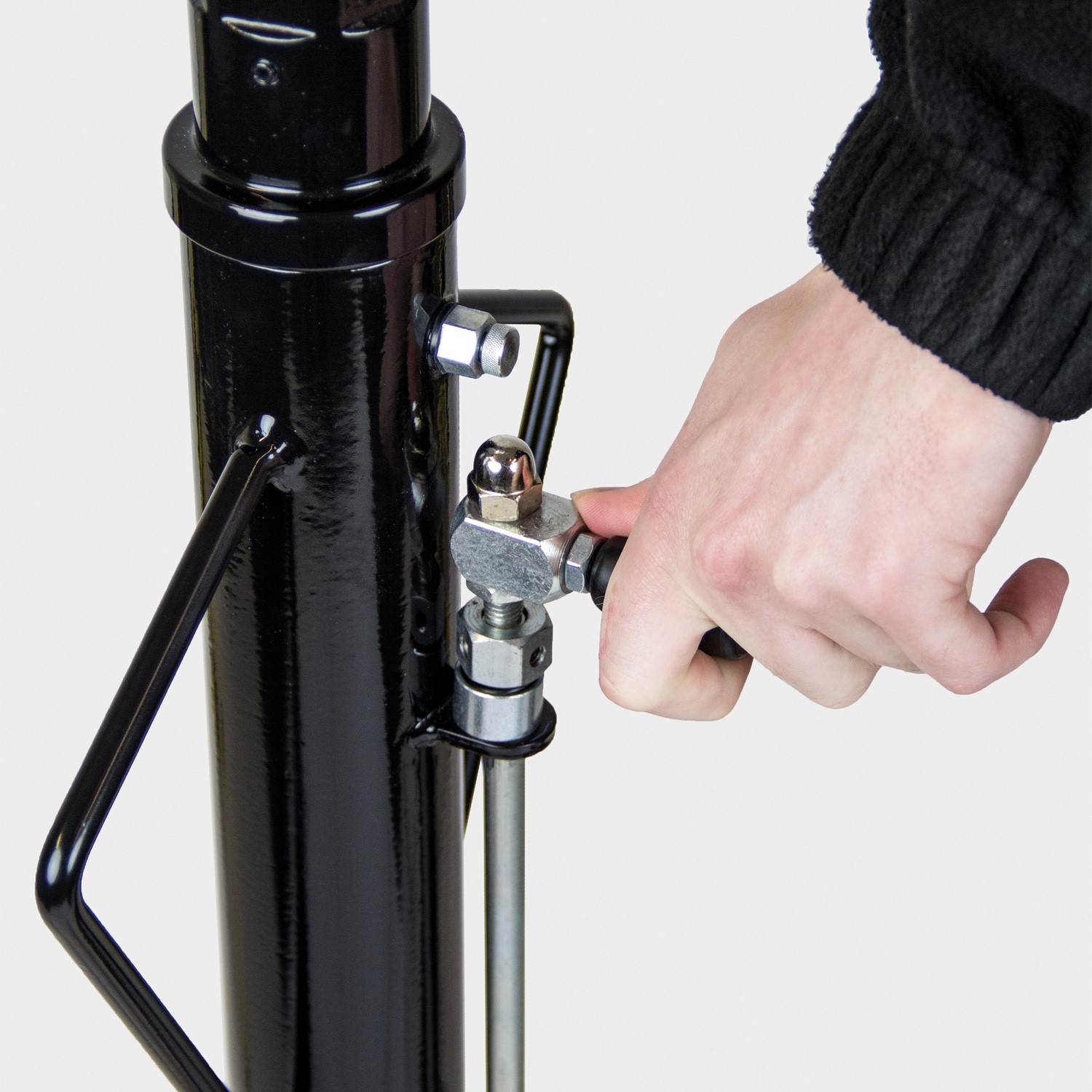

Integrated spring-loaded release valve

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP 500kg Quick-Lift Transmission Jack provides safe and efficient adjustment and lifting via an integrated Quick-Lift system, which substantially reduces the effort and strain of the operator by efficiently raising the saddle to the contact point.

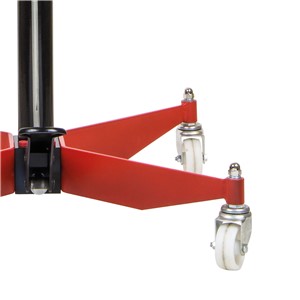

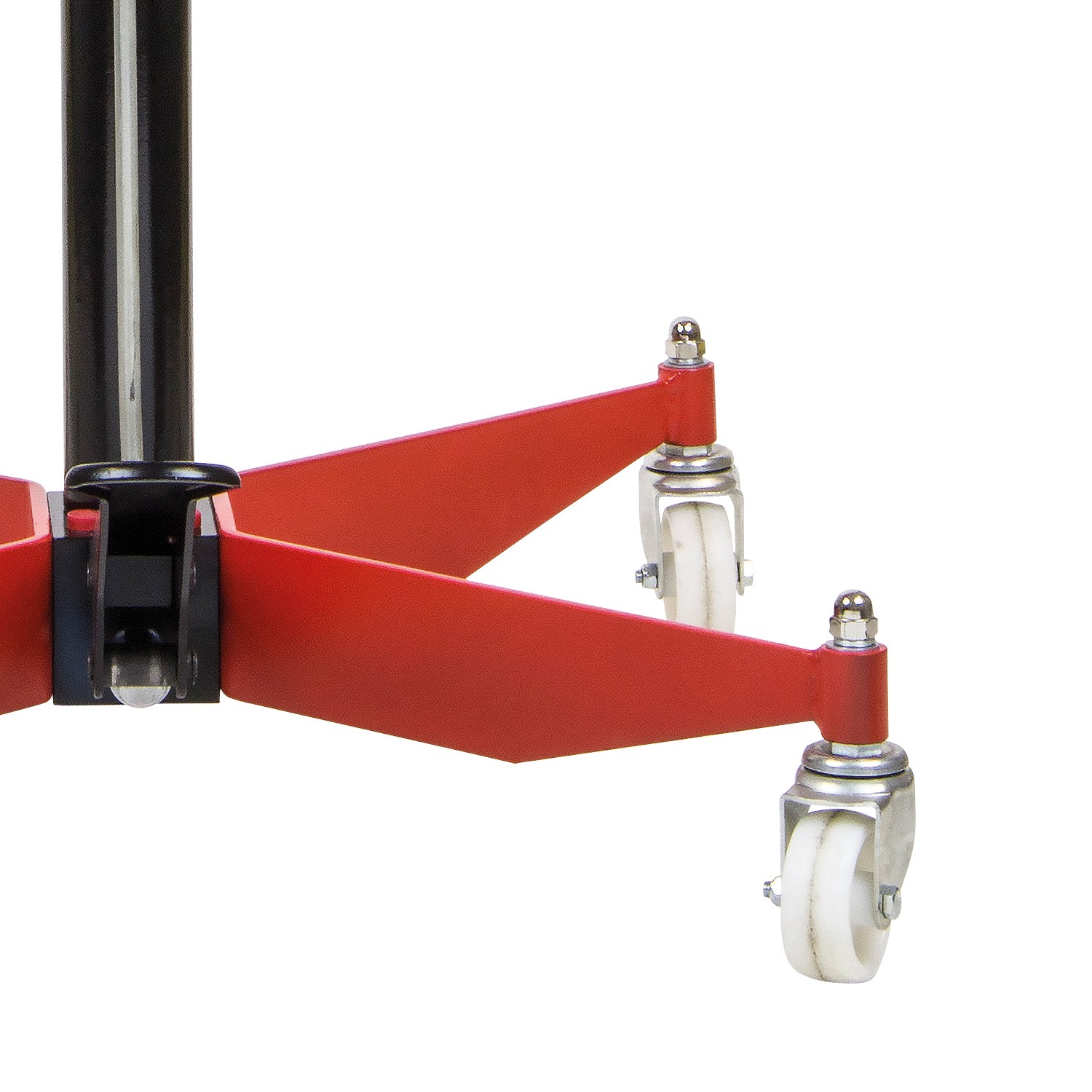

A large heavy-duty base with 4 legs helps to provide vital stability and helps distribute the weight evenly. These are mounted on 4 heavy-duty swivel castors to ensure that positioning the jack and manoeuvring it throughout a garage or workshop is simple.

This transmission jack is perfect for the installation or removal of transmissions, gearboxes and assemblies in a variety of garage and workshop environments.

1250mm to 2040mm lifting height range
Ideal for raising or lowering transmissions and gearboxes
Quick-Lift system raises the contact saddle efficiently
Heavy-duty base with swivel castors for easy positioning
Large footprint for stability and even weight distribution
Integrated spring-loaded release valve
SIP 2-Year Standard Silver Warranty

Product Video

Technical Information

ITEM NO.	03690
Weight Capacity:	500kg
Min. Lifting Height:	1250mm
Max. Lifting Height:	2040mm
Quick-Lift System:	Yes
Net Weight:	32.30kg
Gross Weight:	35.50kg
Product Dimensions:
Packaged Dimensions:	320(H) x 1080(W) x 230mm(D)
