NARDI EXTREME 2TN 2HP 25ltr Compressor

EXT2TN25204

Click on image to enlarge

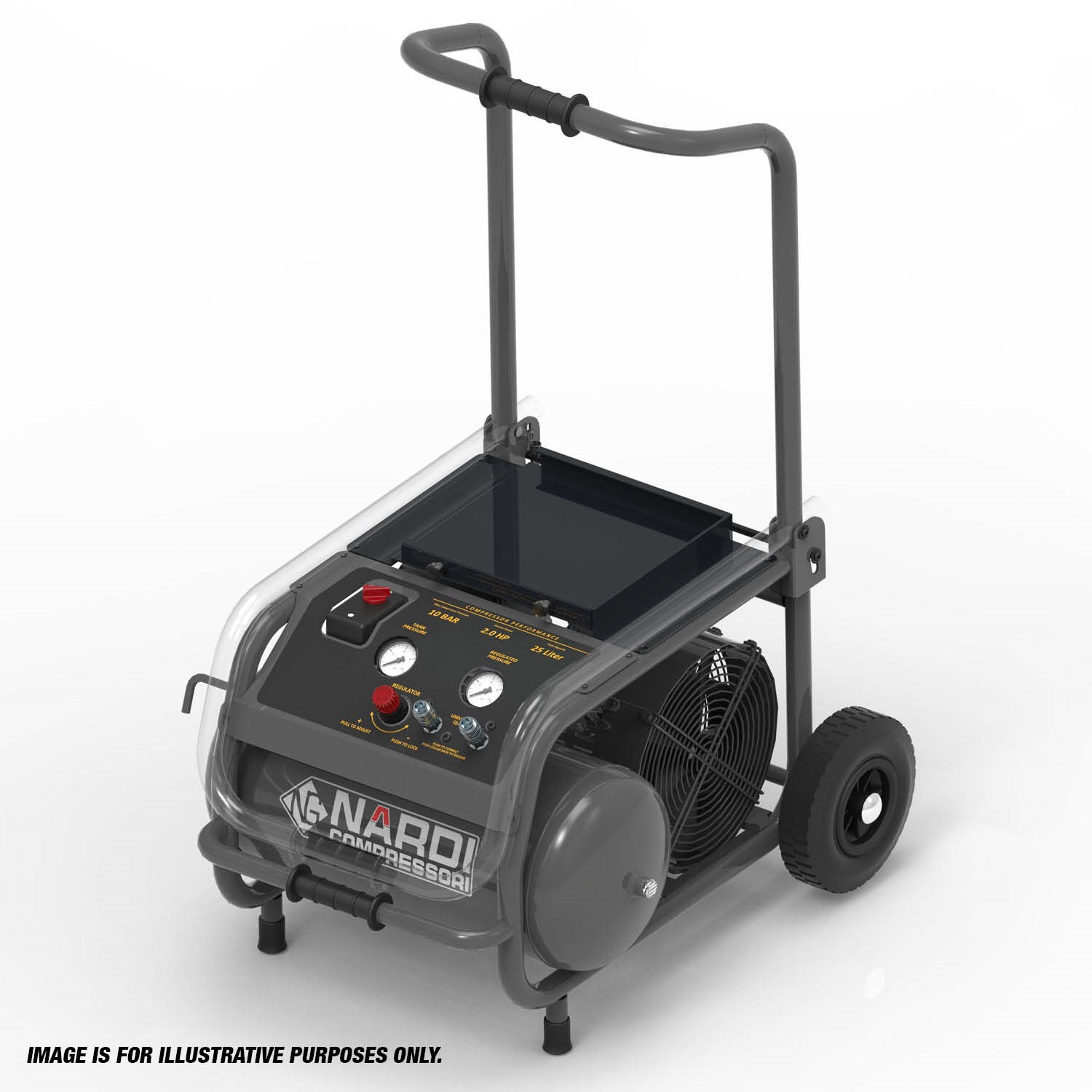

NARDI EXTREME 2TN 2HP 25ltr Compressor

EXT2TN25204

The NARDI EXTREME 2TN 2.00HP 25ltr 4-POLE Direct Drive Compressor is designed with forced air cooling and a high-quality oil-free pump manufactured with robust technopolymer piston rings that offers longer life and low maintenance performance.

Ideal for low and medium pressure and flow applications.

KEY FEATURES

Wheel-mounted frame design with easy-fold handle
V-Twin cylinder; direct drive crankshaft via motor shaft
High-quality oil-free pump for long life and low maintenance
Air intake particle diffusion for reduced air contamination
Fitted tool tray keeps workspaces tidy and organised

SIP 3-Year Standard Silver Warranty | Find out more

Full Specification

The NARDI EXTREME 2TN 2.00HP 25ltr 4-POLE Direct Drive Compressor is designed with forced air cooling and a high-quality oil-free pump manufactured with robust technopolymer piston rings that offers longer life and low maintenance performance.

Ideal for low and medium pressure and flow applications.

Browse NARDI Compressors for more specialist compressor solutions.

Powerful 4-pole brushless induction motor
Wheel-mounted frame design with easy-fold handle
V-Twin cylinder; direct drive crankshaft via motor shaft
High-quality pump designed with robust technopolymer piston rings providing oil-free operation for long life and low maintenance performance
Concentric big end bearings for reduced vibration and increased pump life
Unique crankcase air intake particle diffusion reduces air contamination, ensuring longer life of the valve plate
Fan-shaped stainless steel valves provide long life and durability
Forced air cooling for an extended runtime and performance
Pressure cut-off switch and adjustable air regulator
SIP 3-Year Standard Silver Warranty
Manufactured in Italy

Technical Information

ITEM NO.	EXT2TN25204
Input Supply:	230v (13A)
Motor Power:	1.50kW (2.00hp) 4-POLE 1400rpm
Receiver Size:	25ltr
Piston Displacement:	12.40CFM (350ltr/min)
Free Air Delivery (FAD):	8.68CFM (248ltr/min)
Max. Air Pressure:	145psi (10bar)
No. of Cylinders:	2 cylinders
Noise Level:	73dB(A)
Net Weight:	49.00kg
Gross Weight:	55.00kg
Product Dimensions:	480(H) x 650(W) x 670mm(D)
Packaged Dimensions:	550(H) x 700(W) x 700mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE

Warranty Information

COMES WITH A 3 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL NARDI MACHINES!

We are extremely confident that our products will offer exceptional durability, reliability, and heavy-duty performance, and to back that up we are now offering the SIP 3-Year Standard Silver Warranty across all* NARDI machines. On top of this, we offer a service-based Gold Warranty that extends the duration of your warranty for a further 24 months if purchased.

In addition, all SIP Premium Partner Brands now offer comprehensive warranties of their own!

FIND OUT MORE

*excludes accessories and consumables.

No extended details available.
