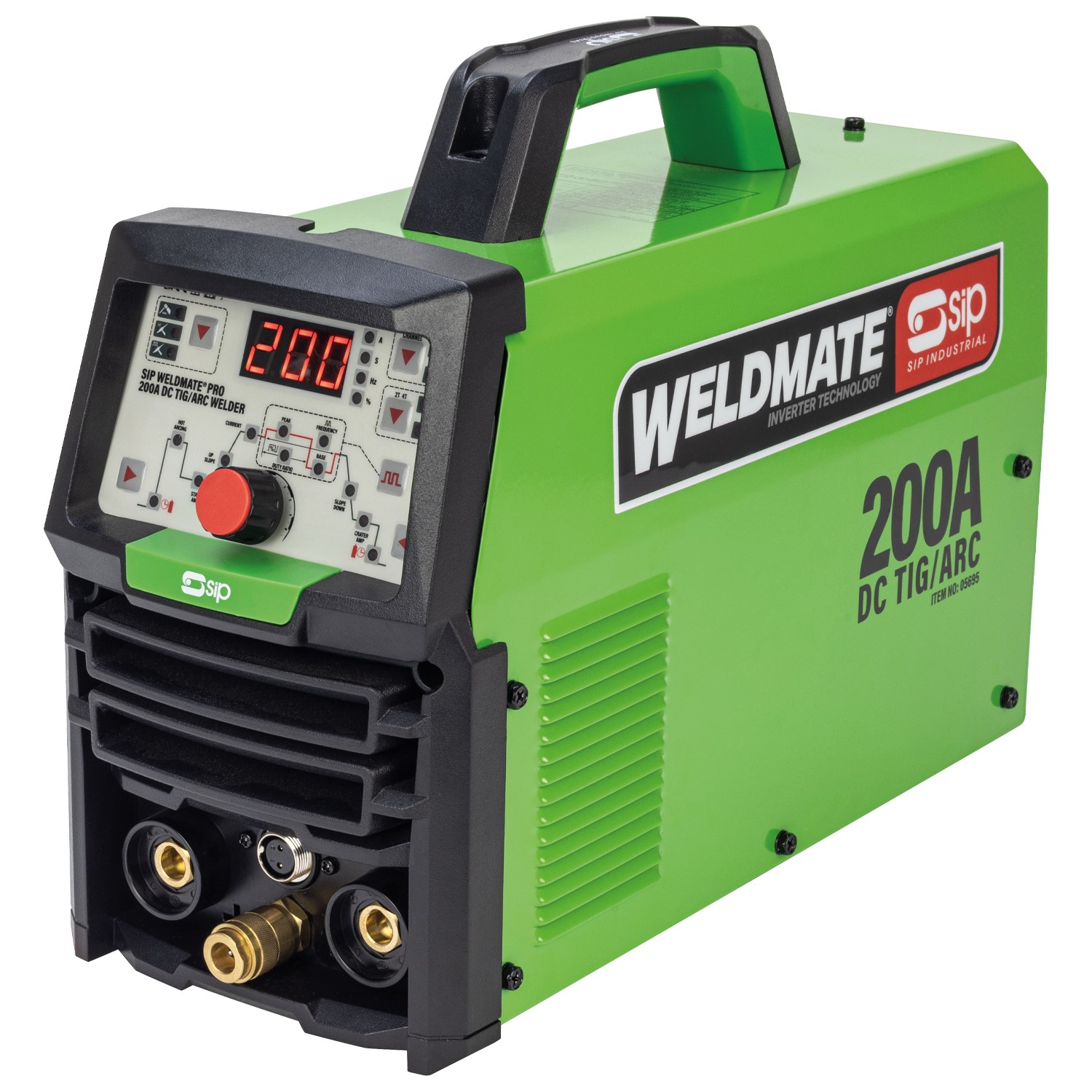

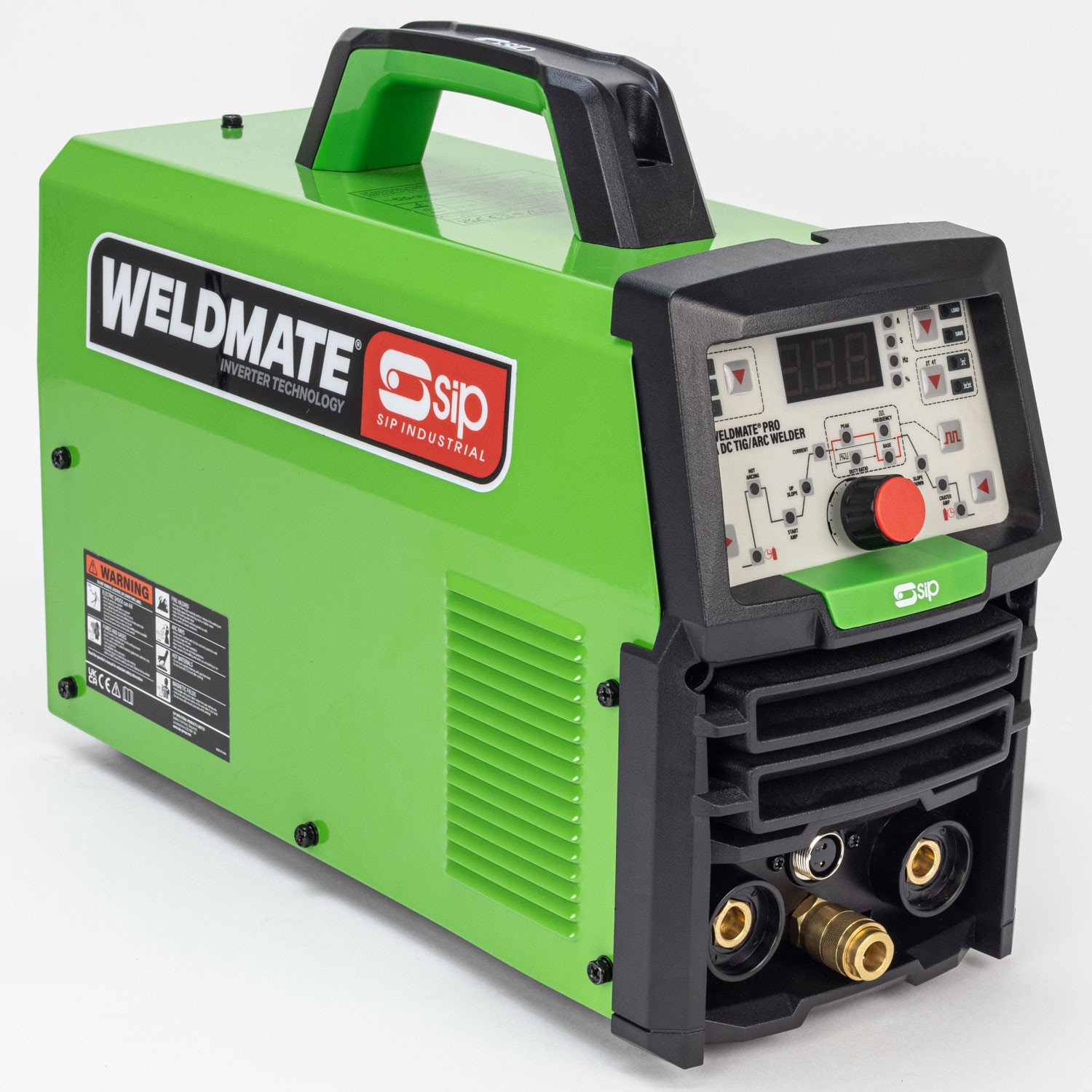

DUAL PROCESS TIG/ARC INVERTER WELDER FOR GREATER APPLICATION FLEXIBILITY AT HIGH DUTY CYCLES

• Duty cycle 20°C: 200A @ 30% (TIG DC) / 160A @ 30% (MMA).

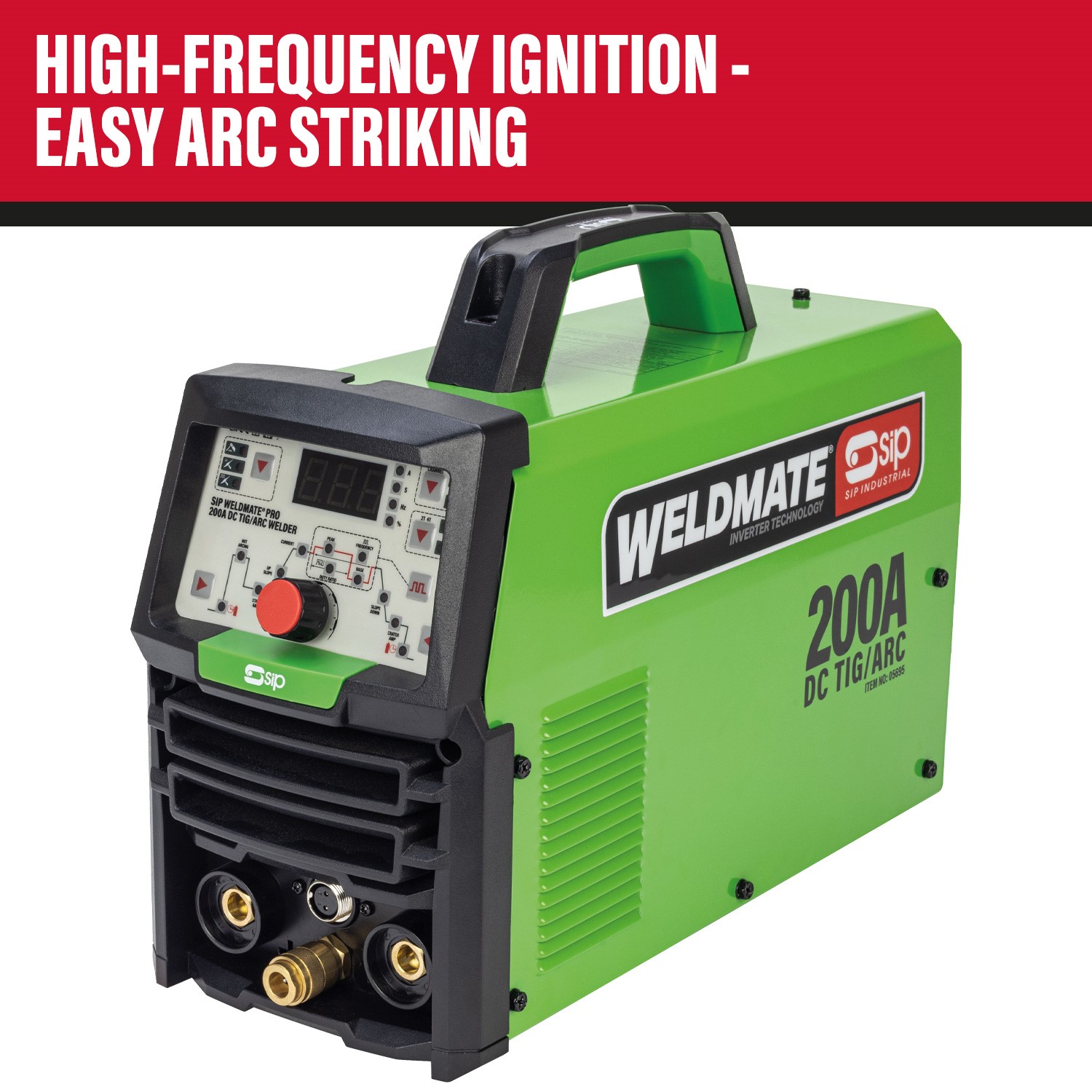

HIGH FREQUENCY START-UP FOR EASY ARC STRIKING, ENSURING CLEANER & HIGHER QUALITY WELDS BY ELIMINATING CONTACT BETWEEN THE TUNGSTEN ELECTRODE & WORKPIECE WHEN INTIATING THE ARC

• Offers a superior arc striking method compared to 'lift' or 'scratch' arc initiation techniques.
• Provides a consistent and reliable arc initiation, regardless of skill level or welding conditions, which contributes to improved weld quality and efficiency.
• Ideal for welding thinner materials where precise welding control is crucial.

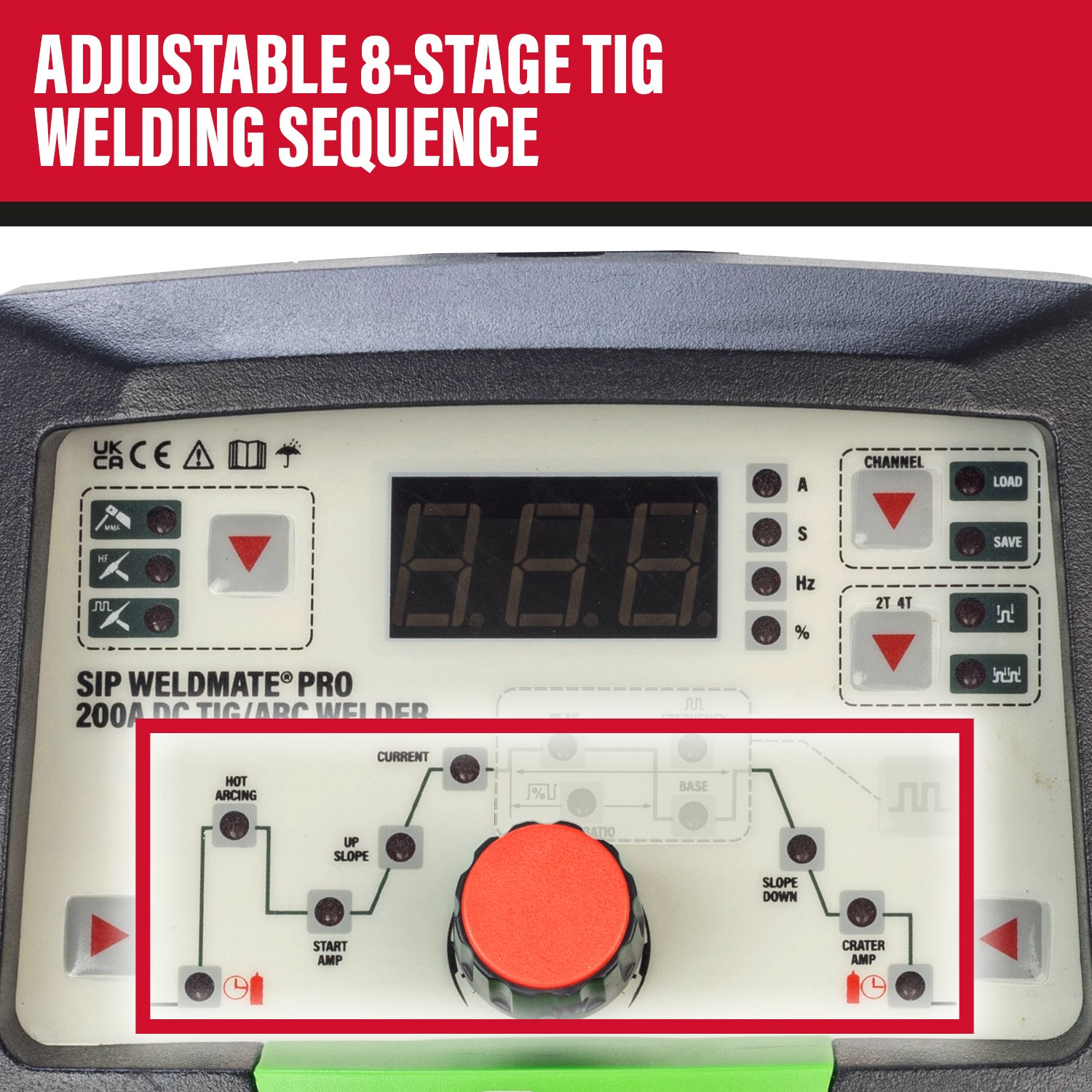

ADJUSTABLE 8-STAGE TIG WELDING SEQUENCE FOR ENHANCED CUSTOMISATION & CONTROL OF THE WELDING CURRENT OUTPUT & WELDING PARAMETERS, ENSURING A CLEANER & HIGHER QUALITY WELD WITH REDUCED SPATTER

• Includes 'Pre' and 'Post Gas' timer settings to protect against oxidation during welding process, which could leave the weld contaminated and brittle. This also protects the tungsten electrode at the beginning and end of each weld, minimising the risk of tungsten contamination and maximising its longevity.
• Slope-up and slope-down timer control gradually increases and decreases the welding current output at the beginning and end of each weld. This additional control helps to prevent weld defects such as warping and cracking to ensure a smoother and more consistent weld.

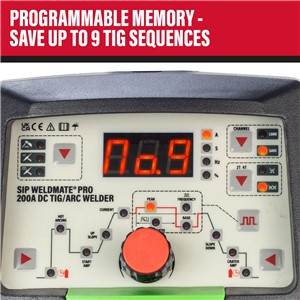

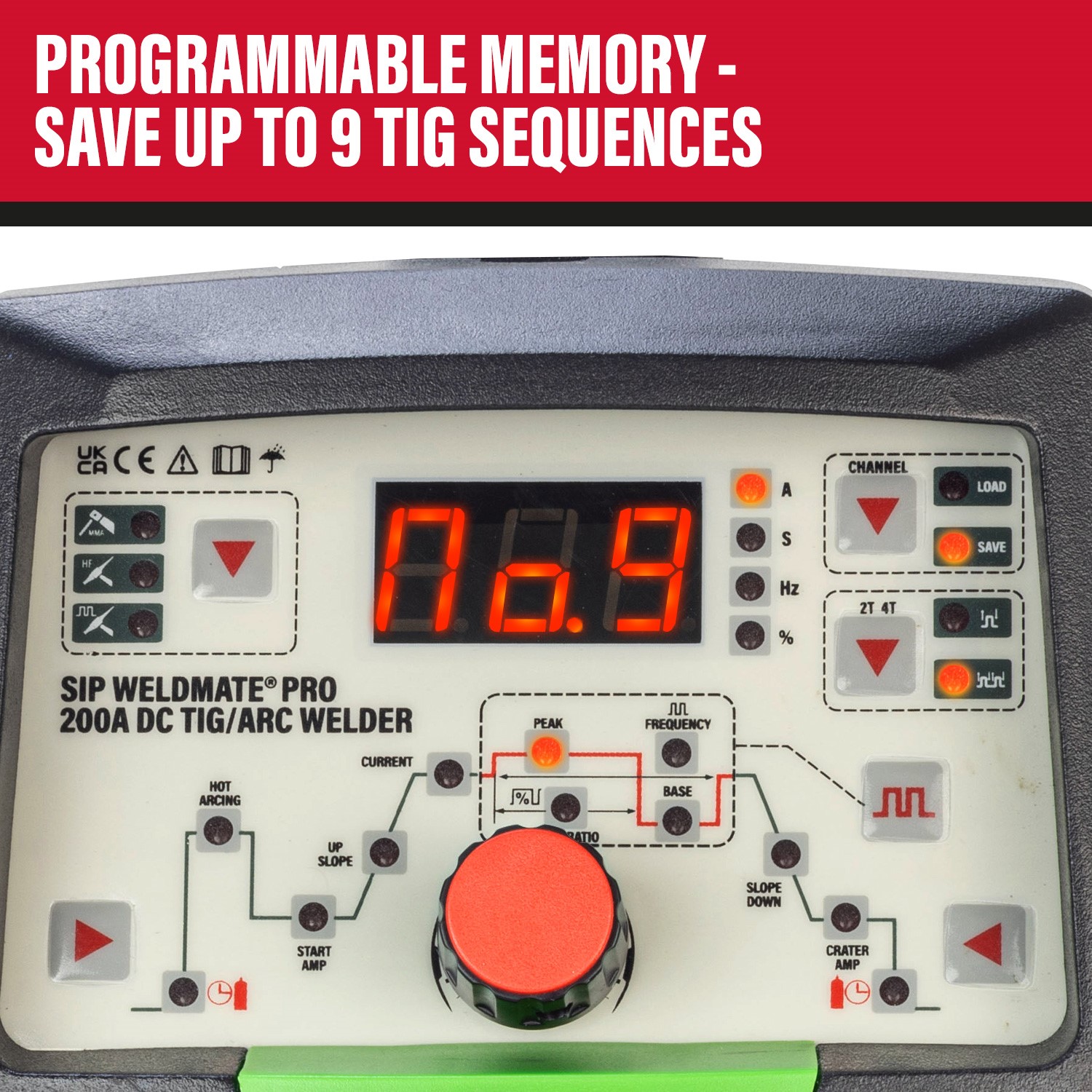

• A programmable memory saves up to 9 TIG welding sequences for easy recall of specific welding jobs.

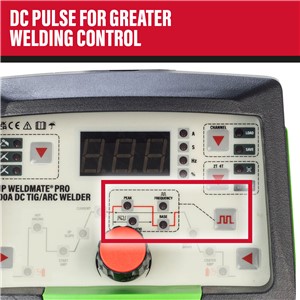

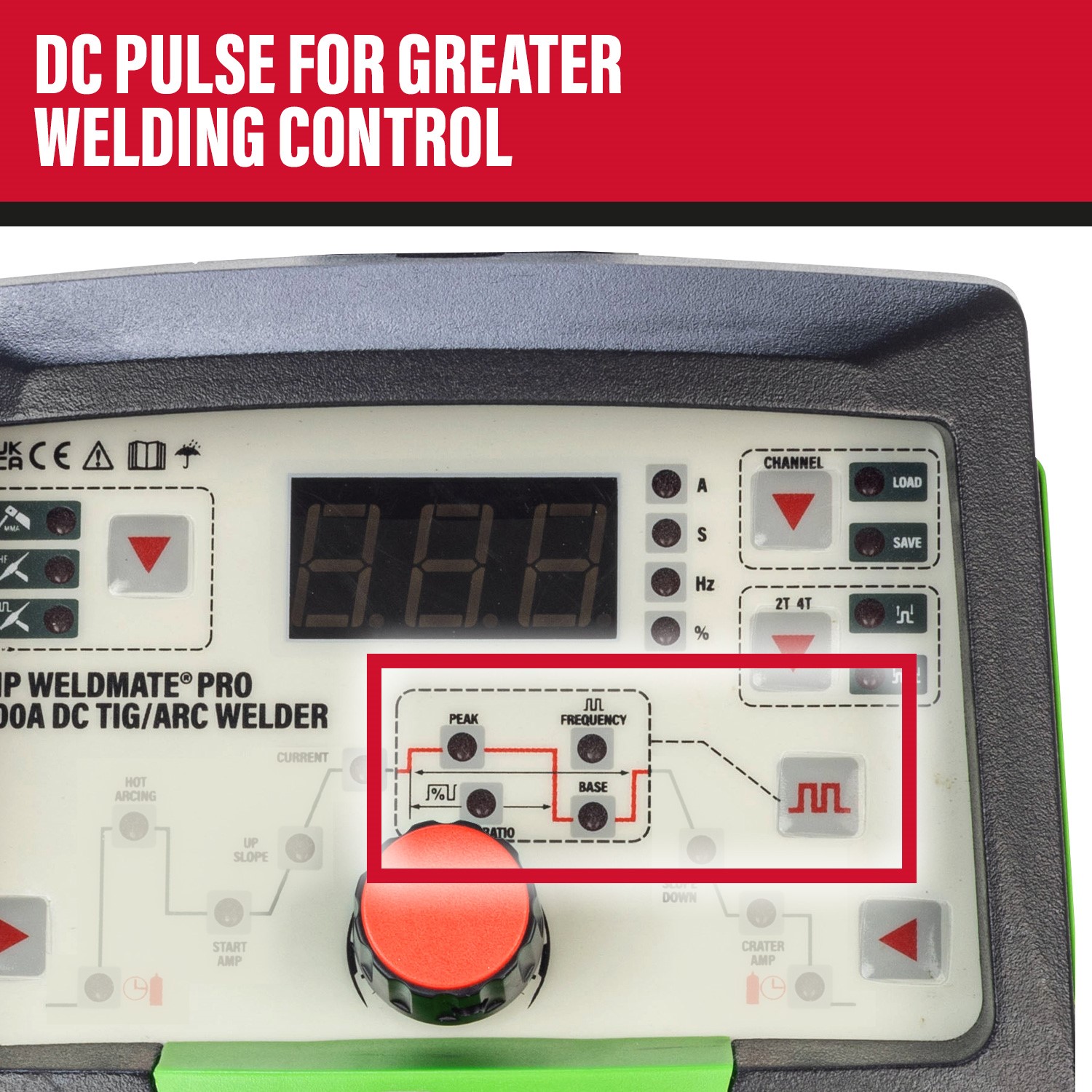

EASY-TO-SET PULSE TIG PARAMETERS OFFER PRECISE CONTROL OF THE WELDING ARC FREQUENCY & WELDING CURRENT OUTPUT FOR GREATER VERSATILITY IN CHALLENGING PROFESSIONAL APPLICATIONS

• Adjusting the 'peak' and 'base' welding currents varies the amount of heat going into the workpiece, while 'Pulse Frequency' determines the number of pulse cycles applied to each weld. 'Pulse Duty' controls the ratio each cycle spends between peak and base welding currents.
• These interrelated settings vary the frequency and amount of heat applied to each weld, helping to achieve optimal penetration and minimal distortion of the welding material. This also enables greater control of the weld bead for a smoother appearance and finish.

AN INFINITELY VARIABLE DIAL OFFERS SMOOTHER STEPLESS OUTPUT ADJUSTMENT FOR HIGHER QUALITY & EASY TO CONTROL WELDING

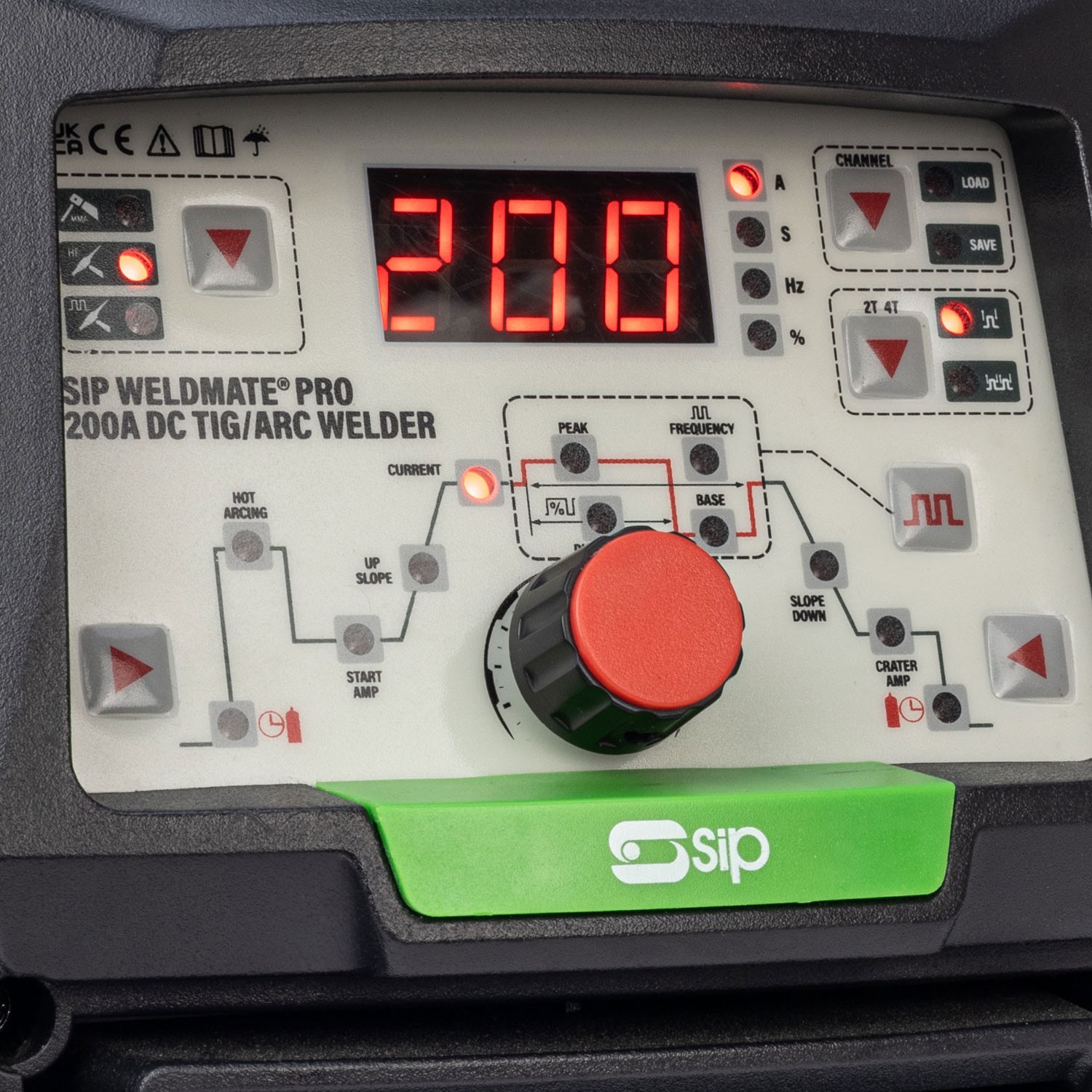

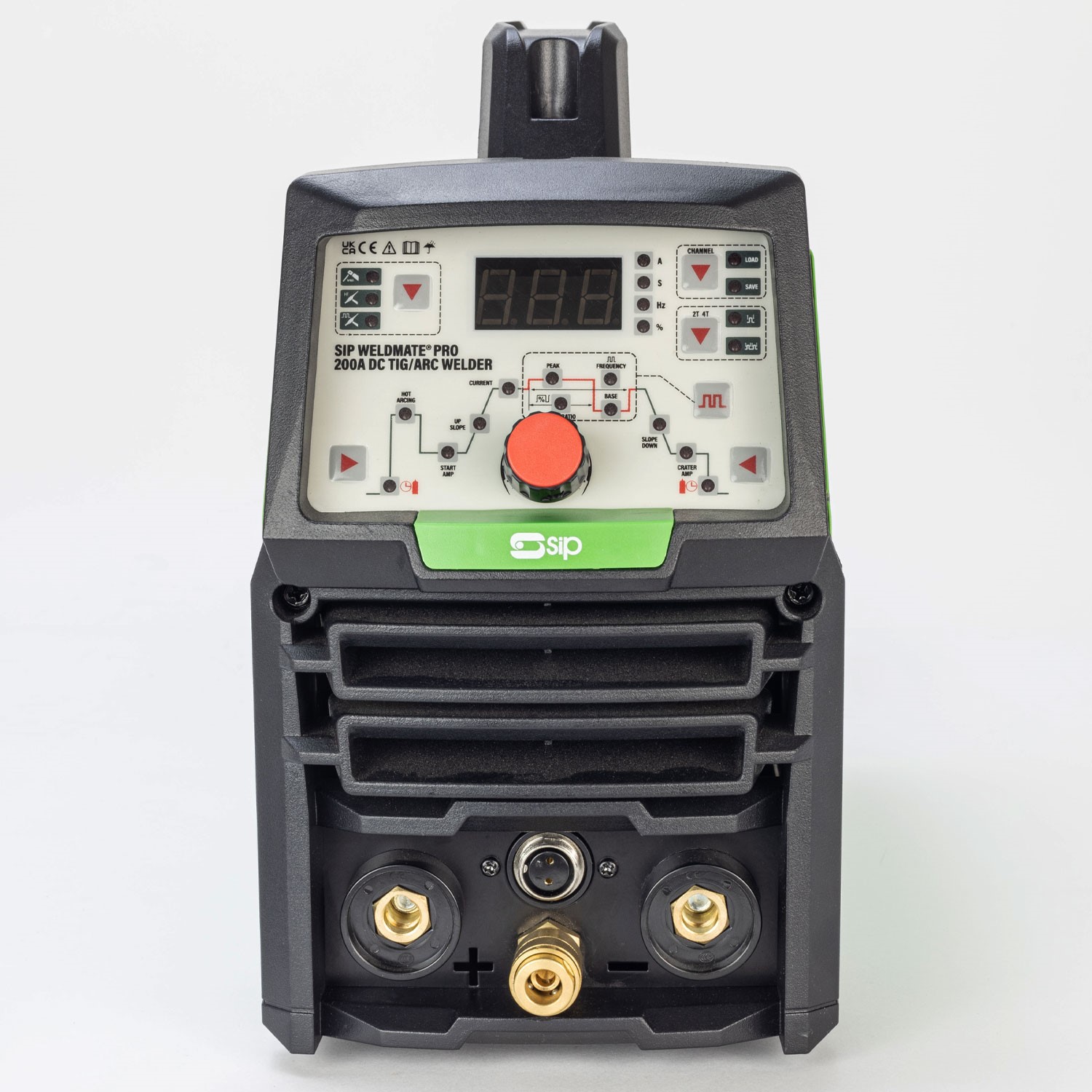

• An intuitive control panel with LED display makes it easy to set the welding output and setting the welding functions.

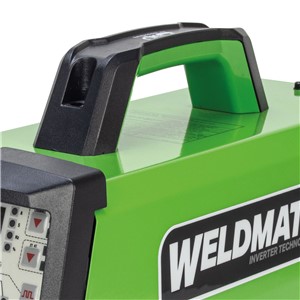

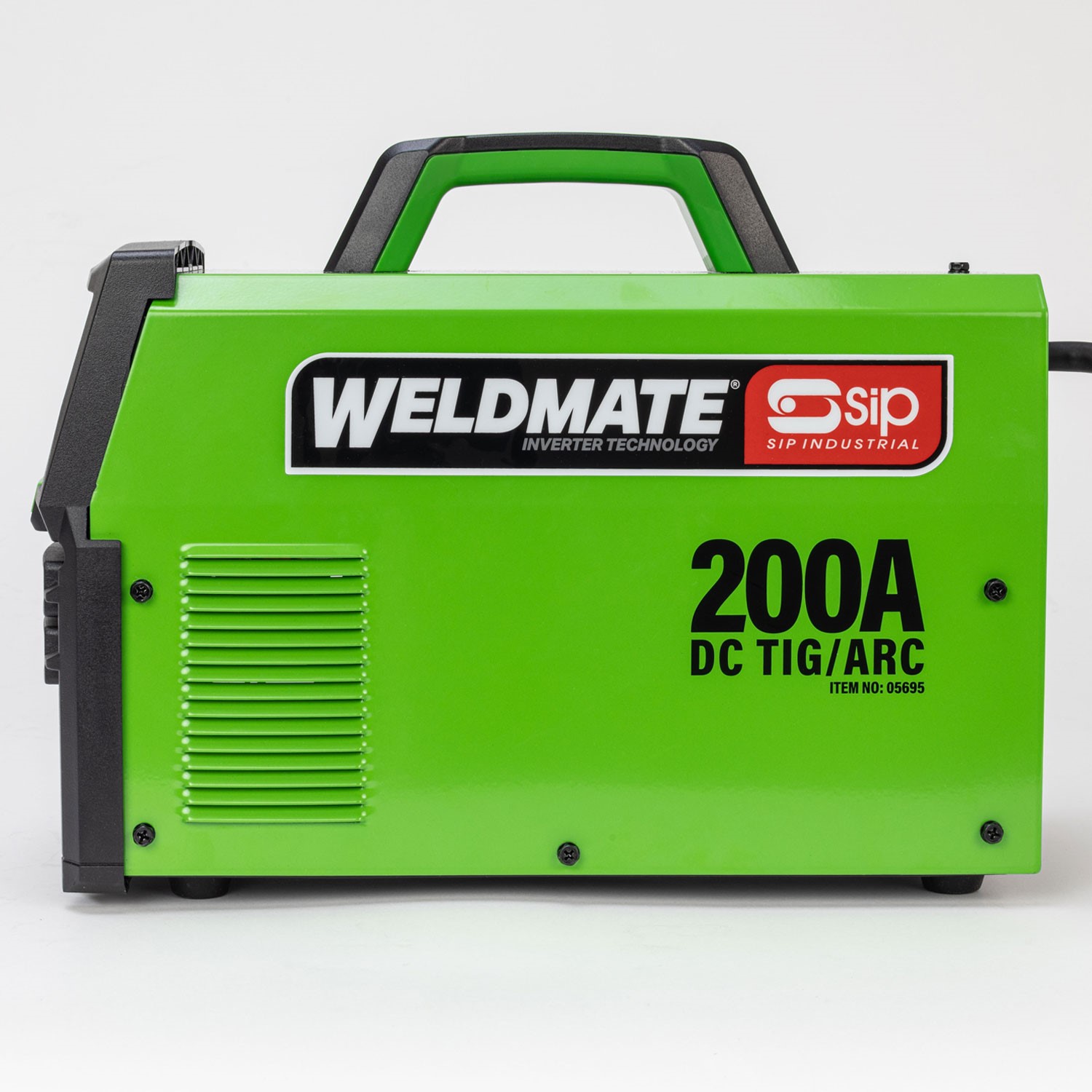

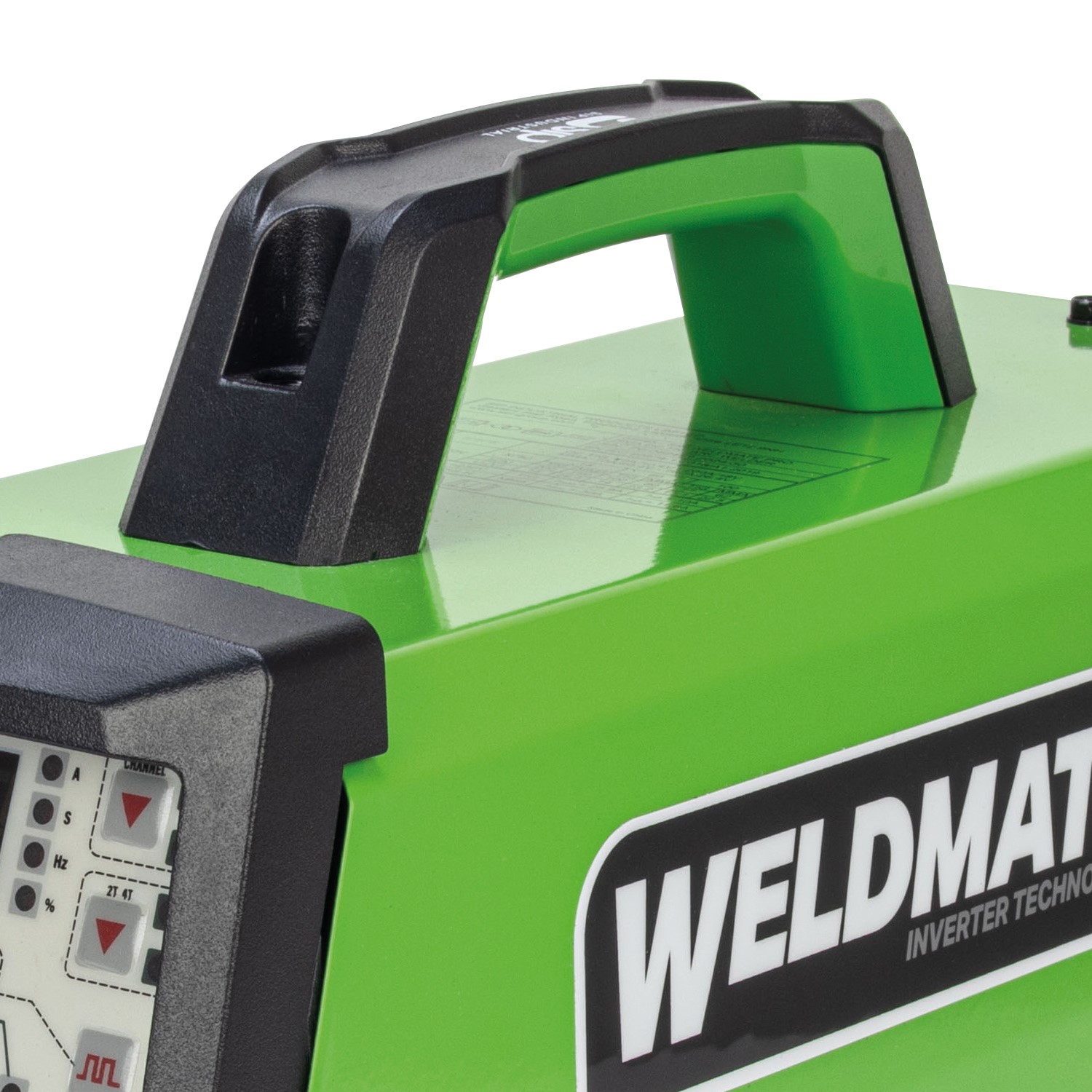

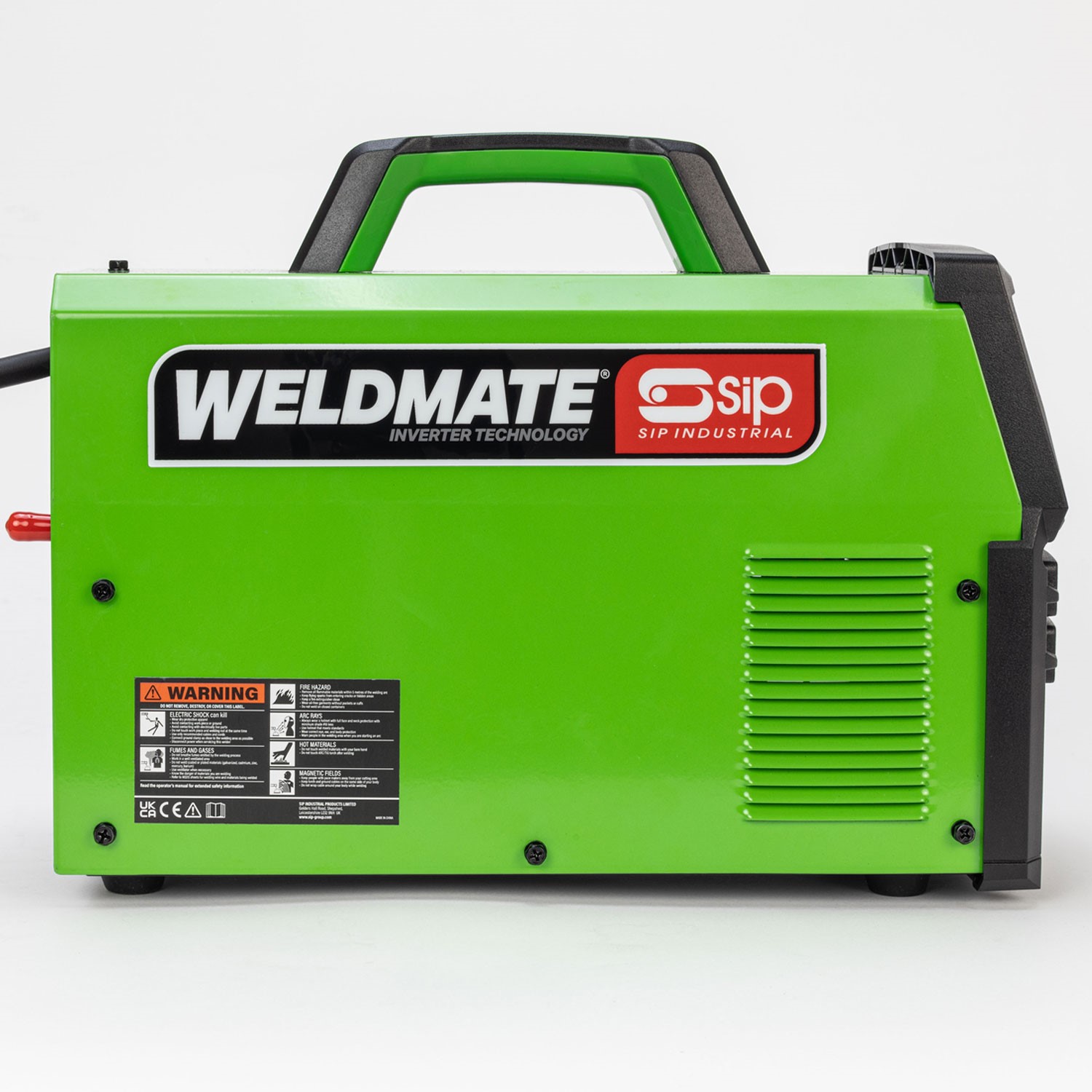

METAL CASING WITH HEAVY-DUTY CARRY HANDLE & HIGH-QUALITY FINISH RESISTANT TO WORK AREA DAMAGE

• The compact and lightweight design ensures easy work area movement.
